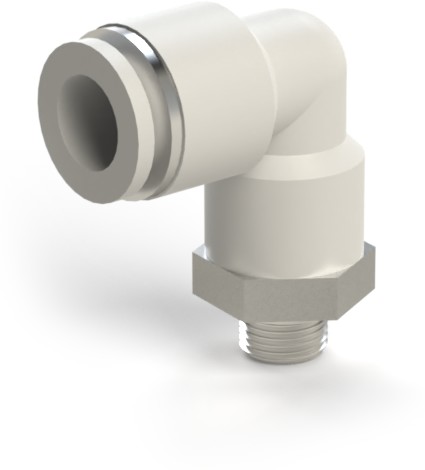

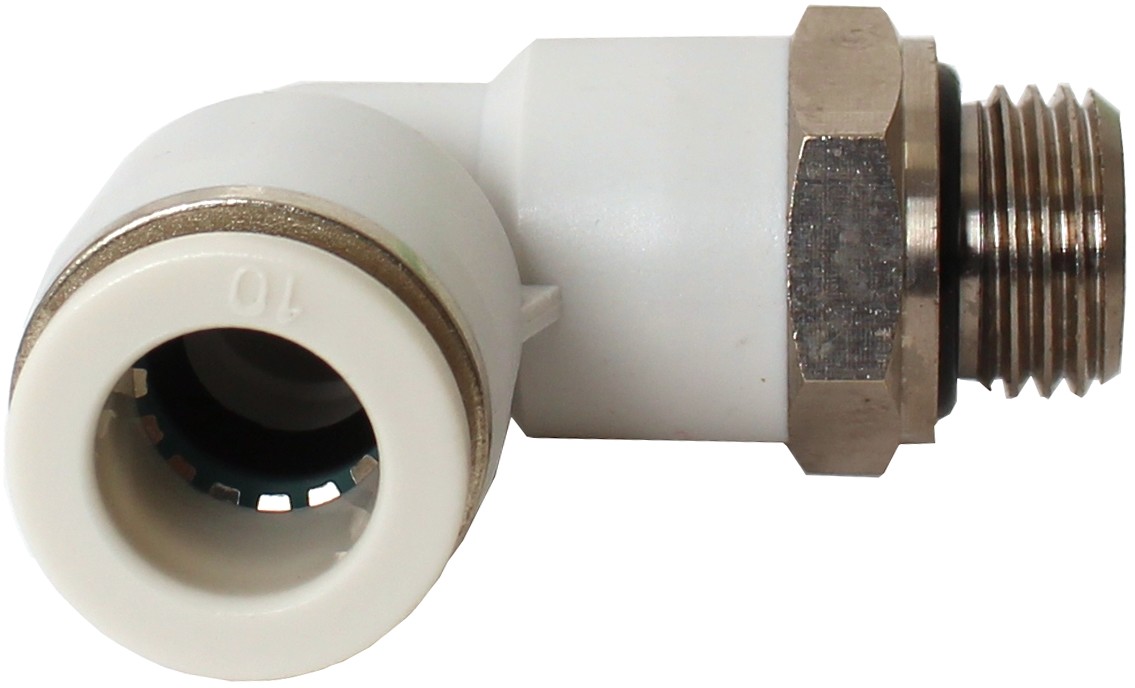

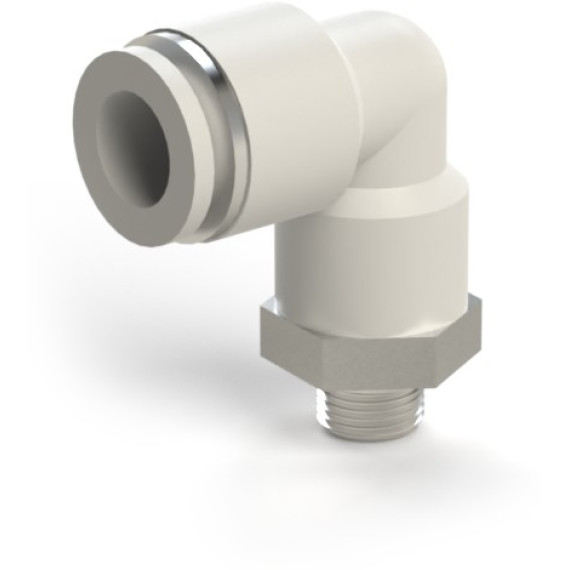

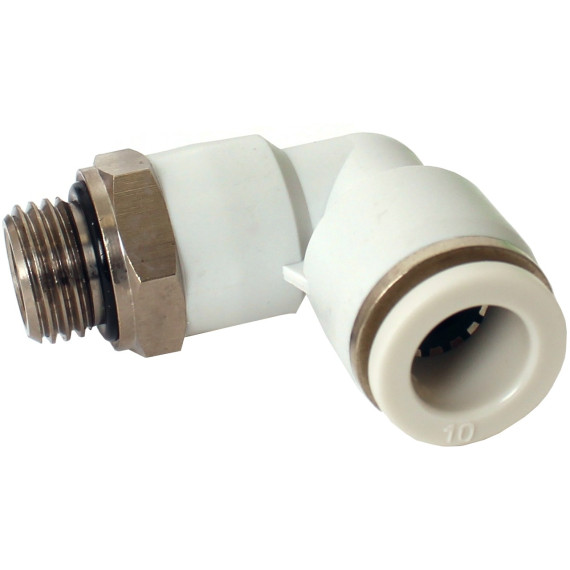

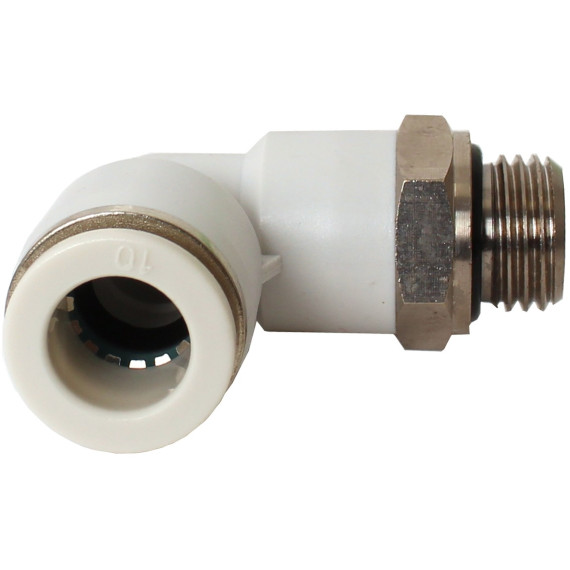

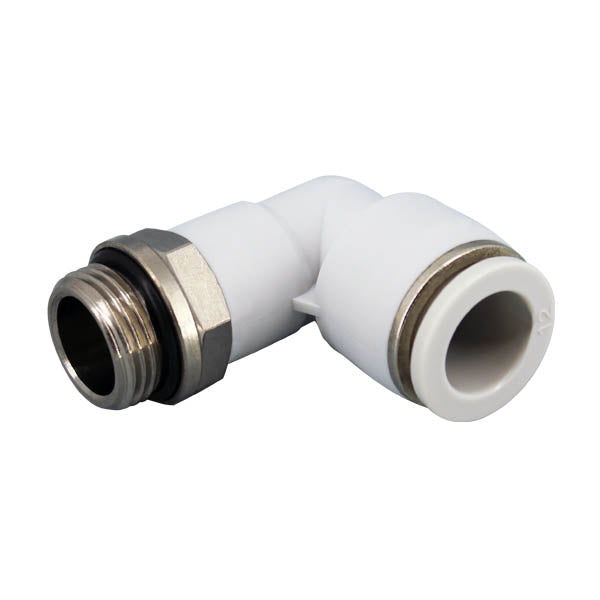

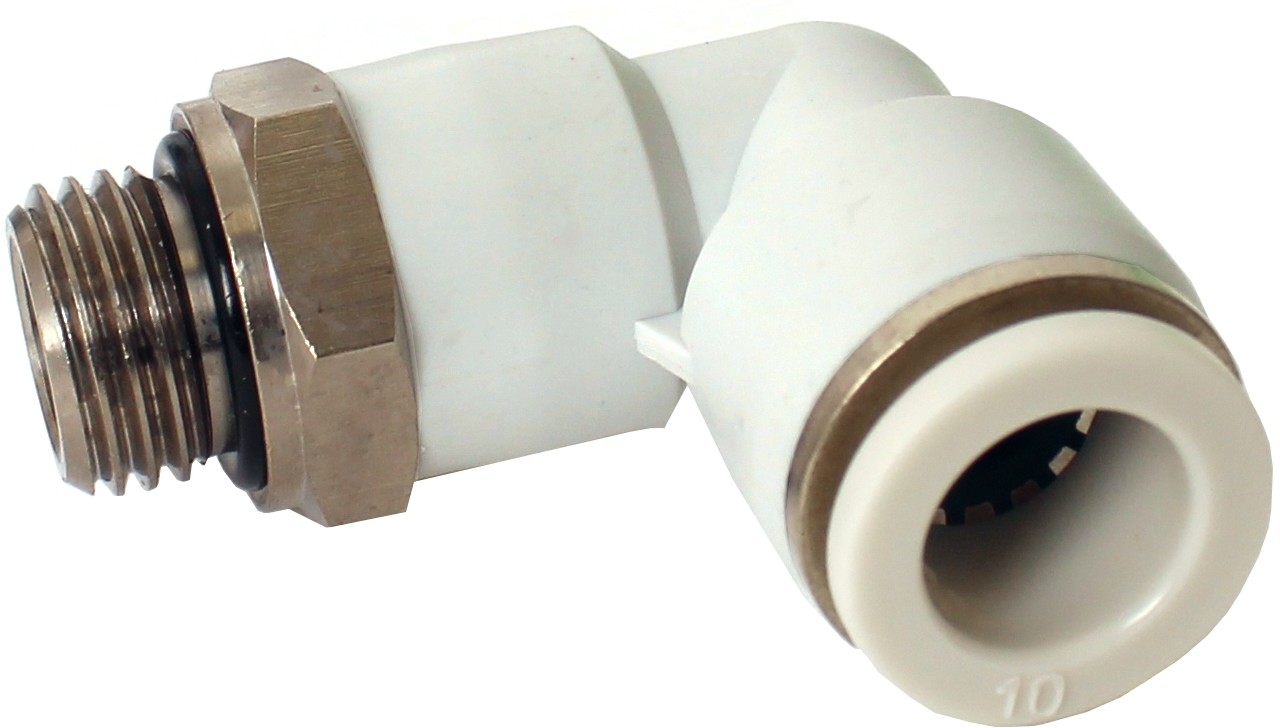

Name: SF-EPL series plastic collet fitting angle connector with external thread
Brand: Specialist
SKU: SF-EPL 4-M5
Price: 42.90 UAH
Availability: InStock

All about the product
Technical specifications
Reviews (0)
Related Products
Similar Products

Technical specifications

Tube O.D.

4 мм, 6 мм, 8 мм, 10 мм, 12 мм, 16 мм

Connection type

Collet fitting, With external thread

Thread

G 1/2", G 1/4", G 1/8", G 3/8", M5

Material

Plastic, Bronze

Body material

Plastic

Variations

Union

Fitting type

Angular 90°

Description

Plastic push-in fitting series SF-EPL is a plastic elbow connector at a 90° angle. It has a male thread, either metric M5 or cylindrical G1/8″, G1/4″, G3/8″, and G1/2″ on one side, and a quick-connect socket for pneumatic polyamide, polyurethane, or polyethylene tube with an outer diameter of 4, 6, 8, 10, 12, or 16 mm.

The body and grip of the SF-EPL L-shaped elbow connector are made of engineering plastic in white or light grey, the threaded insert is made of nickel-plated bronze, and the tube and thread have O-rings made of NBR rubber. Therefore, this plastic fitting can work not only on pneumatic lines. It can also be used for transporting water, non-aggressive gases, and liquid fluids to which NBR is resistant.

When used for compressed air, the L-shaped connector has a working pressure of up to 10 bar (1 MPa) and can withstand temperatures from minus 10 to plus 60° C. These parameters may differ when used with other working mediums.

Advantages of SF-EPL

Elbow plastic fittings series SF-EPL are of higher quality compared to another series — SF-IPL, due to having better plastic density and a heavier weight with the same dimensions;
The push-in fitting typology is one of the best varieties of quick-connect fittings, as it does NOT deform the end of the tube, allowing it to be reused multiple times;
Using quick-connect fittings saves time on equipment installation and maintenance.
