Solenoid valve 2/2 normally closed with thread G 1″ (inch) series SV-ZS11-ES-22NC-25

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Solenoid valve 2/2 normally closed with thread G 1″ (inch) series SV-ZS11-ES-22NC-25

Name: Solenoid valve 2/2 normally closed with thread G 1″ (inch) series SV-ZS11-ES-22NC-25
Brand: Specialist
SKU: SV-ZS11-ES-22NC-25-DC24V
Price: 2937.48 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC24V

Thread size

G 1

Model

Manufacturer

Specialist

from 2 937,48 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SV-ZS11-ES-22NC-25-DC24V

Solenoid valve 2/2 normally closed with thread G 1″ (inch) series SV-ZS11-ES-22NC-25

Power Voltage=DC24V Thread size=G 1

SV-ZS11-ES-22NC-25-DC24V

2 937,48 UAH

In Stock

SV-ZS11-ES-22NC-25-AC220V

Solenoid valve 2/2 normally closed with thread G 1″ (inch) series SV-ZS11-ES-22NC-25

Power Voltage=AC220V Thread size=G 1

SV-ZS11-ES-22NC-25-AC220V

2 937,48 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Coil voltage

AC220V, DC24V

Nominal diameter

TWO 25

Тип контролю

Electromagnetic

Description

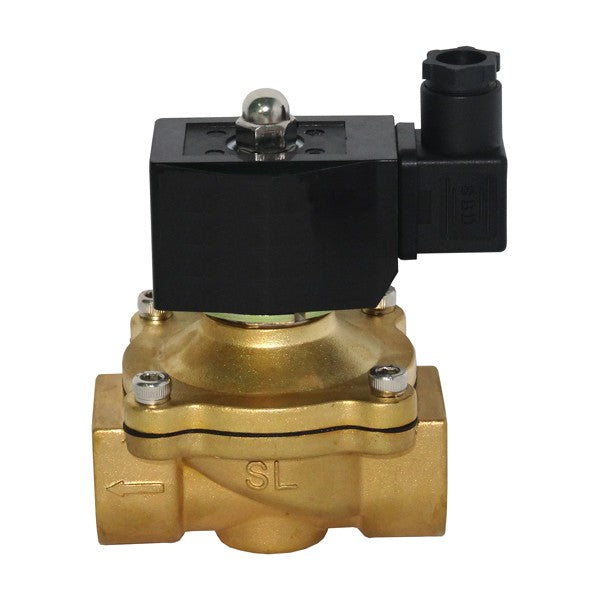

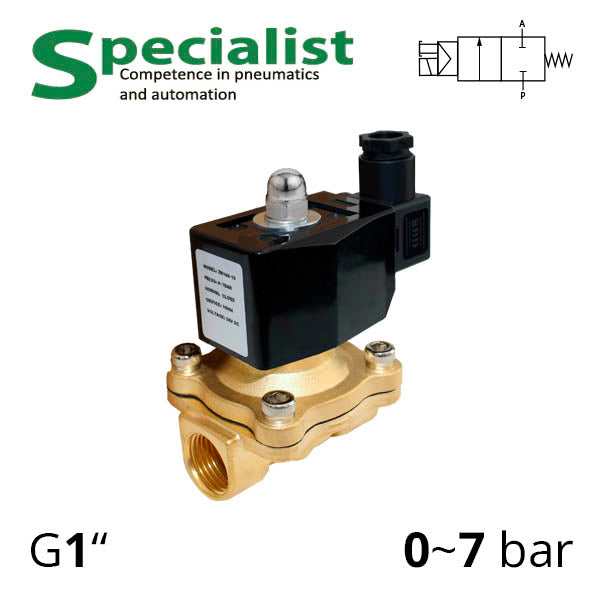

The SV-ZS11-ES-22NC-25 series valves are two-position normally closed diaphragm-type valves with one-way pilot electric control, featuring a pipe cylindrical thread G 1” (inch). Our company provides valves with different body and seal materials, allowing for the best option according to the operating environment and temperature. This inch solenoid valve DN 25 can be supplied with a power supply voltage of DC 24V or AC 220V.

We are often asked to purchase this especially when there is a need to buy a solenoid valve for water 1 inch 220 Volt, which can operate in gravity-led systems without pressure, for anti-flood systems protecting against cold water pipeline leaks, etc.

Technical Specifications of 2/2 NC Solenoid Valves Series SV-ZS11-ES-22NC-25
Construction	Two-line two-position normally closed valve with one-way pilot electric control
Material	Bronze, NBR (standard) Stainless Steel AISI304 or AISI316, VITON (on request)
Connection	G1” (inch)
Mounting	Vertical
Operating Temperature Range	from −5 to +80 °C (with dry air without moisture)
Power Supply Voltage	AC220V, DC24V
Permissible Voltage Variation	±10%
Working Environment	Air, water, oils (viscosity up to 20CTS), gas
Operating Pressure Range	0—5 bar (water), 0—7 bar (air), 0—5 bar (oil)
