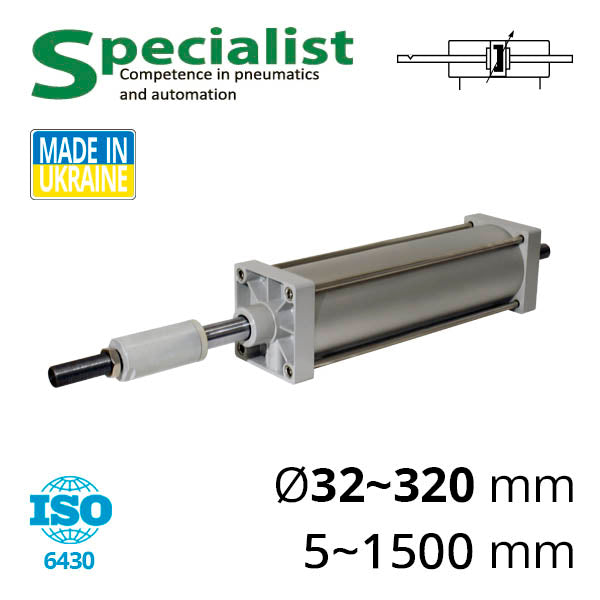

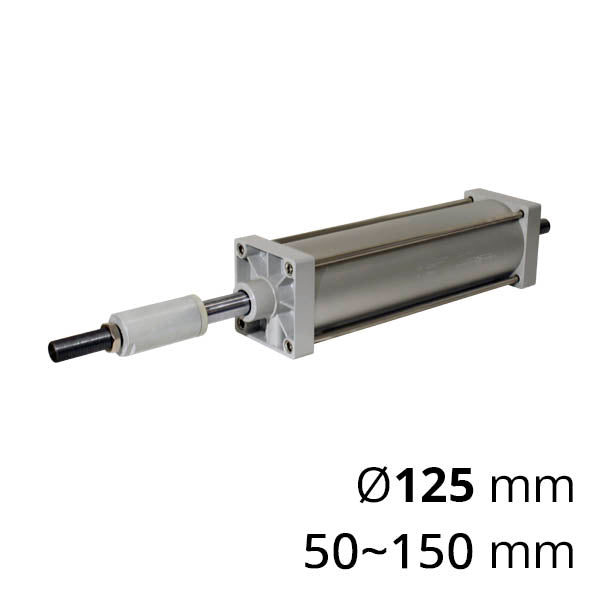

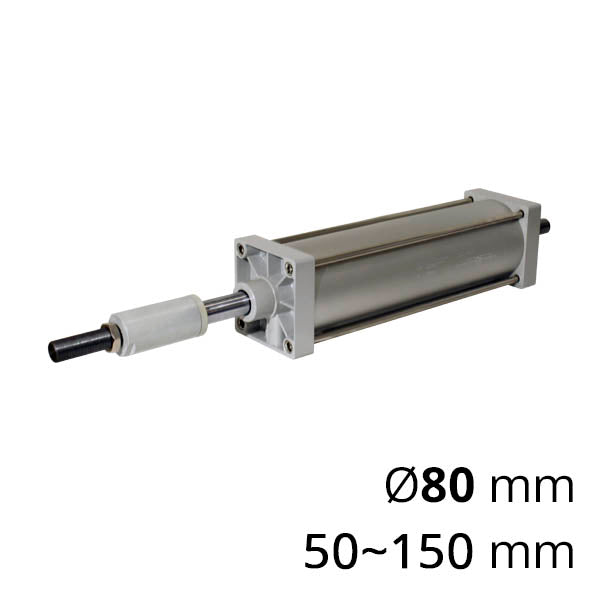

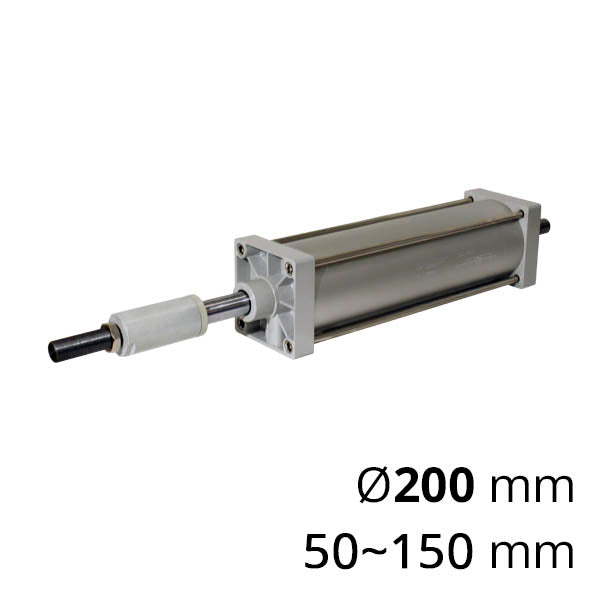

Name: Pneumatic cylinders of the SC-SCJ series with stroke adjustment
Brand: Specialist
SKU: SC-SCJ-32X50-S
Price: 2920.32 UAH
Availability: InStock

All about the product
Technical specifications
Reviews (0)
Related Products
Similar Products

Technical specifications

Діаметр поршню

32 мм, 40 мм, 50 мм, 63 мм, 80 мм, 100 мм, 125 мм, 160 мм, 200 мм

Довжина ходу

50 мм, 100 мм, 150 мм

Description

The power pneumatic cylinder of double action with stroke adjustment in the SC-SCJ series has a double-sided rod, with an adjustable mechanical stop on one side. This allows the cylinder to perform tasks such as moving heavy objects or exerting high pressure with controlled distance — it is frequently used for powerful universal presses and cutting machines. Models SC-SCJ are interchangeable with other standard pneumatic cylinders, which have dimensions and mounting sizes according to the ISO 6430 standard regardless of manufacturer.

Standard cylinders ISO 6430 are manufactured with piston diameters from 32 to 320 mm and maximum stroke length of pneumatic cylinders from 5 to 1500 mm depending on the piston diameter (see the table below) and with mechanical stroke control.

The built-in adjustable damper in the cylinder ensures smooth stopping of the piston at the end of the stroke to absorb the force of its impact on the front or rear cover. Using a special screw, damping can be adjusted to achieve higher or lower braking levels of the piston.

The double action involves controlling the extension-retraction of the rod by supplying-releasing compressed air through two threaded holes from G1/8 to 1/2″. Pressure up to 12 bar is allowed.

Overall Dimensions SC-SCJ
Diameter, mm	32	40	50	63	80	100	125	160	200
Action	Double
Type	With Stroke Adjustment
Operating Medium	Air (after 40 µm filter)
Operating Pressure Range	1~9 bar
Max. Input Pressure	12 bar
Connecting Thread	G1/8”	G1/4”		G3/8”		G1/2”		G3/4”
Operating Temperature Range	-10 ~ 70 °C (in dry air without moisture)
Damping, mm	20				26				45
Maximum Stroke Length, mm	1000	1200					1500
Magnetic Sensor Type	SC-CMS-G/SC-DMS-G
Sensor Mount Type	SH-32	SH-40	SH-50	SH-63	SH-80	SH-10	SH-125	SH-160	SH-200

Internal Structure and Materials

The parts listed in the table are used to manufacture SC-SCJ pneumatic cylinders by default. As a manufacturer, we can use other materials (VITON seals, stainless body, etc.) and make changes to the structure on request.

The construction of ISO 6430 cylinders is collapsible, allowing for repair and replacement of worn parts.

Pneumatic cylinders of model SC-SCJ have an aluminium round sleeve with open studs. By default, a magnet is mounted on the piston.

The rod is a through one with stroke adjustment, made of nickel-plated carbon steel with an external metric thread M10-27 for mounting accessories or direct loads. On request, the rod can be made of chrome stainless steel, without threads or with slots, etc.

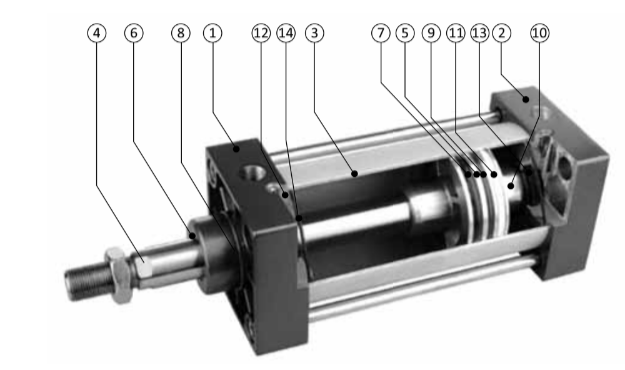

SC-SCJ Internal Structure

Materials of SC-SCJ Cylinder Parts
Number	Part Name	Material	Amount	Order Code
1	Front Cover	Powder-coated aluminium	1	SC-SC-(Diameter)-1
2	Rear Cover	Powder-coated aluminium	1	SC-SC-(Diameter)-2
3	Sleeve (Body)	Anodized aluminium	1	SC-SC-(Diameter)-3-(stroke)
4	Piston Rod	Chromed carbon steel (default) Chromed stainless steel	1	SC-SC-(Diameter)-4-(stroke)
5	Piston	Aluminium	1	SC-SC-(Diameter)-5
6	Rod Seal	NBR	1	SC-SC-(Diameter)-6
7	Piston Seal	NBR	2	SC-SC-(Diameter)-7
8	Bushing	Graphite-filled bronze	1	SC-SC-(Diameter)-8
9	Magnet	PVC	1	SC-SC-(Diameter)-9
10	Bolt	Steel	2	SC-SC-(Diameter)-10
11	Anti-friction Ring	PTFE	1	SC-SC-(Diameter)-11
12	Damping Adjustment Screw	Nickel-plated bronze	2	SC-SC-(Diameter)-12
13	Damping Cup	NBR	2	SC-SC-(Diameter)-13
14	Cover Seal (Ring)	NBR	2	SC-SC-(Diameter)-14

Example order of a round sleeve for a cylinder with a stroke of 100 — SC-SC-50-3-100.

Please note that repair kits for SC-SCJ cylinders may have different sizes from internal parts of cylinders of the ISO 6430 standard by other manufacturers.
