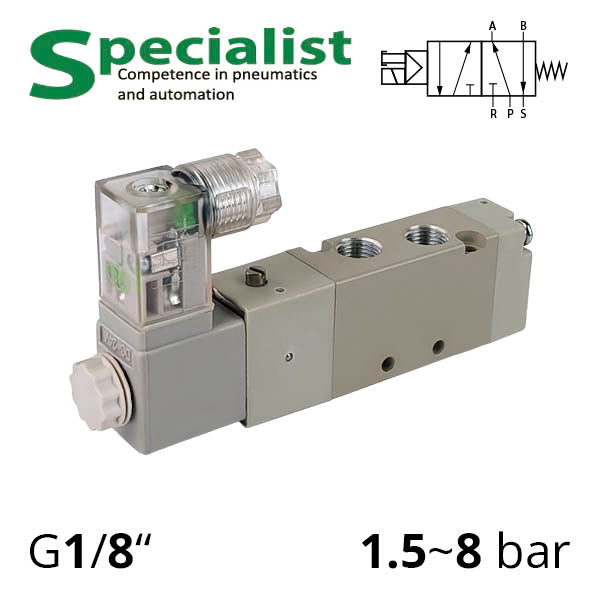

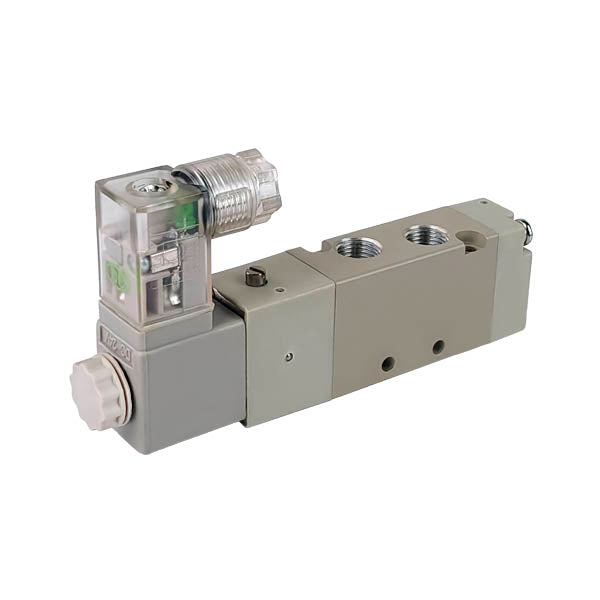

4V110-06-DC24V is a monostable 5/2 pneumatic valve with one solenoid coil ⚡ 24v and a return spring that resets the spool valve to its original position when the electrical signal is disconnected. These devices distribute compressed air at a pressure of 1.5-8 bar between two output ports and can control double-acting pneumatic cylinders.
The 5-way/2-position pneumatic valves have a total of five ports on the body, marked with numbers or letters:
The monostable type 4V110-06-DC24V is energy-efficient when it is necessary to maintain pressure at one of the outputs for a long time. Additionally, the spring return upon disconnection of the 24v power supply may be required for safety reasons.
On request, we can offer a similar pneumatic valve with an explosion-proof solenoid or for a different voltage.
| Model | 4V110-06 |
|---|---|
| Medium | Air after 40 μm filter |
| Control | Single-sided electropneumatic control (internal pilot valve) |
| Port Size | Inlet=Outlets=Exhausts=1/8" |
| Effective Cross-Sectional Area | 10.2 mm2 (Cv=0.6) |
| Valve Type | 5/2 |
| Operating Pressure | 1.5…8 bar (0.15…0.8 MPa) |
| Max Inlet Pressure | 12 bar (1.2 MPa) |
| Temperature | -20…70°C |
| Body Material | Aluminium alloy |
| Lubrication | Oil not required |
| Max Speed | 5 cycles per second |
