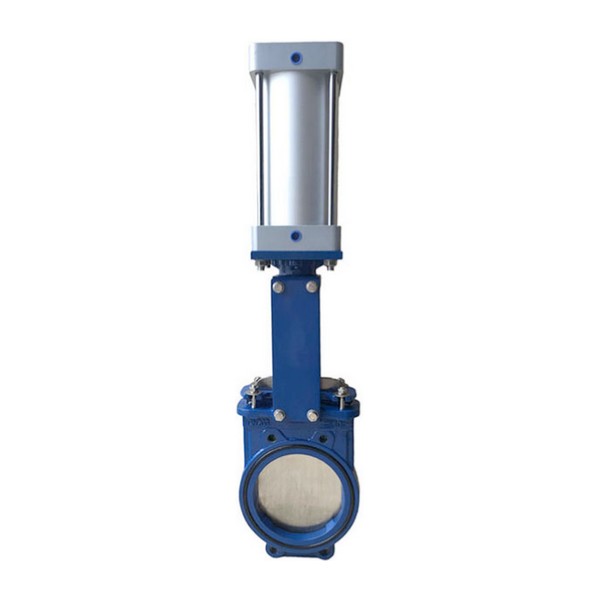

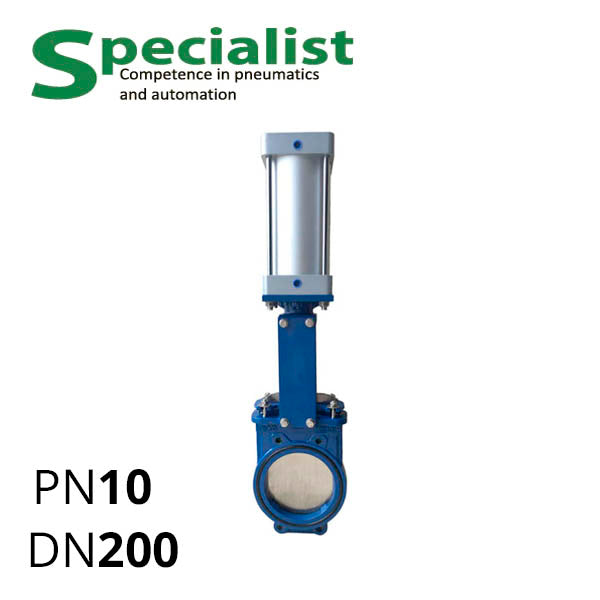

Knife gate valve DU 200 cast iron with pneumatic drive SCBF-PZ673X-10JC-200-P

Model SCBF-PZ673X-10JC-200-P is a cast iron wedge gate valve flanged DN200 PN10 with a pneumatic actuator of linear double-acting type. This bidirectional knife gate valve DN 200 made of cast iron is designed to shut off working media under or without pressure 9.8 bar and at temperatures up to 80° C, including for gas, liquids, and bulk materials.

Features of construction SCBF-PZ673X-10JC-200-P

• It has a high degree of sealing and reliability due to the NBR seal around the entire perimeter of the soft seat with a steel wire core for better load resistance.
• WCB is often mistaken for cast iron, but it is cast carbon steel, which is stronger, can operate under pressure and high temperatures — which makes it more suitable for industrial knife gate valves DN-200.

Modification of design and materials by order SCBF-PZ673X-10JC-200-P

We are manufacturers of pneumatic actuators and non-standard valves, directly importing high-quality shut-off valves from the factory, therefore we can offer the following modifications to the knife gate valve (price available on request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more wear-resistant and perfectly sealed.
• Stainless steel disc for contact with more aggressive environments.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control set — non-standard pneumatic cylinder with adjustable stroke, fittings and air tube for connection, pneumatic distributor for control, air preparation and mounting fastenings, which you will find in the Specialist online store — or request selection from the sales manager.
