Knife gate valve DU 80 cast iron with pneumatic drive SCBF-PZ673X-10JC-80-P

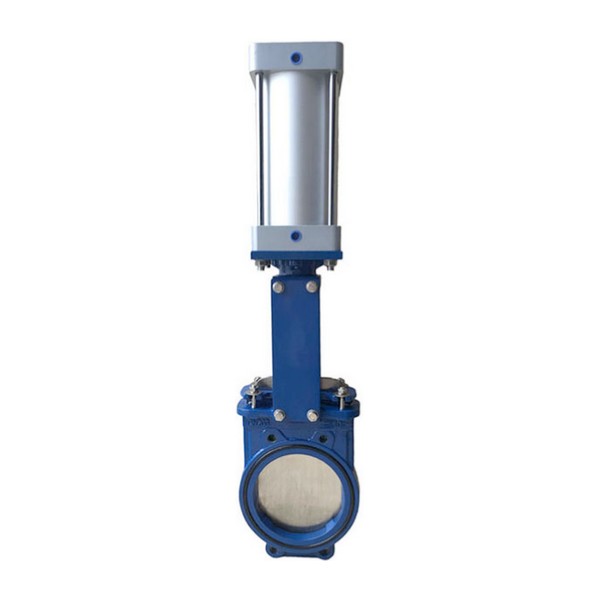

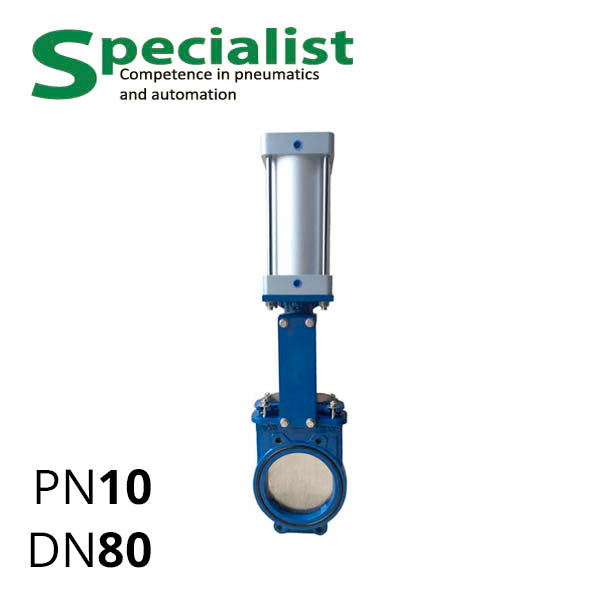

Model SCBF-PZ673X-10JC-80-P is a cast iron wedge gate valve DN80 PN10 with a pneumatic actuator with linear double-acting. This bidirectional knife valve DN 80 made of cast iron is designed to block working media without pressure or under pressure of 9.8 bar and temperature up to 80° C, including for gas, liquids, and bulk materials.

Features of the SCBF-PZ673X-10JC-80-P

• It has a high degree of sealing and reliability due to the NBR seal around the entire perimeter of the soft seat, which has a core of steel wire and withstands load better.
• WCB is confused with cast iron, but it is cast carbon steel, which is stronger, can operate under pressure and at high temperatures — making it more suitable for industrial gate valves DN-80.

Modification of design and materials on request SCBF-PZ673X-10JC-80-P

We are manufacturers of pneumatic actuators and non-standard valves, directly import quality serial production valves from the factory, so we can offer the following modifications of knife gate valve (price upon request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more wear-resistant and highly hermetic.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings, and air tube for connection, pneumatic distributor for control, air preparation and mounting brackets available at the Specialist online store — or order their selection from a sales manager.
