Knife gate valve DU 50 cast iron with pneumatic drive SCBF-PZ673X-10JC-50-P

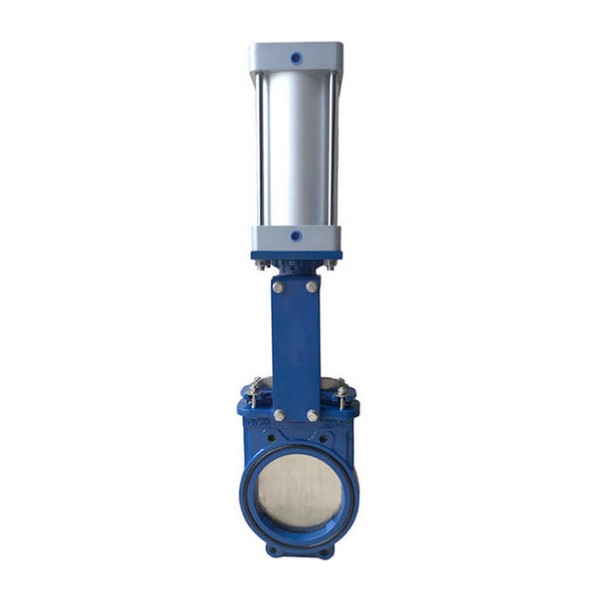

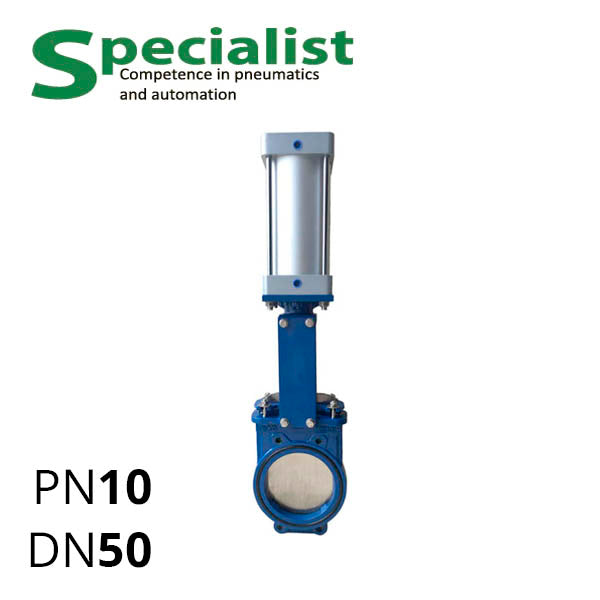

Model SCBF-PZ673X-10JC-50-P is a cast iron wafer wedge gate valve DN50 PN10 with a pneumatic actuator of linear double-acting type. This bidirectional knife gate DN 50 made of cast iron is intended for sealing working media without pressure or under pressure 9.8 bar and temperatures up to 80° C, including gas, liquids, and bulk materials.

Construction and Material Features of SCBF-PZ673X-10JC-50-P

• It has a high class of tightness and reliability due to the NBR seal over the entire perimeter of the soft seat, which has a core of steel wire and better withstands load.
• WCB is often mistaken for cast iron, but it is carbon steel, cast, stronger, and can work under pressure and high temperatures — making it more suitable for industrial knife gate valves DN-50.

Changes in Design and Materials on request SCBF-PZ673X-10JC-50-P

We are manufacturers of pneumatic actuators and non-standard valves, directly importing quality serial production shut-off equipment from the factory, so we can offer the following modifications for the knife gate valve (price provided upon request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more wear-resistant and highly airtight.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings and air tube for connection, air distributor for control, air preparation, and mounting fixtures that you can find in the Specialist online store — or order their selection from the sales manager.
