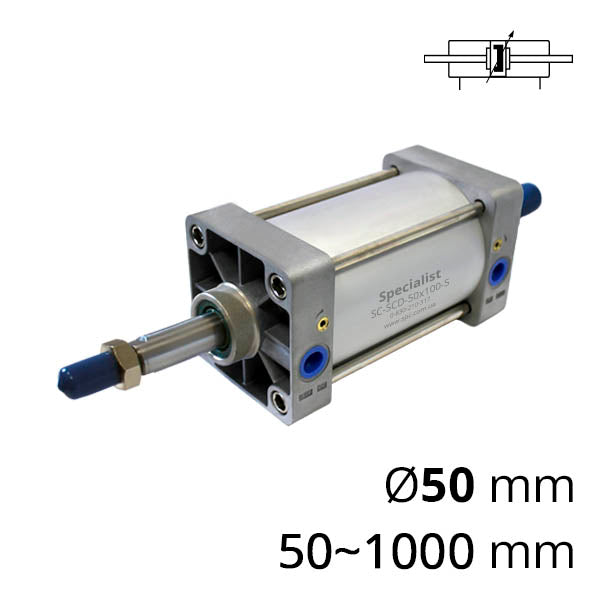

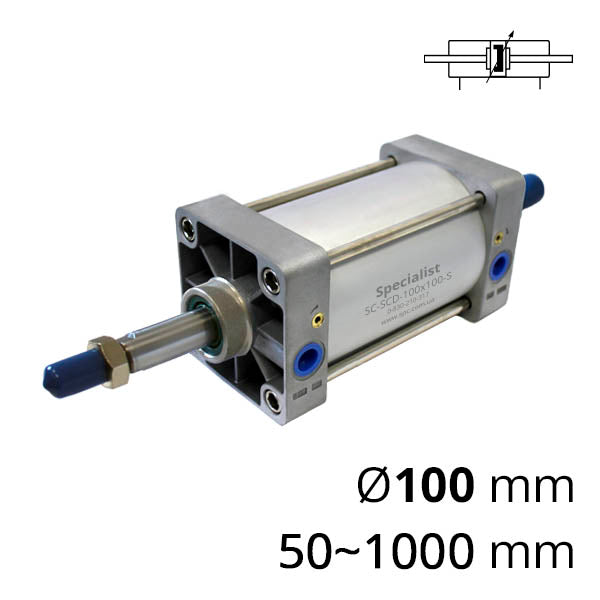

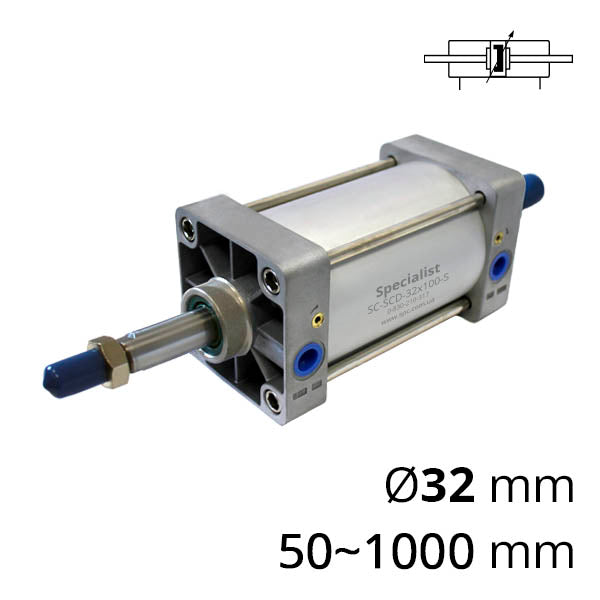

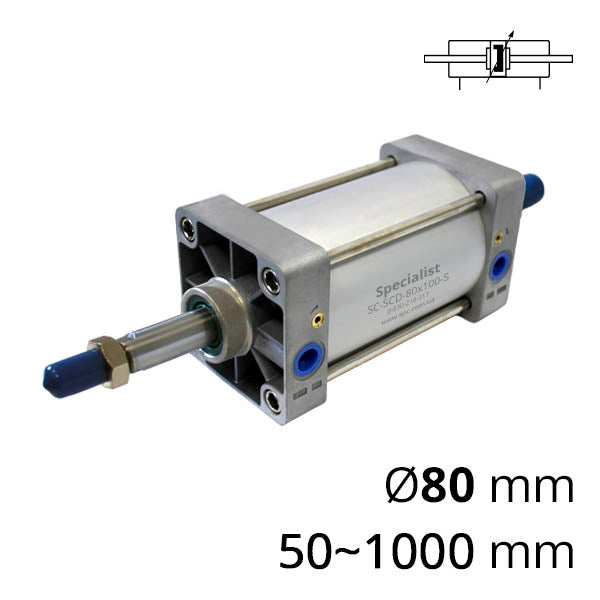

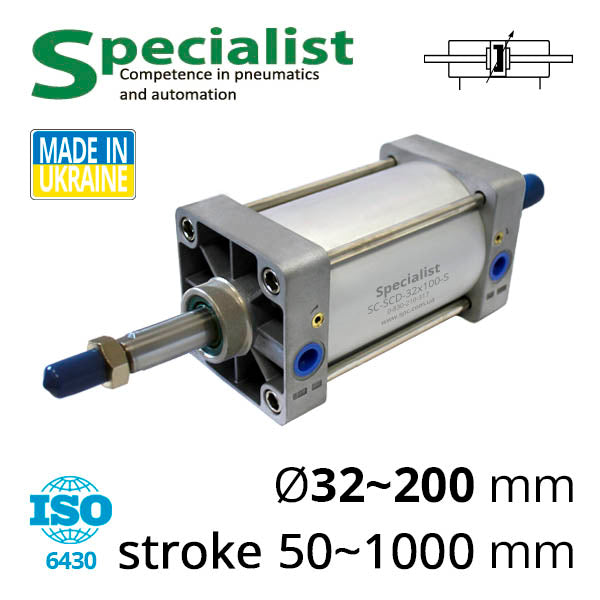

The SC-SCD series double-acting economical power pneumatic cylinder with through rod is designed for moving large loads — force up to ~18,600 Newtons (at Ø200 mm, 7 bar) in both directions. These pneumatic cylinders are manufactured according to the overall and mounting dimensions in accordance with ISO 6430 standards. The SC-SCD pneumatic drives are cushioned, so they can be used at a movement speed up to 1 m/s.
The SC-SCD air cylinders are of our own Ukrainian production "Specialist". By default, we produce an aluminium round body with open studs that secure the cap. The through double-sided rod is made of carbon steel with chrome plating to increase strength. The piston has a magnet. If necessary, we manufacture other modifications of the pneumatic drive with higher force.
| Diameter, mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Action | Double action | |||||||||||
| Type | with through rod | |||||||||||
| Working medium | Air (after 40 µm filter) | |||||||||||
| Operating pressure range | from 1 to 9 Bar | |||||||||||
| Max. input pressure | 12 Bar | |||||||||||
| Connection thread | G1/8” | G1/4” | G3/8” | G1/2” | G3/4” | |||||||
| Operating temperature range | -10 ~ 70 °C (with dry air without moisture) | |||||||||||
| Cushioning, mm | 20 | 26 | 45 | |||||||||
| Maximum stroke length, mm | 1000 | 1200 | 1500 | |||||||||
| Type of magnetic sensor | SC-CMS-G/SC-DMS-G | |||||||||||
| Type of mount for magnetic sensor | SH-32 | SH-40 | SH-50 | SH-63 | SH-80 | SH-10 | SH-125 | SH-160 | SH-200 | |||
