Rotary pneumatic actuator for shut-off valves SC-RAT/RST52-DA

Do you have any questions about the product?
We will be happy to answer them in messengers

Rotary pneumatic actuator for shut-off valves SC-RAT/RST52-DA

Name: Rotary pneumatic actuator for shut-off valves SC-RAT/RST52-DA
Brand: Specialist
SKU: SC-RAT052-DA
Price: 3027.00 UAH
Availability: InStock

In Stock

Спосіб дії

Двосторонній З пружинним поверненням

Size

Model

Manufacturer

Specialist

from 3 027,00 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SC-RAT052-DA

Rotary pneumatic actuator for shut-off valves SC-RAT/RST52-DA

Спосіб дії=Двосторонній Size=52

SC-RAT052-DA

3 027,00 UAH

In Stock

SC-RST052-DA

Rotary pneumatic actuator for shut-off valves SC-RAT/RST52-DA

Спосіб дії=З пружинним поверненням Size=52

SC-RST052-DA

3 736,50 UAH

In Stock

Technical specifications

Розмір

Спосіб дії

Двосторонній, З пружинним поверненням

Description

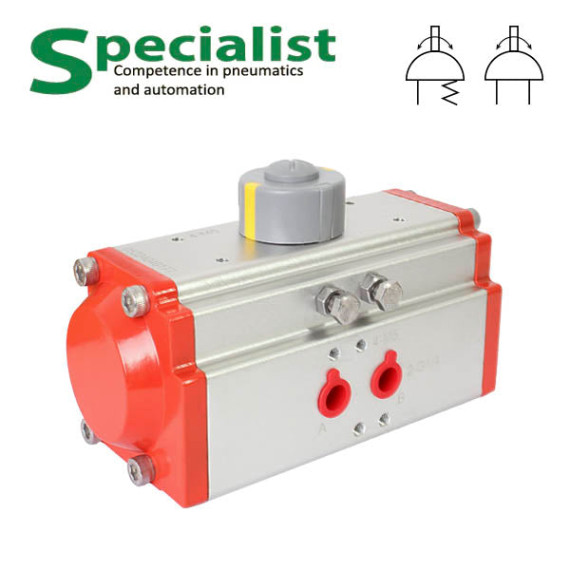

Pneumatic rotary actuator for shut-off valves SC-RAT/RST52-DA of size 52 has a rotation of 90 or 180° and a torque of up to 33.28 Nm (at a pressure of 8 bar). This is a reliable pneumatic actuator designed for small ball valves ⅜~2″ and butterfly dampers DN10~50, which have a standard mounting platform for the actuator F03/F05 according to ISO 5211/DIN3337 standards. When ordering, you should consider the torque value Nm and choose the mode of operation:

SC-RAT52-DA — double-acting pneumatic actuator. It should be equipped with a Namur standard distributor 5/2 with a thread size of 1/4″ at the output of the pneumatic distributor, with force up to 33.28 Nm;
SC-RST52-DA — single-acting pneumatic actuator with forced spring return to closed/open position in case of air pressure drop. The turning force depends on the number of springs (from 5 to 12). The force is halved — up to 14 Nm. Both 3/2 and 5/2 distributors can be used for control. We recommend supplying air to both outputs using the 5/2 construction.

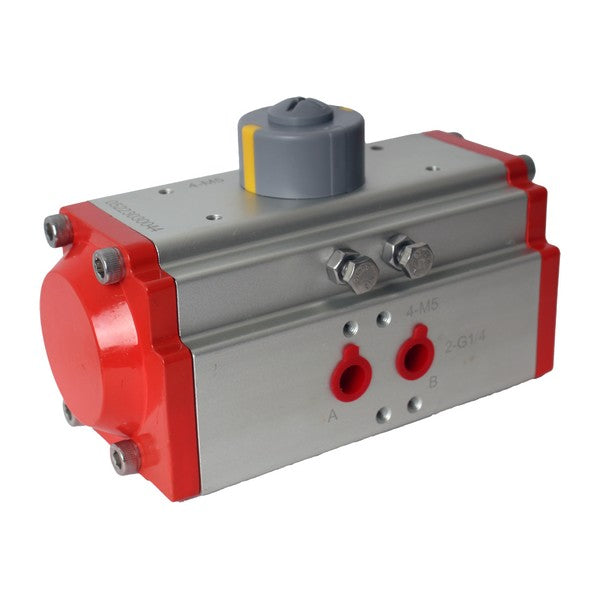

Horizontal pneumatic actuator 52 SC-RAT/RST52-DA

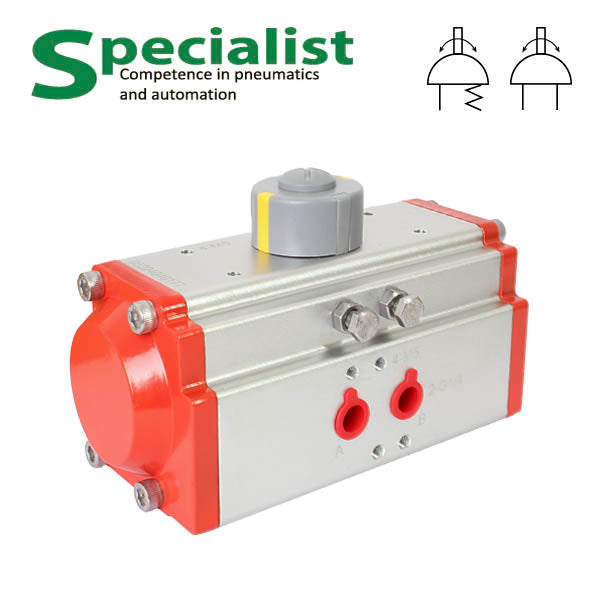

The bodies of the Specialist air actuators are made of extruded aluminium with deep anodising of the internal and external surfaces.

Structurally, this is a rack and pinion rotary pneumatic cylinder of a quarter 90±4° for a ball valve or 180±4°. It can be equipped with NAMUR standard pneumatic distributors, positioners, and limit switch blocks.

Torque of double-acting pneumatic actuator 52 SC-RAT52-DA

Torque of double-acting pneumatic actuator SC-RAT52-DA depending on inlet pressure
Pressure, Bar
2	3	4	5	6	7	8
8.32	12.48	16.64	20.8	24.96	29.12	33.28

Torque of single-acting pneumatic actuator 52 SC-RST52-DA

Graph of force dependence of Specialist pneumatic actuators

Torque of spring return pneumatic actuator SC-RST52-DA
Pressure, Bar	3		4		5		6		7		Torque from spring
Number of springs	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°
5	8.48	6.28	12.64	10.44	-	-	-	-	-	-	4	6.2
6	7.63	4.98	11.84	9.14	-	-	-	-	-	-	4.8	7.5
7	6.98	3.78	11.14	7.94	-	-	-	-	-	-	5.5	8.7
8	-	-	10.34	6.74	14.5	10.9	-	-	-	-	6.3	9.9
9	-	-	9.54	5.44	13.7	9.6	-	-	-	-	7.1	11.2
10	-	-	8.74	4.24	12.9	8.4	17.06	12.56	-	-	7.9	12.4
11	-	-	-	-	12.1	7.1	16.26	11.26	20.42	15.42	8.7	13.7
12	-	-	-	-	11.3	5.9	15.46	10.6	19.62	14.22	9.5	14.9
