Vacuum Ejectors
In Stock
Vacuum Ejectors
Vacuum ejector is a very small vacuum generator necessary for the operation of an industrial manipulator with suction cups in an automated production line. To produce a vacuum output -48...90 kPa, compressed air from a compressor, typically available in production for powering pneumatic devices, is passed through the device. Therefore, purchasing an air ejector to create a vacuum from the pneumatic line is often cheaper and simpler than laying a separate line from a vacuum pump. The latter should be considered for high-speed packaging lines where productivity needs to be significantly higher.
Need a vacuum generator?
The engineers at “Specialist-P” specialise in designing manufacturing automation systems and packaging lines — we can help you select both vacuum equipment and pneumatic components and industrial electronics for your task.
Call for consultation
+38 0800 210 317How does a vacuum ejector work?

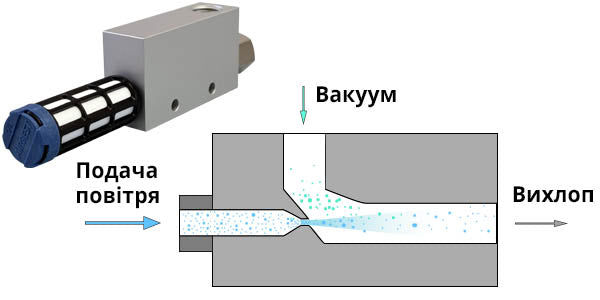

Vacuum ejector generators are miniature jet pumps with a Venturi tube at their core. To create a vacuum, compressed air at approximately 5 bar is passed through a narrowing of 0.5...2 mm, causing the air jet to shoot out of the nozzle in a specific direction and capture neighbouring molecules into the flow. This creates a suction effect and loosening at the ejector's second outlet, i.e., vacuum.
During operation, the ejector releases air into the atmosphere through an exhaust opening, where a silencer is installed to reduce the noise from hissing. Sometimes, a pressure relay and a solenoid valve are added to the basic design to control the vacuum, which can regulate the vacuum and ensure greater energy efficiency and safety.
Simple models typically have a T-shaped form.
Choosing a vacuum generator model
In our company "Specialist" you can purchase two types of ejectors:
- Series SCC-ACV consists of more classic ejectors in a protective housing with a wide selection of models for generating up to 7~350 nl/min of vacuum, allowing you to choose the optimal option for a group of suction cups;
- Series SCC-AUZ are miniature ejectors, which are more expensive but can be integrated into any space: they are embedded into a tube and do not occupy extra space. They are designed for a maximum of 19 nl/min and are mainly used with individual suction cups.
Pneumatic ejectors series SCC-ACV
Pneumatic ejectors series SCC-ACV have a classic T-shaped design in a protective housing and are commonly used to power a group of suction cups.
| Model | Max vacuum depth -kPa |
Max. vacuum generation, nl/min | Nominal input pressure, bar | Air consumption, nl/min |
|---|---|---|---|---|
| SVV-ACV-05HS | 87 | 7 | 5 | 13 |
| SVV-ACV-10HS | 90 | 27 | 5 | 44 |
| SVV-ACV-15HS | 90 | 63 | 5 | 100 |
| SVV-ACV-20HS | 90 | 110 | 5 | 180 |

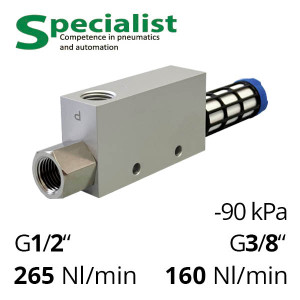

| SVV-ACV-25HS | 90 | 160 | 5 | 265 |

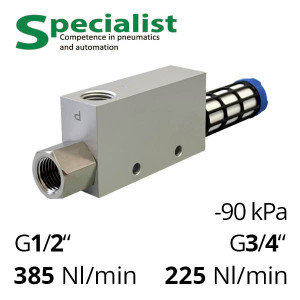

| SVV-ACV-30HS | 90 | 225 | 5 | 385 |
| SVV-ACV-05LS | 57 | 10 | 5 | 13 |
| SVV-ACV-10LS | 57 | 36 | 5 | 44 |

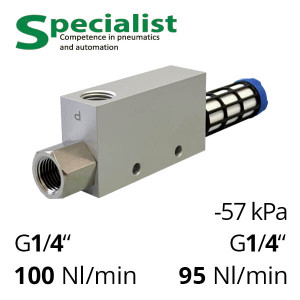

| SVV-ACV-15LS | 57 | 95 | 5 | 100 |
| SVV-ACV-20LS | 57 | 170 | 5 | 180 |
| SVV-ACV-25LS | 57 | 250 | 5 | 265 |
| SVV-ACV-30LS | 57 | 350 | 5 | 385 |

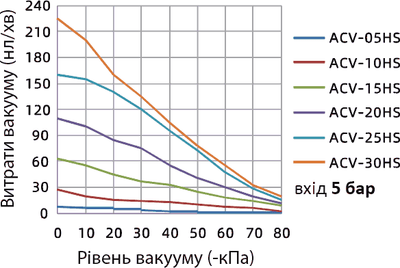

The higher the consumption, the less vacuum pressure the ejector creates:
Pneumatic mini-ejectors series SCC-AUZ
Miniature pressure generators series SCC-ACV have a direct form and are designed for embedding into piping.

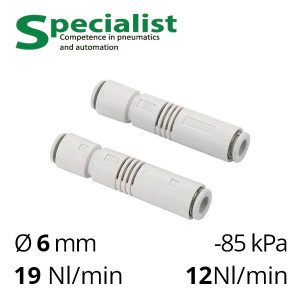

| Model | Max vacuum depth -kPa |
Max. vacuum generation, nl/min | Nominal input pressure, bar | Air consumption, nl/min |
|---|---|---|---|---|
| SVV-AUZ-05-S | 85 | 7 | 4.5 | 9 |
| SVV-AUZ-07-S | 85 | 12 | 4.5 | 19 |
| SVV-AUZ-05-L | 48 | 12 | 4.5 | 9 |
| SVV-AUZ-07-L | 48 | 21 | 4.5 | 19 |
