Knife gate valve DU 65 cast iron with pneumatic drive SCBF-PZ673X-10JC-65-P

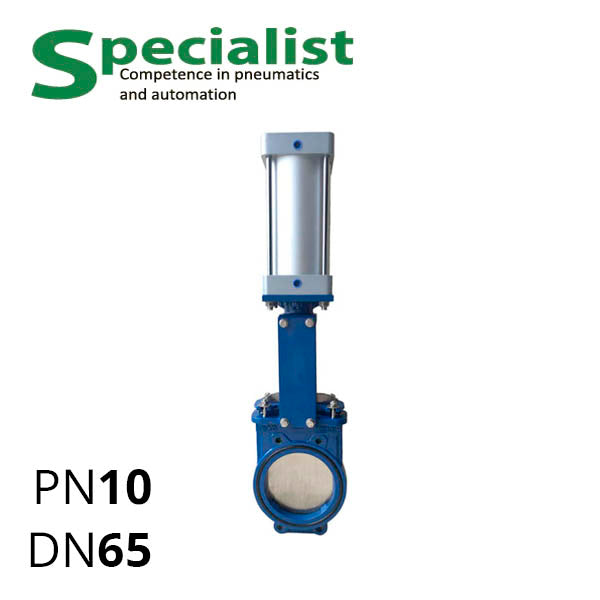

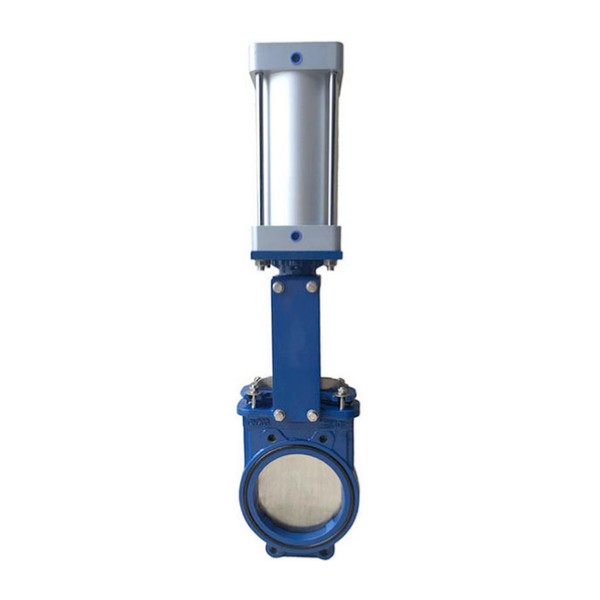

Model SCBF-PZ673X-10JC-65-P is a cast iron wafer wedge gate valve DN65 PN10 with a pneumatic actuator of linear double-acting type. This bidirectional knife gate valve DN 65 cast iron is designed for blocking media without pressure or under pressure of 9.8 bar and temperature up to 80° C, including for gas, liquids, and bulk materials.

Construction Features of SCBF-PZ673X-10JC-65-P

• Offers high sealing class and reliability thanks to NBR sealing around the soft seat perimeter with a steel wire core that withstands more stress.
• WCB is often confused with cast iron but it's cast carbon steel, which is stronger and can handle pressure and high temperatures, making it more suited for industrial knife gate valves DN-65.

Custom Design and Materials for SCBF-PZ673X-10JC-65-P

We manufacture pneumatic actuators and non-standard valves, directly procuring high-quality shut-off valves from factories, therefore we can offer the following modifications of the knife gate valve (price upon request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more wear-resistant and maximally sealed.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thicker walls for even higher pressure.
• Pneumatic actuator control kit – non-standard pneumatic cylinder with adjustable stroke, fittings, and air tube for connection, pneumatic distributor for control, air preparation and mounting fasteners, available in the Specialist online store – or order a selection from the sales manager.
