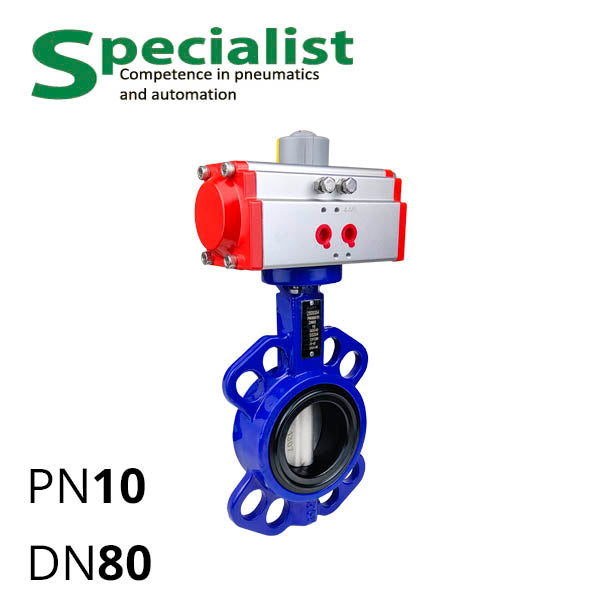

Disc rotary valve DU 80 cast iron intermediate flange with pneumatic drive SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 80 cast iron intermediate flange with pneumatic drive SCBF-D673 series

Name: Disc rotary valve DU 80 cast iron intermediate flange with pneumatic drive SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-80-RAT063
Price: 4950.78 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 4 950,78 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-80-RAT063

Disc rotary valve DU 80 cast iron intermediate flange with pneumatic drive SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-80-RAT063

4 950,78 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

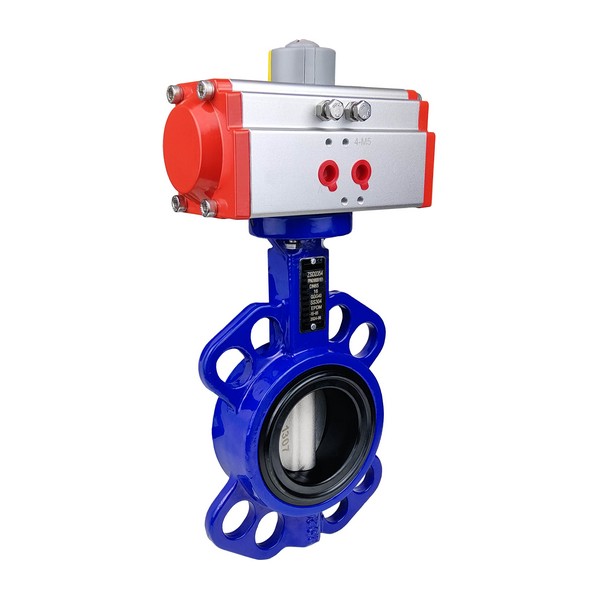

Cast Iron Butterfly Valve SCBF-D673-10XEX-80-RAT063 is an industrial disc rotary valve PN10 DN80 with a pneumatic actuator for multi-position regulation of water, other non-aggressive gases and liquids under pressure, compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials, so the disc rotary valve is compatible with your working environment; PN16 on request.

Table — Specifications of the pneumatic-operated cast iron rotary valve SCBF-D673-10XEX-80-RAT063
DN	80 mm
Nominal Pressure	PN10 (PN16 on request)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Range	from −30 to 95° C
Installation Thickness	45 mm
Pneumatic Actuator Model	SC-RAT063
SC-RAT063 Operating Mode	Double-acting
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
SC-RAT063 Torque at 6 bar	43.92 Nm

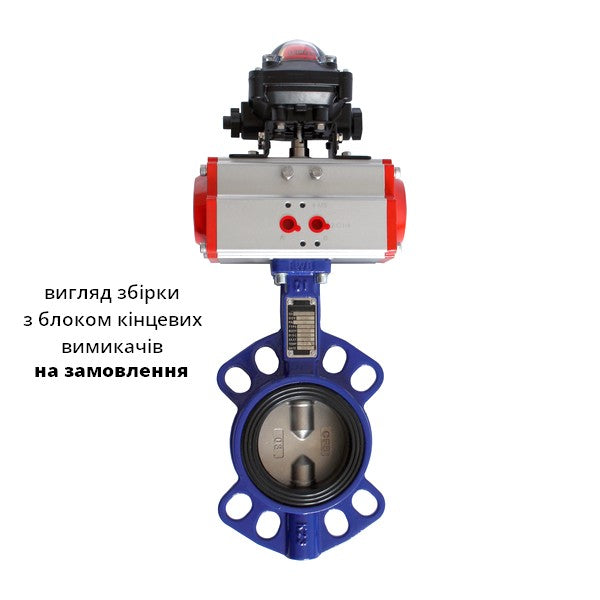

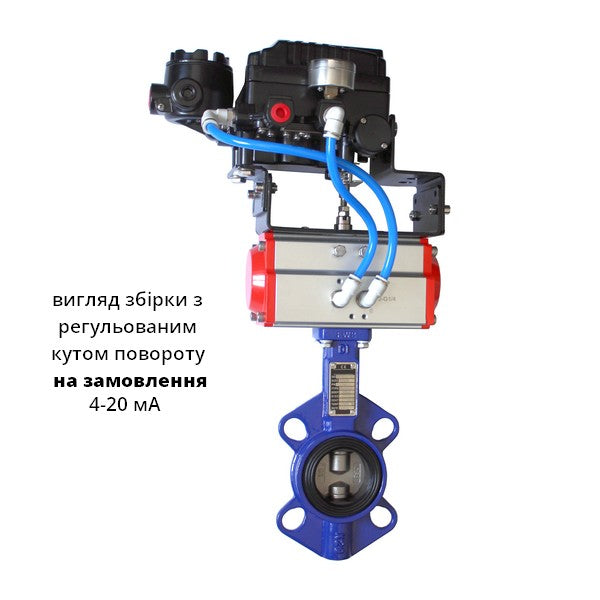

In addition to water/gas rotary valve by Specialist, you can purchase distributors of Namur standard 5/2 for pneumatic actuator control, silencers, fittings, limit switch blocks, positioners.
