Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V

Do you have any questions about the product?
We will be happy to answer them in messengers

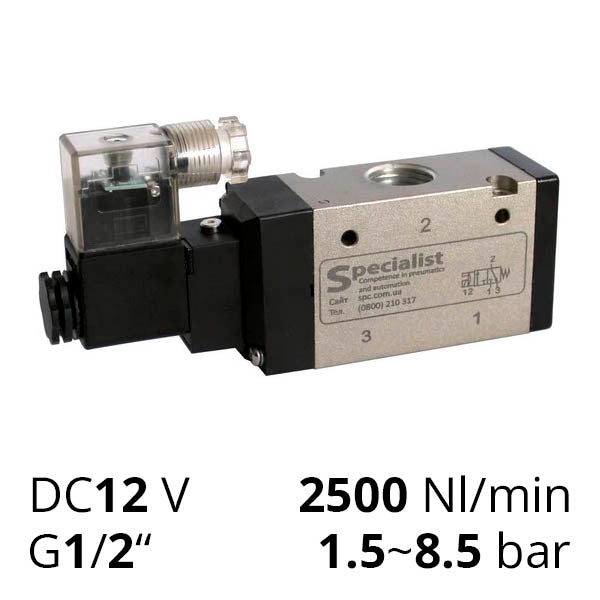

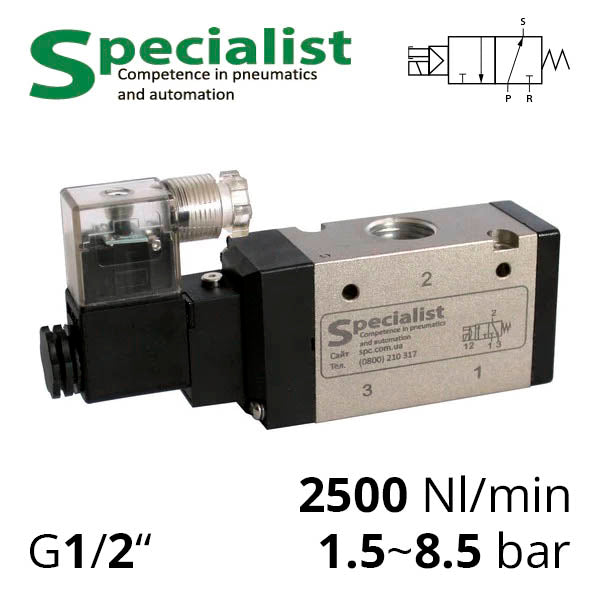

Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V

Name: Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V
Brand: Specialist
SKU: SV-E2-ES-32NC-15-V-DC12V
Price: 1699.68 UAH
Availability: InStock

In Stock

Power Voltage

AC220V DC12V DC24V

Type

Thread size

G 1/2

Model

Manufacturer

Specialist

2 506,78 UAH

-32%

from 1 699,68 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SV-E2-ES-32NC-15-V-DC12V

Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V

Power Voltage=DC12V Type=NC Thread size=G 1/2

SV-E2-ES-32NC-15-V-DC12V

2 506,78 UAH 1 699,68 UAH

In Stock

SV-E2-ES-32NC-15-V-DC24V

Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V

Power Voltage=DC24V Type=NC Thread size=G 1/2

SV-E2-ES-32NC-15-V-DC24V

2 506,78 UAH 1 699,68 UAH

In Stock

SV-E2-ES-32NC-15-V-AC220V

Pneumatic distributor with electrical control 3/2, thread 1/2″ series SV-E2-ES-32NC-15-V

Power Voltage=AC220V Type=NC Thread size=G 1/2

SV-E2-ES-32NC-15-V-AC220V

2 506,78 UAH 1 699,68 UAH

In Stock

Technical specifications

Thread

G 1/2"

Coil voltage

AC220V, DC12V, DC24V

Тип

Description

3/2 Solenoid Air Valve SV-E2-ES-32NC-15-V is a monostable three-line two-position pneumatic valve, normally closed with single-sided solenoid control and spring return, designed for use with compressed air at an operating pressure of 1.5-8.5 bar. They can be used for controlling single-acting pneumatic cylinders or for other applications.

Two-way pneumatic valves have three connection ports with a thread G 1/2″ (inch), marked with letters or numbers:

"P" — input for compressed air supply
"A" — output to consumer line
"S" — exhaust port for pressure release to the atmosphere (it is recommended to fit a silencer on the exhaust port to reduce noise levels and protect the air valve from external contamination)

The client can choose a coil with the required electrical characteristics:

DC 12V — direct current, voltage 12 V
DC 24V — direct current, voltage 24 V
AC 220V — alternating current, voltage 220 V

Explosive-proof solenoid coils with or without diode on the connector are supplied to order.

Model	SV-E2-ES-32NC-15-V
Number of Lines/Positions	3/2
Effective Cross-sectional Area	50 mm² (CV=2.79)
Connection Thread	G1/2″
Nominal Flow Rate	2500 l/min
Working Medium	Air, filtration fineness not less than 40 microns
Control Element Type	Electropneumatic (pilot), pneumatic (direct)
Operating Pressure Range	1.5-8.5 bar
Max. Input Pressure	12 bar
Operating Temperature Range	-5...+50° C (in dry air without moisture)
Supply Voltage	12 V DC (2.4 W); 24 V DC (3 W); 220 V AC (2.5 VA)
Allowable Supply Voltage Variation	-15%...+10%
Protection Degree, Insulation Class	IP65, class F
Max. Operating Frequency	5 cycles/sec
Min. Switching Time	0.05 s

Why is the price of Solenoid Valves SV-E2-ES-32NC-15-V low?

SV-E2-ES-32NC-15-V is an older series of Specialist air solenoid valves, different from the new one in the exterior of the body and internal seals, while operating parameters remain the same. We are selling off remnants of these valves from stock in Ukraine at a low price — the number of items is limited, so please check availability before payment.
