Electric Actuators for Shut-off Valves

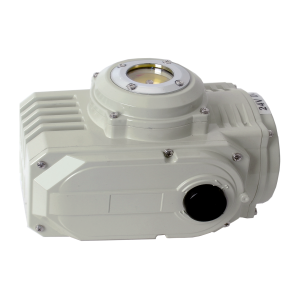

Electric actuator for shut-off and regulating valves is used for remote control of the position of industrial ball valves or butterfly valves by electric signal.
- Electric actuators for shut-off valves operate in the "open-close" position
- Regulating electric actuators, can stop the ball valve or butterfly valve in intermediate positions, thus altering the flow of the working medium and adjusting such parameters as pressure or temperature.
| Model | HL-05A | HL-10A | HL-20A | HL-50A | HL-100A | HL-200A |
|---|---|---|---|---|---|---|
| Power Supply | DC24V, AC24V, AC110V, AC220V | |||||
| Motor Power | 10 W | 23 W | 40 W | 90 W | 100 W | 100 W |
| Nominal Current | 0.24 A | 0.32 A | 0.48 A | 0.92 A | 1.0 A | 1.2 A |
| Output Torque | 50 N⋅m | 100 N⋅m | 200 N⋅m | 500 N⋅m | 1000 N⋅m | 2000 N⋅m |
| Operation Time | 30 s | 30 s | 30 s | 30 s | 50 s | 100 s |
| Rotation Angle | 0~360° | 0~90° | ||||
| Input Signal | 4…20 mA / 1…5 V / 0…10 V DC | |||||
| Output Signal | 4…20 mA DC | |||||
| Accuracy | 1% | |||||
| Weight | 2.2 kg | 4.0 kg | 7.0 kg | 7.8 kg | 11.2 kg | 11.8 kg |
| Protection Class | IP67 | |||||
| Ambient Temperature | -25~60°C (other temperature ranges on request) | |||||
| Installation Position | Any angle | |||||
| Body Material | Die-cast aluminium components | |||||
