Disc rotary gate DU 100 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary gate DU 100 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary gate DU 100 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-100-RAT075
Price: 6140.82 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 6 140,82 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-100-RAT075

Disc rotary gate DU 100 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-100-RAT075

6 140,82 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

52 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 100

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

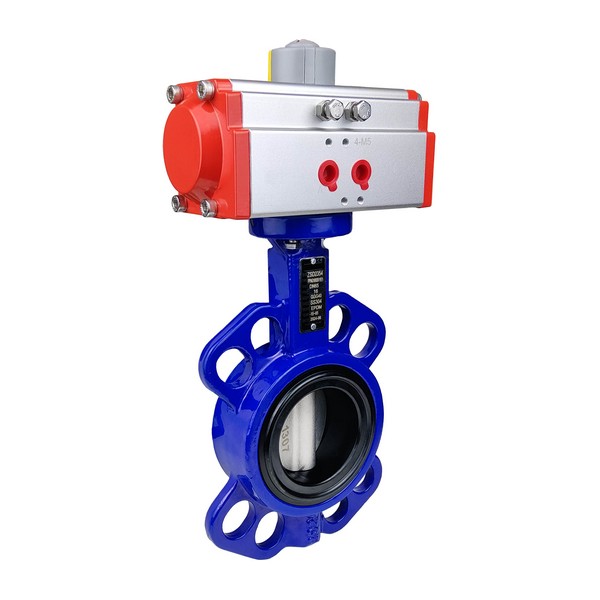

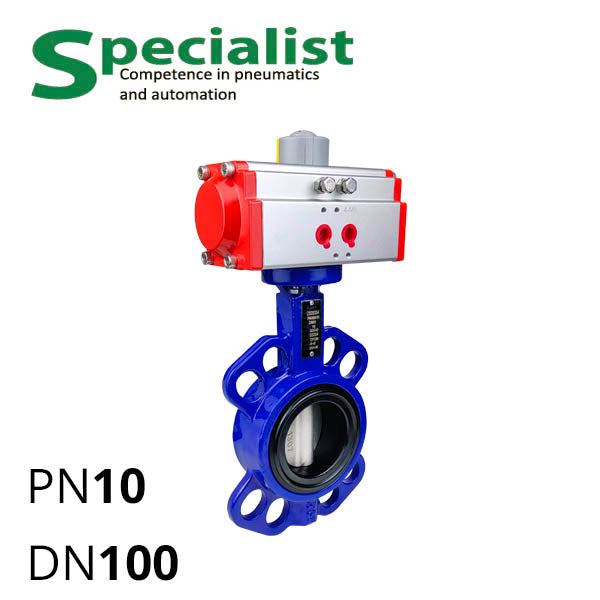

Cast iron valve butterfly SCBF-D673-10XEX-100-RAT075 is an industrial butterfly valve PN10 DN100 with pneumatic actuator for multi-position water control, other non-aggressive gaseous and liquid substances under pressure that are compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials to match the working environment; rubberized disc; PN16 on request.

Table — Specifications of pneumatically operated cast iron butterfly valve SCBF-D673-10XEX-100-RAT075
DN	100 mm
Nominal Pressure	PN10 (PN16 on request)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Range	from −30 to 95° C
Installation Thickness	52 mm
Pneumatic Actuator Model	SC-RAT075
SC-RAT075 Operation Type	Double acting
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
SC-RAT075 Force at 6 bar	70.5 Nm

Besides the Specialist's water/gas rotary valve, you may purchase distributors of Namur 5/2 standard for pneumatic actuator control, silencers, fittings, limit switch blocks, positioners.
