Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series

Name: Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-50-RAT052
Price: 4318.26 UAH
Availability: InStock

In Stock

Диск

AISI 304 SS AISI 316 SS

Ущільнення

EPDM PTFE

Пневмопривід

25 Нм 43 Нм

Model

Manufacturer

Specialist

from 4 246,86 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-50-RAT052

Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=AISI 304 SS Ущільнення=EPDM Пневмопривід=25 Нм

SCBF-D674-10XEC-50-RAT052

4 318,26 UAH

In Stock

SCBF-D674-10XES-50-RAT052

Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=AISI 316 SS Ущільнення=EPDM Пневмопривід=25 Нм

SCBF-D674-10XES-50-RAT052

4 246,86 UAH

In Stock

SCBF-D674-10XFS-50-RAT063

Disc rotary valve DU 50 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=AISI 316 SS Ущільнення=PTFE Пневмопривід=43 Нм

SCBF-D674-10XFS-50-RAT063

5 393,94 UAH

In Stock

Technical specifications

Connection type

inter-flange

Installation length

41 mm

Диск

AISI 304 SS, AISI 316 SS

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

disc rotary shutter

Inlet pressure

There are 10

Пневмопривід

25 Нм, 43 Нм

Тип контролю

with pneumatic drive

Description

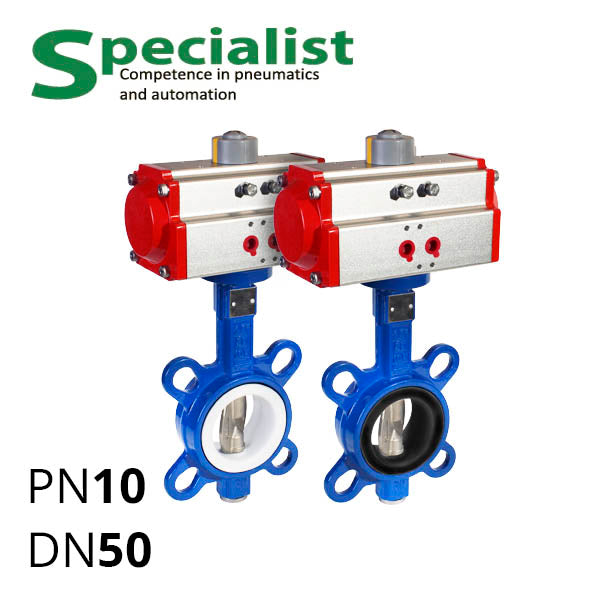

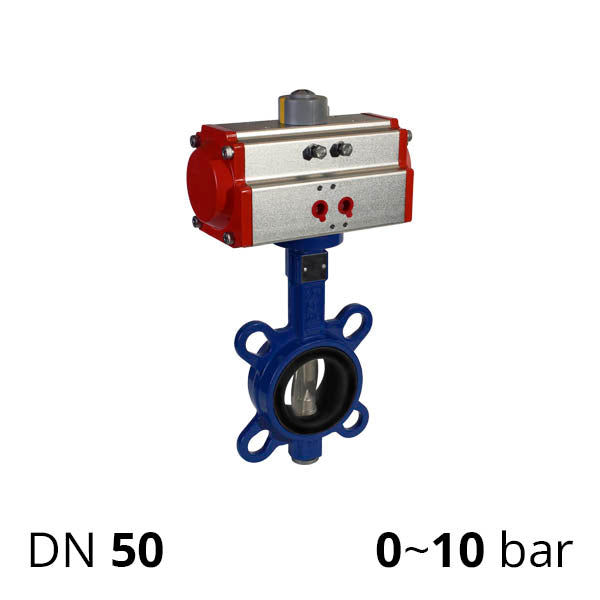

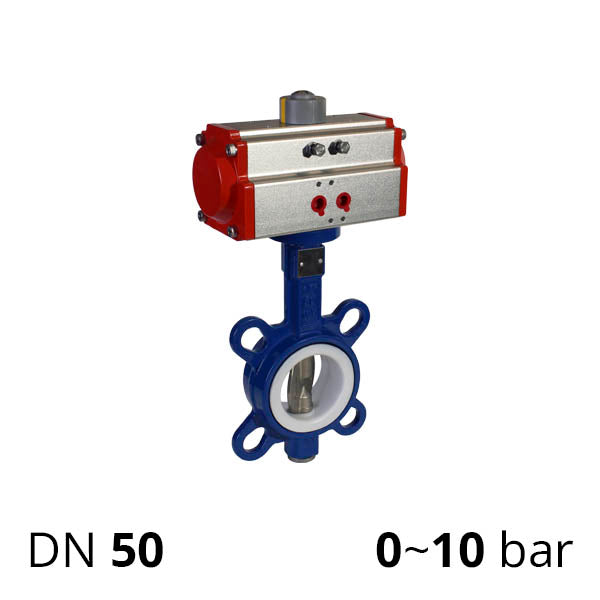

Disc Butterfly Valve with Pneumatic Actuator Ru 10 DN 50 series SCBF-D674-10XEC/10XES/10XFS-50-RAT052/063 is a "butterfly" type valve with cast stainless disc CF8 or CF8M — grades of stainless steel equivalent to food-grade steels AISI 304/316 SS. The wafer disc is designed for mounting between pipe flanges d 100mm and is equipped with a pneumatic actuator of double action SC-RAT052 or SC-RAT063.

The butterfly valve with pneumatic control DN 50 series SCBF-D674-10XEC/10XES/10XFS-50-RAT052/063 is intended for water, liquids, or gas whose chemical composition according to the compatibility table does not react with CF8/CF8M and the chosen seat material — EPDM or PTFE.

Main parameters of pneumatic-controlled stainless disc butterfly valve SCBF-D674-10XEC/10XES/10XFS-50
DN	50 mm
Nominal Pressure	Ru 10 bar (1 MPa)
Body Material	WCB (carbon steel)
Disc Material	CF8 or CF8M as per ASTM A351 (equivalents SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95° C
PTFE Temperature Range	from −40 to 160° C
Mounting Thickness	41 mm
Actuator Model	SC-RAT052 or SC-RAT063
Action Type SC-RAT052/SC-RAT063	Double-acting
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
Force SC-RAT052 at 6 bar	24.96 Nm
Force SC-RAT063 at 6 bar	43.92 Nm

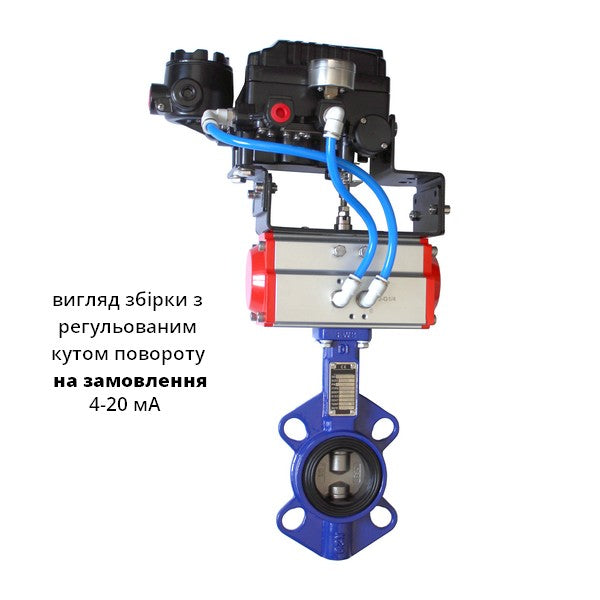

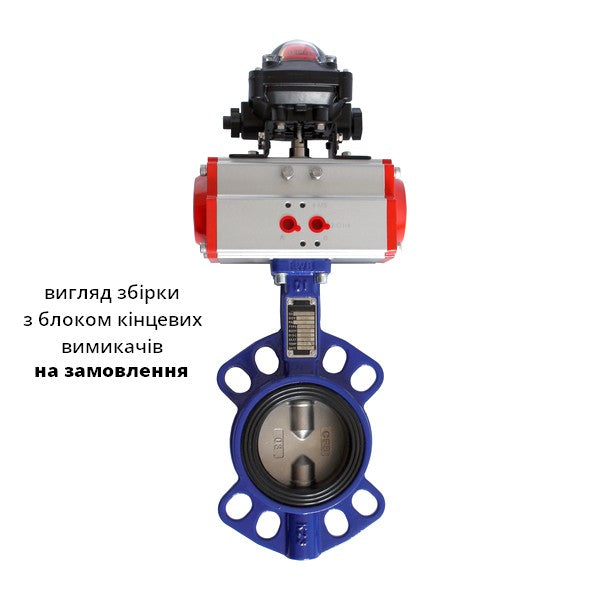

In addition to the water/gas butterfly valve from Specialist, you can purchase distributors of the Namur 5/2 standard for pneumatic actuator control, silencers, fittings, end switch blocks, positioners.
