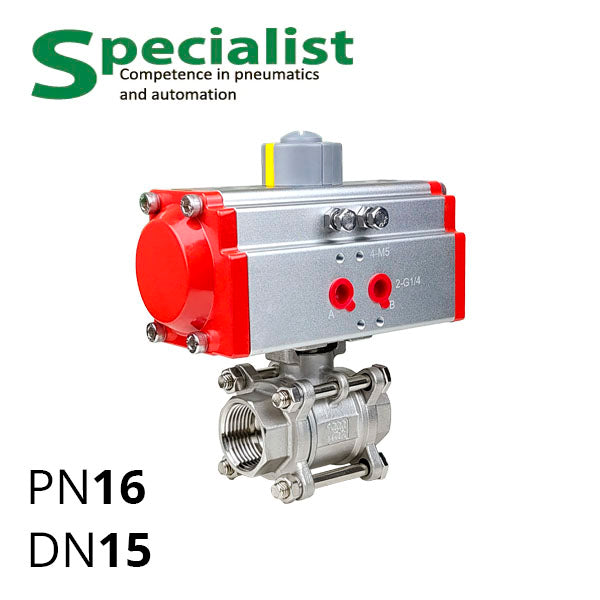

Ball valve ½″ stainless PN16 DN15 with pneumatic drive SCBV-Q611

Name: Ball valve ½″ stainless PN16 DN15 with pneumatic drive SCBV-Q611
Brand: Specialist
SKU: SCBV-Q611F-16FC-15-RAT032
Price: 2908.02 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1/2

Model

Manufacturer

Specialist

from 2 908,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-15-RAT032

Ball valve ½″ stainless PN16 DN15 with pneumatic drive SCBV-Q611

Diameter of conditional passage=15 Thread size=G 1/2

SCBV-Q611F-16FC-15-RAT032

2 908,02 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1/2"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 15

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

With pneumatic drive

Description

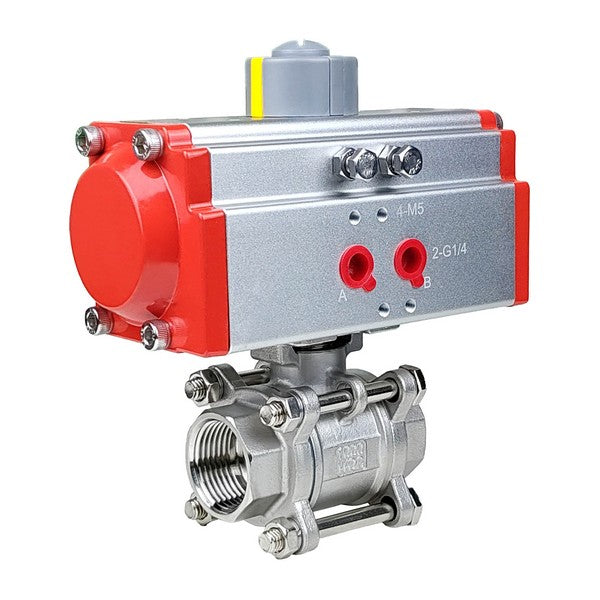

Equipped with a pneumatic actuator, the three-piece ball valve DN 15 with thread 1/2″ femaleSCBV-Q611F-16FC-15-RAT032 ensures perfect sealing under high pressure compared to butterfly valves, while the pneumatic actuator is more reliable than an electric drive and offers higher speed and safety.

Pneumatically controlled stainless steel ball valves are well-suited for lines dosing and dispensing beverages, viscous food mixtures, oils, various technical oils, petroleum products, and chemicals. Check the compatibility of the liquid or gas composition with the valve's materials: PTFE and AISI 304. If necessary, call and order a valve from Specialist with materials resistant to your medium.

Pneumatic Actuated Ball Valve DN15
Valve Model	SCBV-Q611F-16FC-15
Variety	Two-way ball valve, three-way on request
Connection	Thread G 1/2″, flange-mounted ball valve on request, for welding, clamp-on
Nominal Diameter	DN 15
Ball Diameter	Full Bore
Sealing Class	A
Nominal Operating Pressure	PN16 (16 bar, 1.6 MPa); up to PN40 on request
Operating Temperature	from -40 to 180°C (without fluid freezing)
Pneumatic Actuator Model	SC-RAT032
Type of Pneumatic Actuator	Double acting (single acting on request)
Body and Ball Material	Stainless Steel Grade 304 (cast iron, steel 316 on request)
Seat Seal Material	PTFE (EPDM on request)
Working Medium	Water, oil, gas

Basic Assembly of Pneumatic Actuated Valve DN15 and Additional Equipment

The basic assembly of a pneumatic actuated ball valve for DN15 manages in "open-close" mode, while installing an additional pneumatic positioner allows flow regulation.
A spring return can be added to the pneumatic actuator for automatic valve opening or closing in case of power failure and pressure drop.
To control the pneumatic actuator via electric signals from the controller, a pneumatic divider with installed pneumatic mufflers can be mounted on the body.

You can call and order a pneumatic actuated ball valve from Specialist with all accompanying components.
