Electric Actuated Ball Valves

Specialist Electric Actuated Ball Valve — an automated shut-off and regulating valve operating on an electric signal 4…20 mA, 0…10 V or 1…5 V, capable of not only shutting off but also regulating the flow of water, liquids, or gases. Available with additional heating function for freeze protection. Powered by 24V, 110V, or 220V.

The “Specialist” company sells regulated electric actuated ball valves for various industries: not only for water supply but also designed for high pressure, high temperatures, or aggressive environments. Our range includes many full-bore valve options — larger than normal, with the ball's hole diameter matching the nominal pipe size to ensure minimal flow obstruction and pressure drop.

Popular Specialist Custom Electric Actuated Ball Valves

Flanged Two-Way Electric Operated Valves

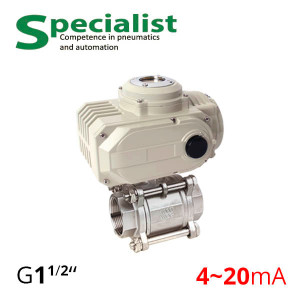

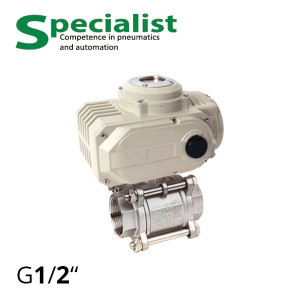

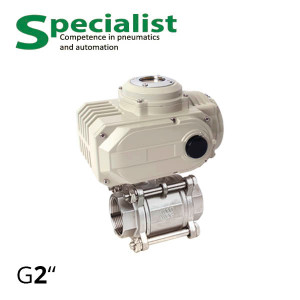

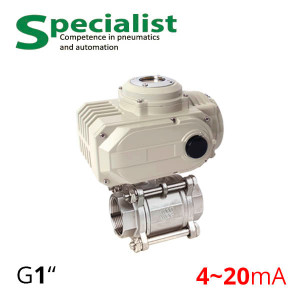

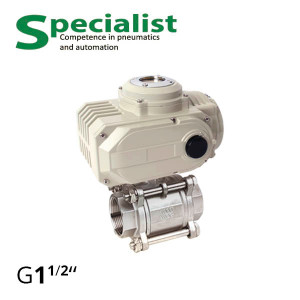

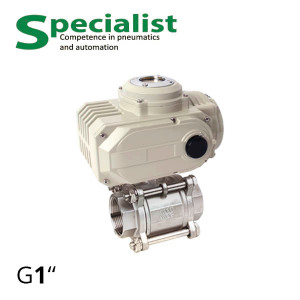

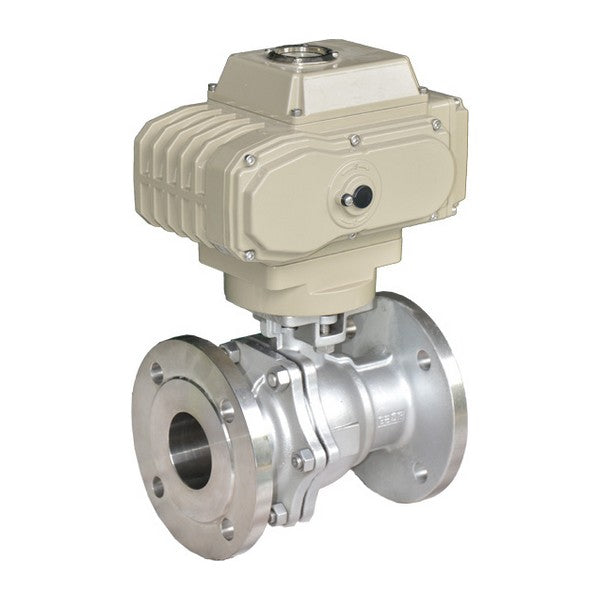

SCBV-Q641

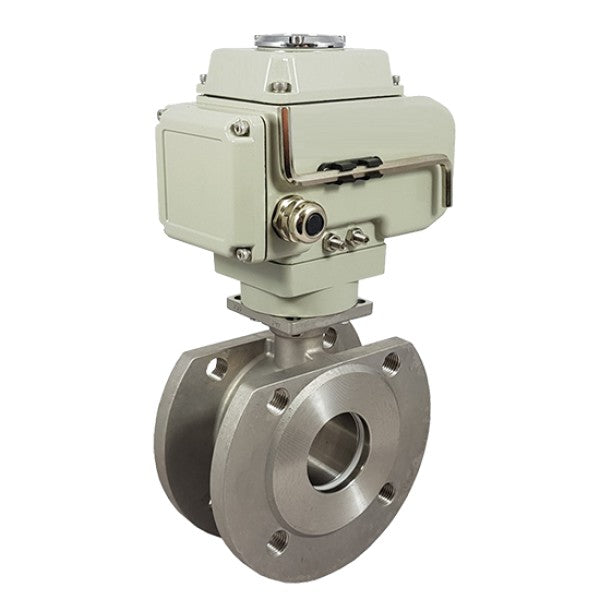

SCBV-Q672

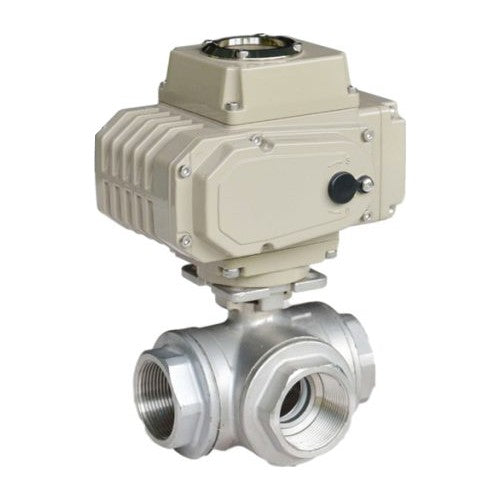

Threaded Three-Way Valves with Electric Drive

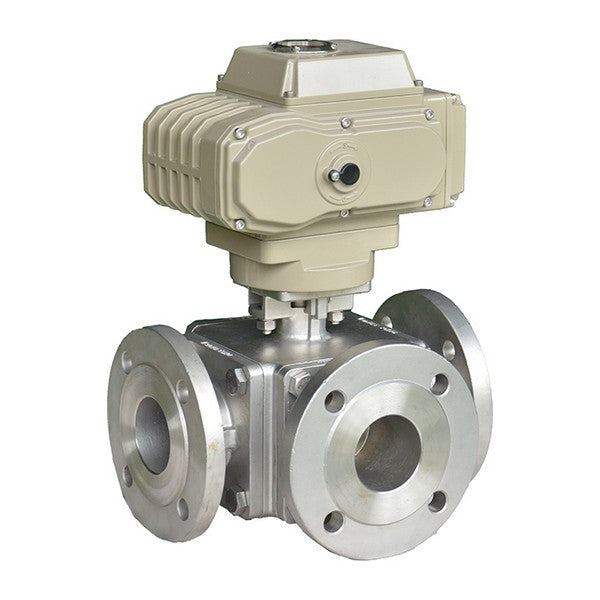

Flanged Three-Way Valves

Electric Ball Valve Control IP67 SC-HL

Industrial ball valve electric actuators series SC-HL are bolted onto a standardized flange marked as F05, where the numbers denote the size according to ISO 5211. The drive is connected to a standard 220 Volt controller network for motor power and heating functions. Additionally, there are two types of control:

• Regulating electric ball valve can be stopped in an intermediate half-open position proportionately to the electric signal 4…20 mA, 1…5 V or 0…10 V, thus managing the feed level of the operating medium to control level, pressure, or temperature in the tank. Actuators are marked with the letter “A” at the end (e.g. SC-HL-05-A);
• Electric shut-off ball valve is cheaper but operates in an “open-close” mode.
• Electromechanical ball valve includes additional mech. control (handwheel) attached to the actuator.

If you require a normally closed or open electric ball valve, an air actuated valve might be more suitable. Model SC-RST has return springs in case of power failure. Pneumatics is also more reliable, less prone to failure, and easier to maintain than motorised valves.

Control Schemes for Electric Actuated Valves

Scheme “A”

The open or closed position of the regulated electric valve is controlled by standard signals via an external PLC (default 4-20 mA).

• single-phase power: connect the “N” terminal to neutral, “L” to phase
• input signals: “+IN” and “-IN”
• output signals: “+OUT” and “-OUT”

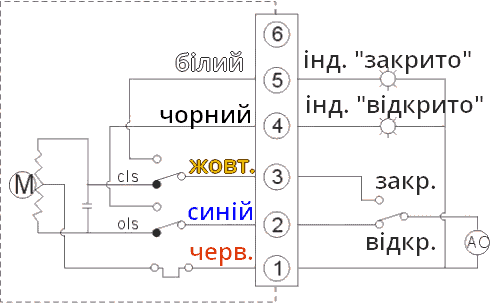

Scheme “B” for Electric Actuated Valve

The open or closed position of the shut-off electric valve is implemented by circuit switching:

1. neutral;
2. switch “open”;
3. switch “closed”;
4. state indication “open”;
5. state indication “closed”;
