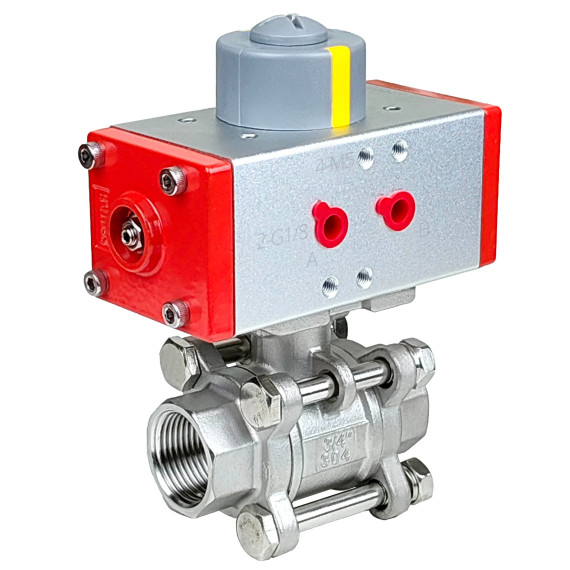

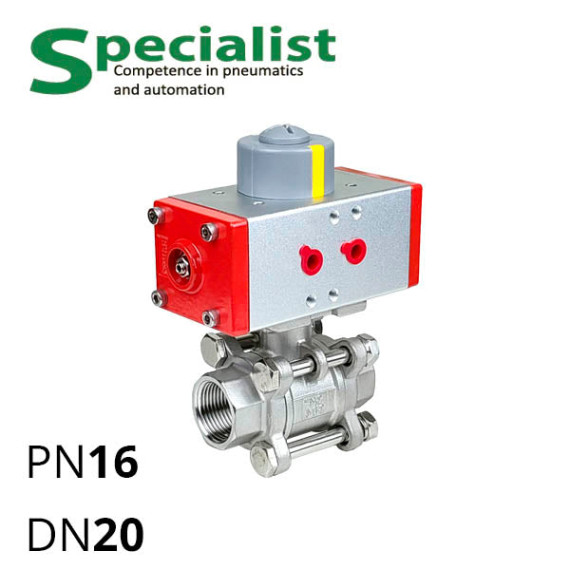

Ball valve ¾″ stainless PN16 DN20 with pneumatic drive SCBV-Q611

Name: Ball valve ¾″ stainless PN16 DN20 with pneumatic drive SCBV-Q611
Brand: Specialist
SKU: SCBV-Q611F-16FC-20-RAT052
Price: 4195.56 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 3/4

Model

Manufacturer

Specialist

from 4 195,56 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-20-RAT052

Ball valve ¾″ stainless PN16 DN20 with pneumatic drive SCBV-Q611

Diameter of conditional passage=20 Thread size=G 3/4

SCBV-Q611F-16FC-20-RAT052

4 195,56 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 3/4"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 20

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

With pneumatic drive

Description

Equipped with a pneumatic actuator, the three-piece ball valve DN 20 with thread f-f 3/4″SCBV-Q611F-16FC-20-RAT052 provides perfect sealing under high pressure compared to butterfly valves, and the pneumatic drive is more durable than the electric drive and safer, with higher speed.

Pneumatically operated stainless steel ball valves are suitable for dosing and filling lines of beverages and viscous food mixtures, oil, various technical oils, petroleum products, and chemicals. Check compatibility of the liquid or gas composition with the valve materials: PTFE and AISI 304. Call and order from Specialist for a valve with materials resistant to your environment if necessary.

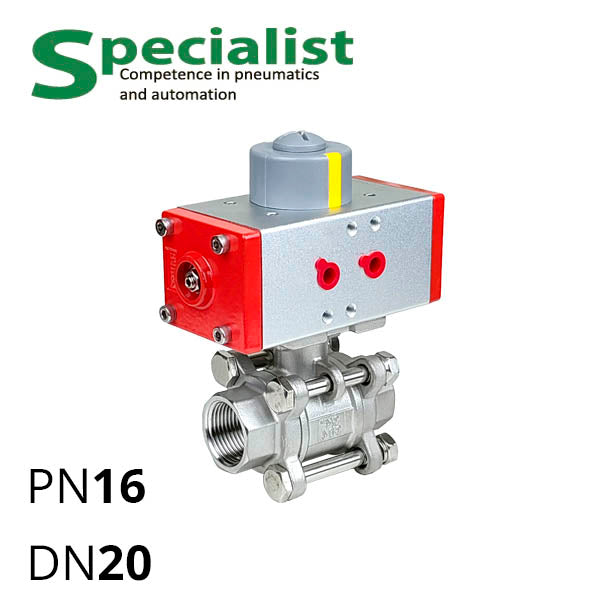

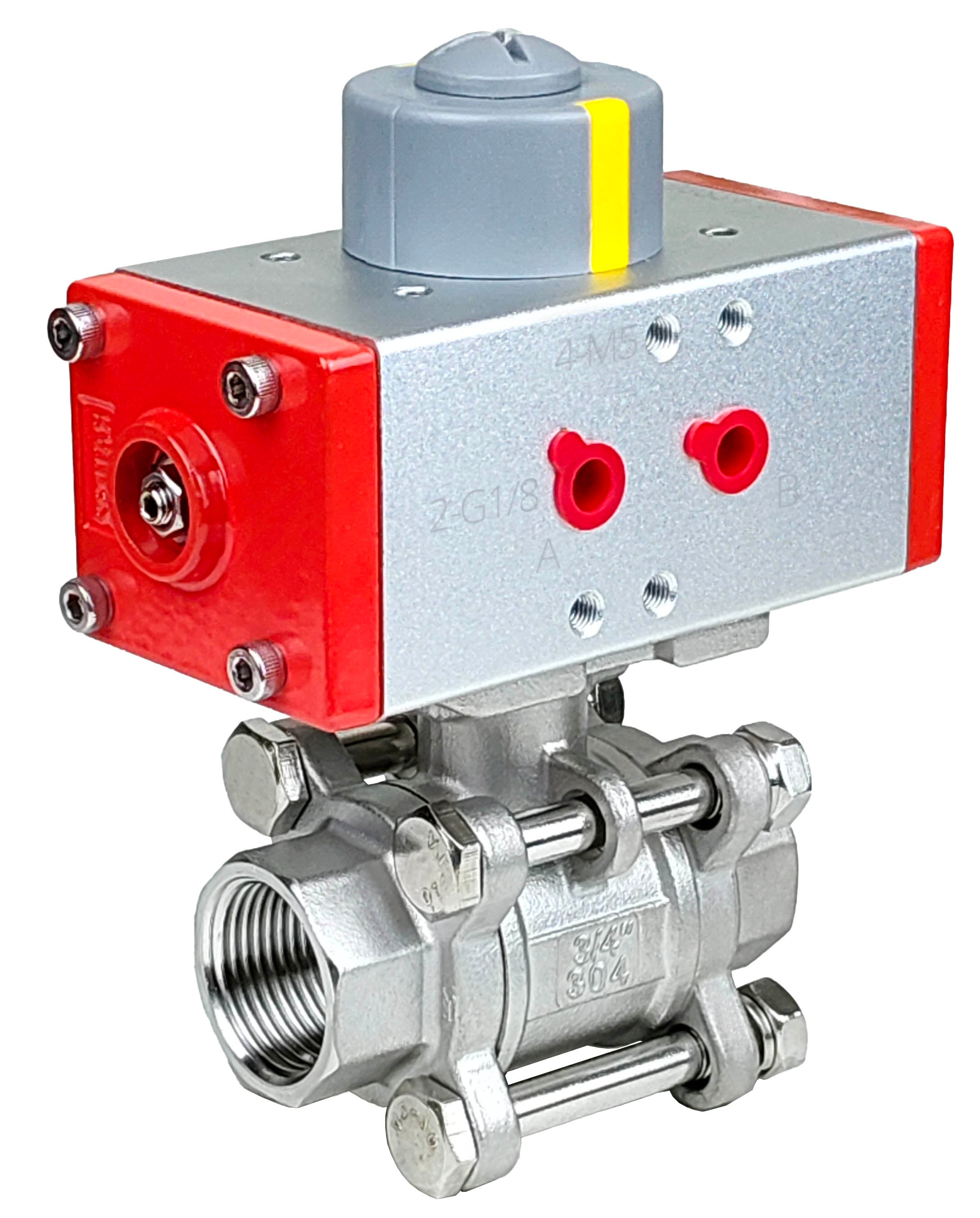

Ball Valve with Pneumatic Drive DN20
Valve Model	SCBV-Q611F-16FC-20
Type	Two-way ball valve, three-way on order
Connection	Thread G 3/4″, flange ball valve, welding, clampable on order
Nominal Diameter	DN 20
Ball Diameter	Full bore
Sealing Class	A
Nominal Working Pressure	PN16 (16 bar, 1.6 MPa); PN40 on order
Working Temperature	from -40 to 180°C (non-freezing liquid)
Pneumatic Actuator Model	SC-RAT052
Type of Pneumatic Actuator	Double-acting (single-acting on order)
Body and Ball Material	Stainless steel grade 304 (cast iron, steel 316 on order)
Seat Seal Material	PTFE (EPDM on order)
Working Medium	Water, oil, gas

Base Assembly of Pneumatic Actuated Valve DN20 and Complements

The basic assembly of the DN20 pneumatic actuated ball valve operates in an “open-close” mode, and with the installation of an additional pneumatic positioner, it allows for flow regulation.
The pneumatic actuator can be equipped with a spring return for automatic opening or closing of the valve in case of power outage and pressure drop.
To control the pneumatic actuator via electrical signals from the controller, a pneumatic distributor with installed pneumatic silencers can be mounted on the body.

You can call and order a pneumatic actuated ball valve from Specialist with all accompanying components.
