Knife gate valve DU 125 cast iron with pneumatic drive SCBF-PZ673X-10JC-125-P

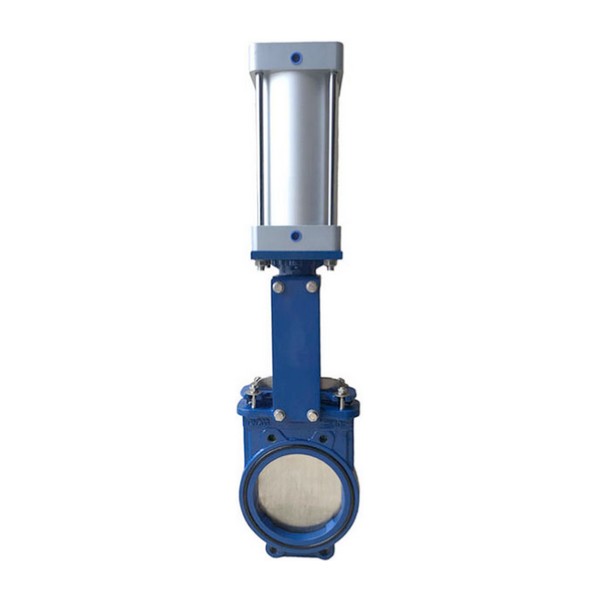

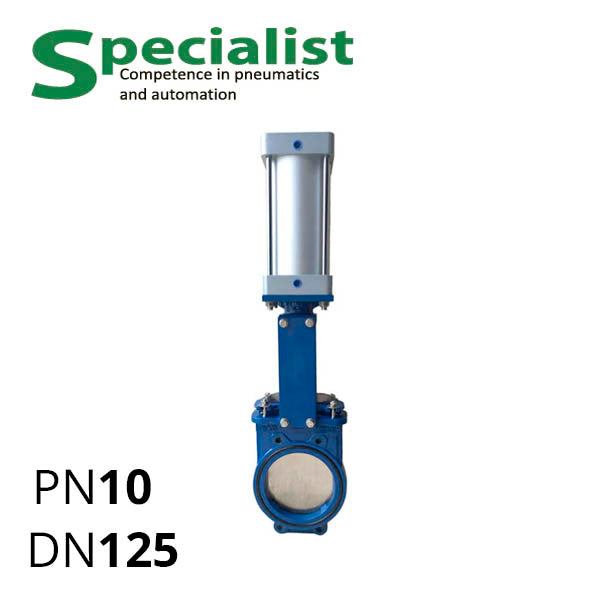

Model SCBF-PZ673X-10JC-125-P is a cast iron wedge gate valve wafer type DN125 PN10 with pneumatic actuator of linear bidirectional action. This bidirectional knife gate DN 125 made of cast iron is designed to shut off working environments with or without pressure 9.8 bar and temperatures up to 80°C, including for gas, liquids, and bulk materials.

Features of the SCBF-PZ673X-10JC-125-P

• Offers high class of sealing and reliability due to NBR seal around the entire perimeter of the soft seat, which has a steel wire core and better withstands loads.
• WCB is often mistaken for cast iron, but it's cast carbon steel, which is stronger, can operate under pressure and high temperatures — making it more suitable for industrial knife gate valves DN-125.

Modification of design and materials on request for SCBF-PZ673X-10JC-125-P

We are manufacturers of pneumatic actuators and non-standard valves, importing quality factory-produced shut-off fittings directly from the plant, so we can offer the following knife gate valve modifications (prices available on request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more resistant to wear and maximally sealed.
• Stainless steel disc for contact with more aggressive environments.
• PN16 with thicker walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings and air tube for connection, pneumatic distributor for control, air preparation and mounting fasteners, which you can find in the Specialist online store — or order their selection from the sales manager.
