Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series

Name: Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-80-RAT063
Price: 5485.02 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 5 485,02 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-80-RAT063

Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-80-RAT063

5 485,02 UAH

In Stock

SCBF-D674-10XES-80-RAT063

Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-80-RAT063

5 657,34 UAH

In Stock

SCBF-D674-10XFS-80-RAT075

Disc rotary valve DU 80 stainless inter-flange with pneumatic drive SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-80-RAT075

7 802,58 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

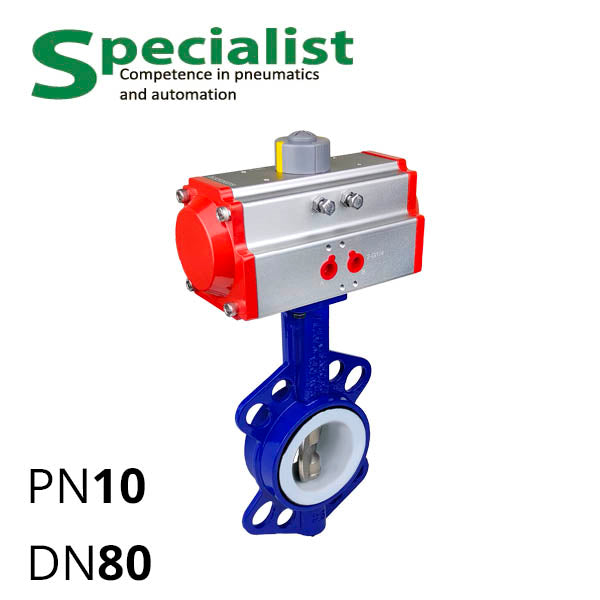

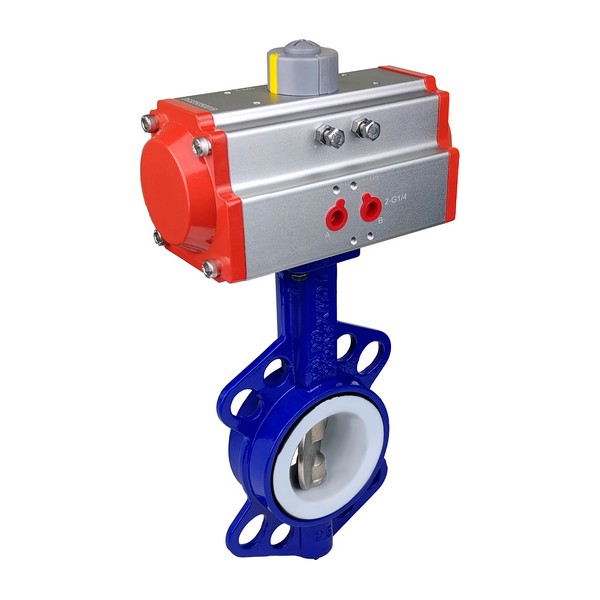

Wafer stainless steel butterfly valve series SCBF-D674-10XEC/10XES/10XFS-80-RAT063/RAT075 is a dismountable repairable butterfly valve with a body of cast carbon steel WCB and a disc of food-grade stainless steel CF8 or CF8M (equivalent to AISI 304/316 SS), featuring a nominal diameter DN 80 mm and supplied with installed bi-directional rotary pneumatic actuator for pipeline equipment RAT063 or RAT075.

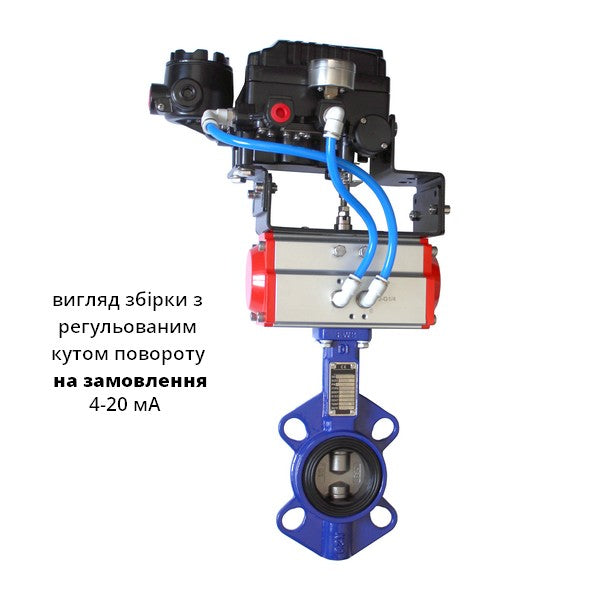

These wafer butterfly valves DN 80 are shut-off regulating equipment — they can be used in "open/close" mode, and with a positioner added can achieve intermediate positions for regulating the volume of non-aggressive gases, air, water, liquids with low acid and alkali concentration, chemical mixtures compatible with CF8/CF8M and EPDM/PTFE. Allowable operating pressure (by default) — PN up to 10 bar.

Table — Main parameters of the disc swing valve SCBF-D674-10XEC/10XES/10XFS-80-RAT063/RAT075
DN	80 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M according to ASTM A351 (equivalent SS316)
Sealing Material	EPDM or PTFE
EPDM Temperature Range	from -30 to 95°C
PTFE Temperature Range	from -40 to 160°C
Installation Thickness	45 mm
Pneumatic Actuator Model	SC-RAT063 or SC-RAT075
Actuator Operation Mode	Bi-directional
Air Connection	1/4″ hole, recommended distributor SC-DN (Namur)
Torque SC-RAT063 at 6 bar	43.92 Nm
Torque SC-RAT073 at 6 bar	70.5 Nm

The company Specialist (Ukraine) directly imports shut-off and regulating equipment from China and Europe, and also has in stock manual, electric, and pneumatic actuators, flanges, and other components for pipeline equipment — positioners, etc. With us, you can buy the valve you need in the required sizes and materials at a fair price.
