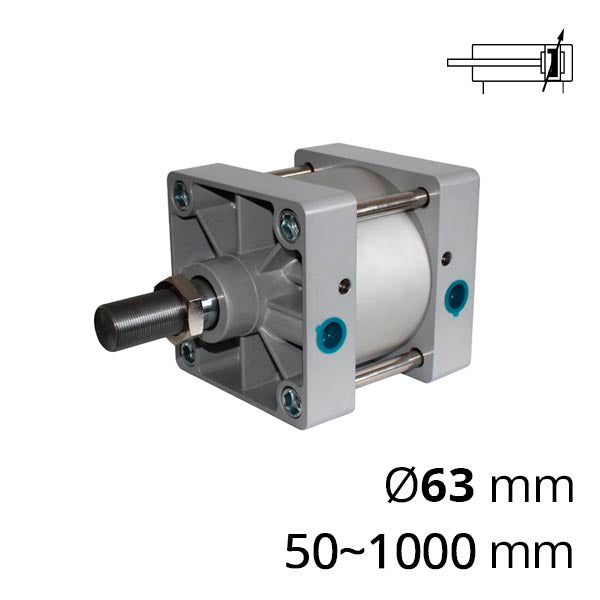

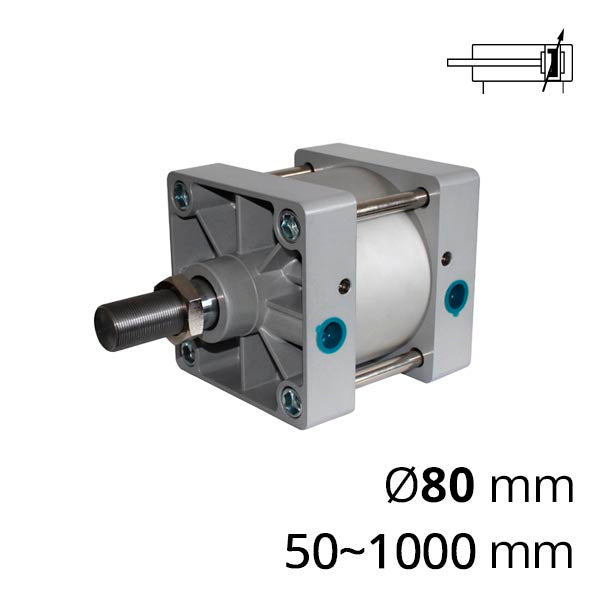

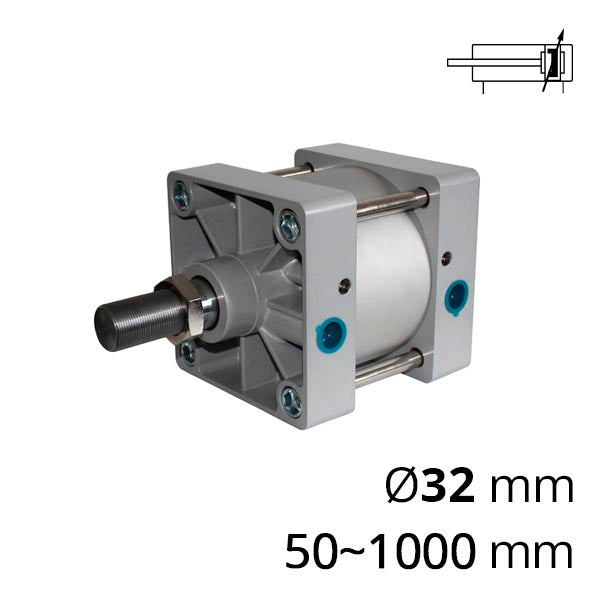

Double-acting power pneumatic cylinder with single rod series SC-SC can perform tasks of moving heavy objects or pressing with great force — up to 24,429 Newtons (Ø200 mm, 9 bar). It is manufactured to dimensions according to standard ISO 6430. Pneumatic cylinders of this type are often used in Chinese-made machines — for example, SC-SC-50x25 is used for guillotine edge banding machines MFBJ-503II or MFBJ-350, and SC-SC-63x110 — for sawing machines with CNC KDT Machinery.
We manufacture SC-SC pneumatic cylinders in Ukraine with piston diameters from 32 to 320 mm and tandems and triads based on them to double the force. Stroke length of pneumatic cylinders – from 5 to 1500 mm depending on the piston diameter (see table below).
The built-in adjustable damper in the cylinder ensures a smooth stop of the piston at the end of the stroke to absorb the impact force against the front or rear cap. With a special screw, the damping can be adjusted to achieve a higher or lower degree of piston braking.
Double action involves controlling the extension-retraction of the rod by supplying-releasing compressed air through two threaded ports from G1/8 to 1/2″. Pressure up to 12 bar is allowed.
| Diameter, mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Action | Double | |||||||||||
| Type | Single Rod | |||||||||||
| Working Medium | Air (after 40 μm filter) | |||||||||||
| Working Pressure Range | 1~9 Bar | |||||||||||
| Max Input Pressure | 12 Bar | |||||||||||
| Connection Thread | G1/8” | G1/4” | G3/8” | G1/2” | G3/4” | |||||||
| Working Temperature Range | -10 ~ 70 °C (with dry, moisture-free air) | |||||||||||
| Damping, mm | 20 | 26 | 45 | |||||||||
| Max Stroke Length, mm | 1000 | 1200 | 1500 | |||||||||
| Type of Magnetic Sensor | SC-CMS-G/SC-DMS-G | |||||||||||
| Sensor Mount Type | SH-32 | SH-40 | SH-50 | SH-63 | SH-80 | SH-10 | SH-125 | SH-160 | SH-200 | |||
Based on SC-SC pneumatic cylinders, we can manufacture tandem, triad pneumatic cylinders to increase force.
