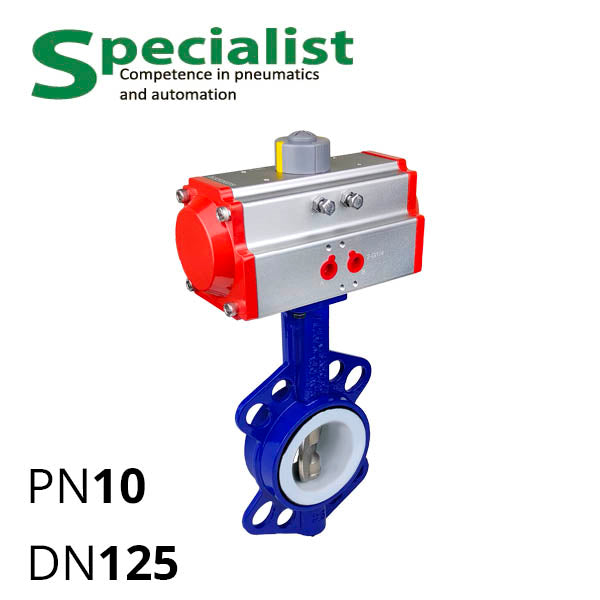

Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Name: Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-125-RAT075
Price: 8046.30 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 8 046,30 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-125-RAT075

Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-125-RAT075

8 046,30 UAH

In Stock

SCBF-D674-10XES-125-RAT075

Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-125-RAT075

8 304,78 UAH

In Stock

SCBF-D674-10XFS-125-RAT092

Disc rotary valve DU 125 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-125-RAT092

12 120,54 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

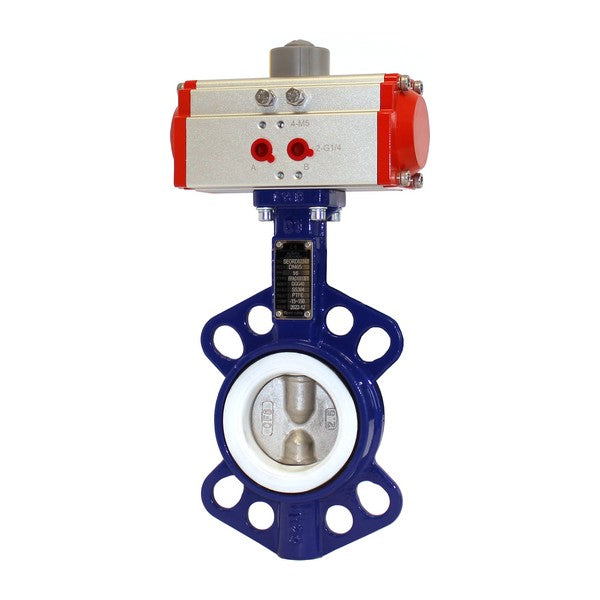

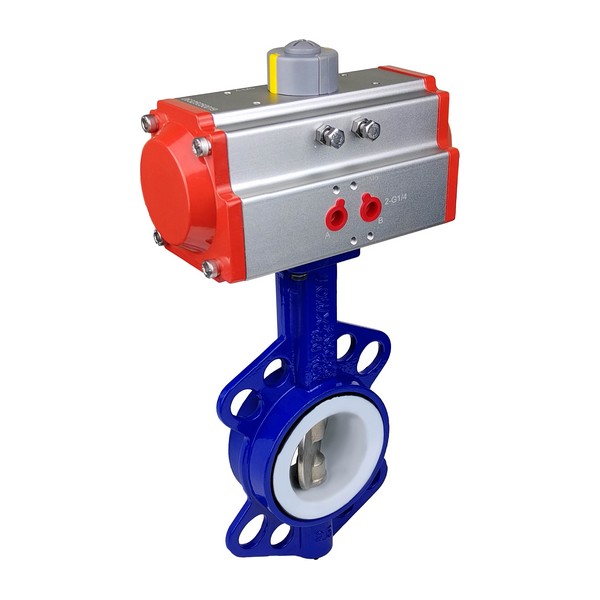

Pneumatically Actuated Wafer Butterfly Valve PN 10 DN 125 Series SCBF-D674-10XEC/10XES/10XFS-125-RAT075/RAT092 is a butterfly type valve with a stainless steel cast disc CF8/CF8M (equivalent to AISI 304/316) for mounting between pipe flanges d 125mm. The wafer valve is equipped with a double-acting pneumatic actuator SC-RAT075 or RAT092.

The pneumatically actuated butterfly valve SCBF-D674-10XEC/10XES/10XFS-125-RAT075/RAT092 is designed for water, liquid, or gas whose chemical composition as per compatibility table does not react with CF8/CF8M and selected seat material — EPDM or PTFE.

Table — Main Parameters of Stainless Steel Pneumatically Actuated Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-125-RAT075/RAT092
Nominal Diameter	DN125 (125 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M according to ASTM A351 (equivalent to SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95°C
PTFE Temperature Range	from −40 to 160°C
Installation Thickness	56 mm
Control Type	With Pneumatic Control
Pneumatic Actuator Model	SC-RAT075 or SC-RAT092
Actuator Action Mode	Double-Acting
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
Actuation Torque RAT075 at 6 bar	70.5 N⋅m
Actuation Torque RAT092 at 6 bar	136.4 N⋅m
Shaft Connection	Square-to-Star Adapter 14 to 17 mm SCBF-ROD-17x14 (included)
