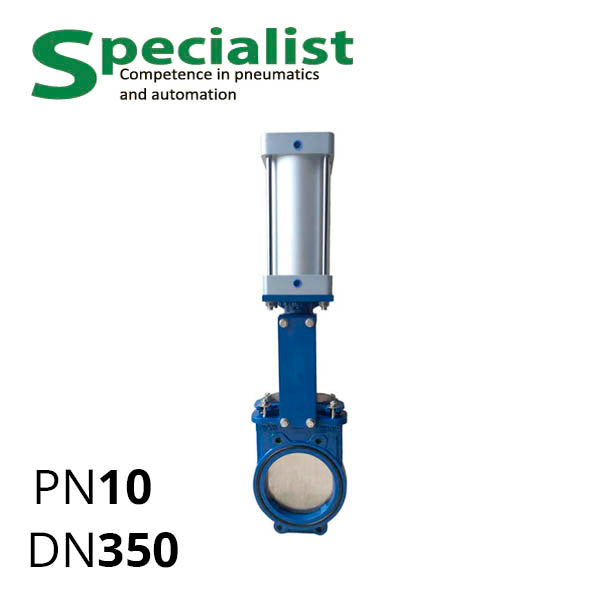

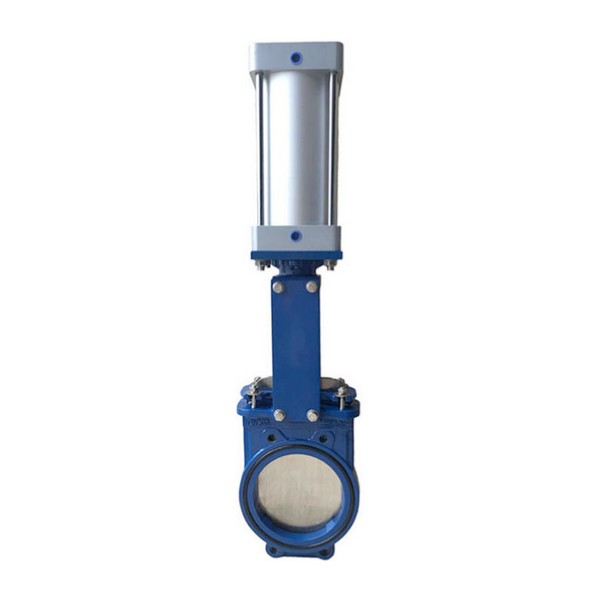

Knife gate valve DU 350 cast iron with pneumatic drive SCBF-PZ673X-10JC-350-P

Model SCBF-PZ673X-10JC-350-P is a cast iron wafer wedge gate valve DN350 PN10 with a linear pneumatic actuator two-way action. This bidirectional knife valve DN 350 made of cast iron is designed to block working media without pressure or under pressure of 9.8 bar and temperatures up to 80° C, including for gas, liquids, and bulk materials.

Features of the SCBF-PZ673X-10JC-350-P structure

• It boasts a high degree of sealing and reliability thanks to the NBR seal around the perimeter of the soft seat, which has a steel wire core and better withstands loads.
• WCB is confused with cast iron, but it is cast carbon steel, which is stronger, can operate under pressure and at high temperatures — making it more suitable for industrial knife gate valves DN-350.

Custom Modification of Design and Materials SCBF-PZ673X-10JC-350-P

We are manufacturers of pneumatic actuators and non-standard valves, importing high-quality serially produced shut-off valves directly from the factory, so we can offer the following modifications of the knife gate valve (price on request):

• Rubber-coated wedge with EPDM, FKM (Viton), NBR. Coating and vulcanization make the knife gate valve more wear-resistant and maximally sealed.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings, and air tube for connection, pneumatic distributor for management, air preparation, and mounting brackets, which you will find in the Specialist online store — or order them selection from a sales manager.
