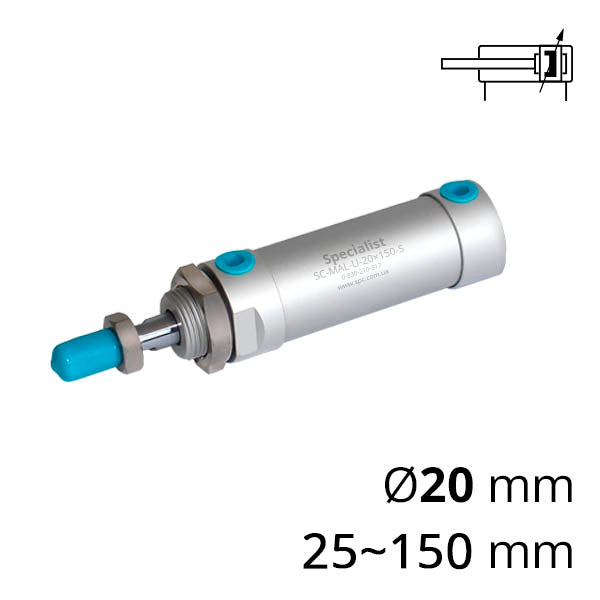

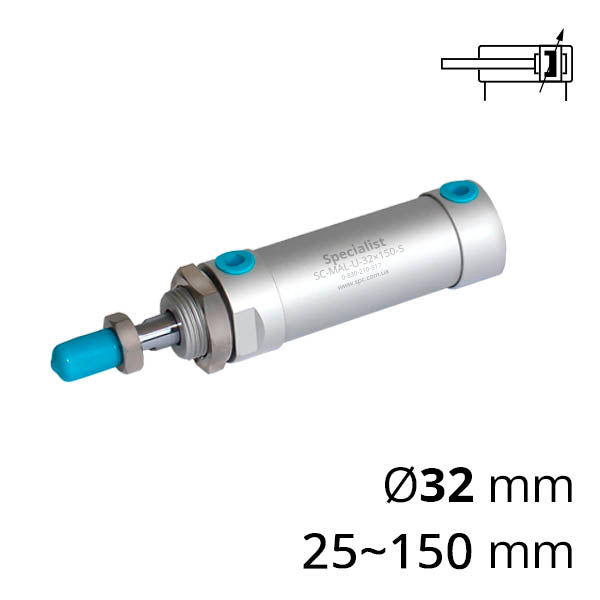

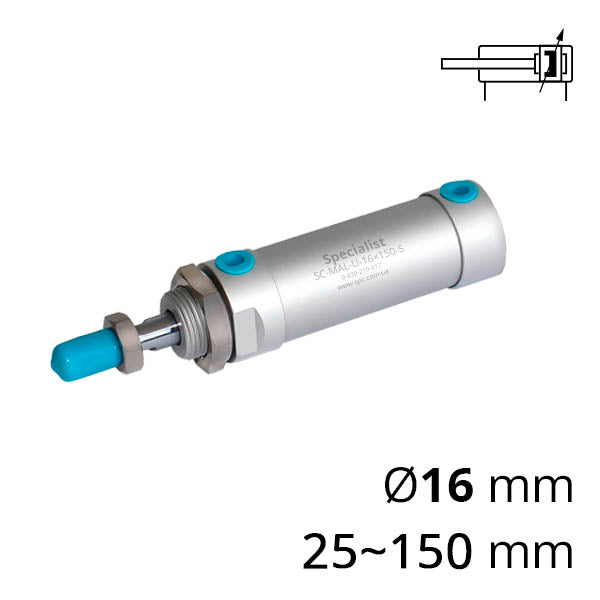

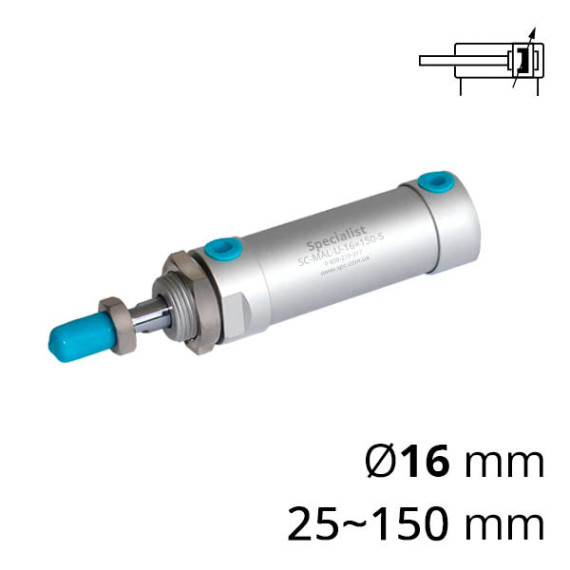

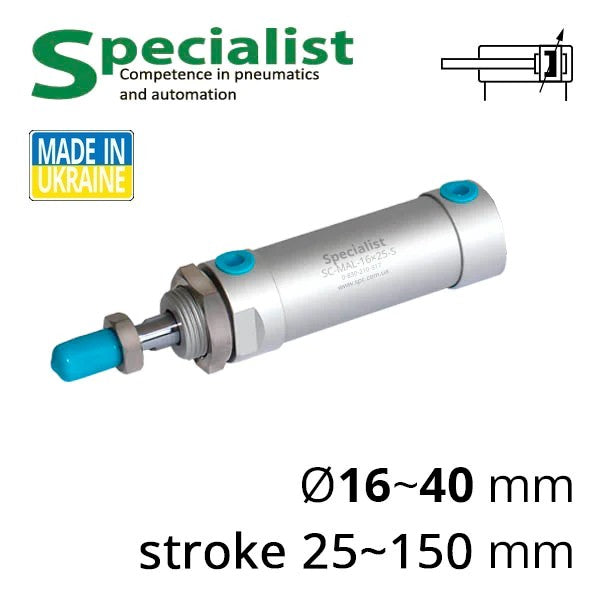

SC-MAL-U are detachable double-acting pneumatic cylinders with a round sleeve, piston diameter from 16 to 40 mm and single-acting rod. Unlike the main series of pneumatic cylinders MAL the SC-MAL-U execution is more compact due to a shortened version of the rear cap without a mounting lug.
By default, SC-MAL-U cylinders are supplied with a magnet, on request — without it.
| Diameter, mm | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Connecting Thread | M5 | G1/8″ | G1/8″ | G1/8″ | G1/4″ |
| Maximum Stroke Length | 500 mm | 800 mm | 1200 mm | ||
| Action | Double acting with single-acting rod | ||||
| Working Medium | Air after 40 µm filter | ||||
| Operating Pressure Range | 1~9 bar | ||||
| Max. Input Pressure | 12 bar | ||||
| Operating Temperature Range | -10 ~ 70 °C (for dry air without moisture) | ||||
| Damping | Damping washer | ||||
| Magnetic Sensor Type | SC-CMS-G or SC-DMS-G | ||||
| Sensor Mounting Type | SC-MAL-B-S | ||||
The 'Specialist' company manufactures pneumatic cylinders — SC-MAL-U are produced within 1-3 working days. There is a possibility to design other non-standard products based on the series — pneumatic cylinders with through rod, specific mounts, sizes, and materials upon customer request.
Note that pneumatic cylinders are a returnable item only in case of defect.
