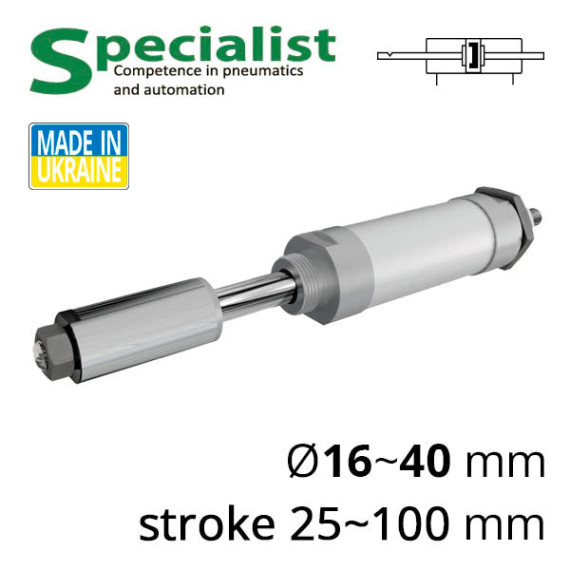

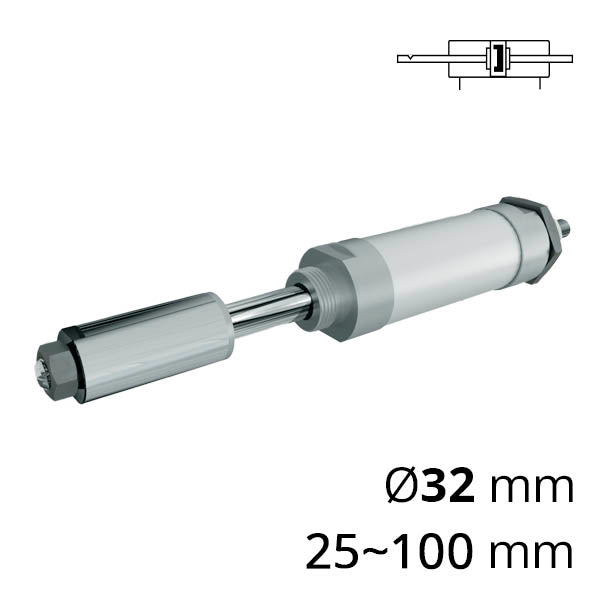

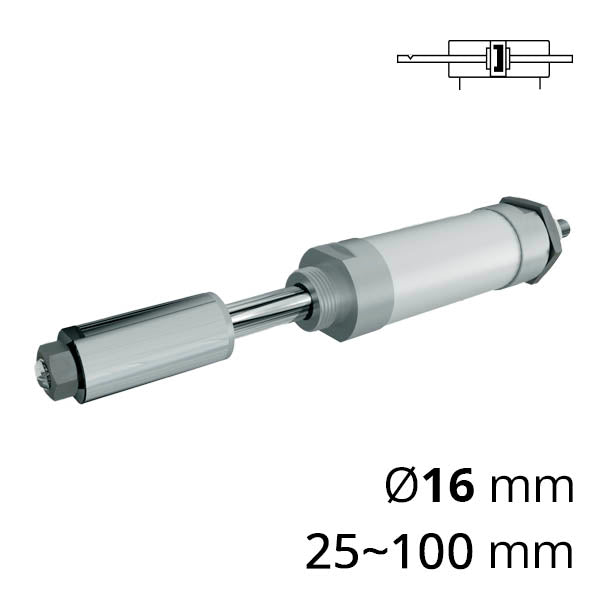

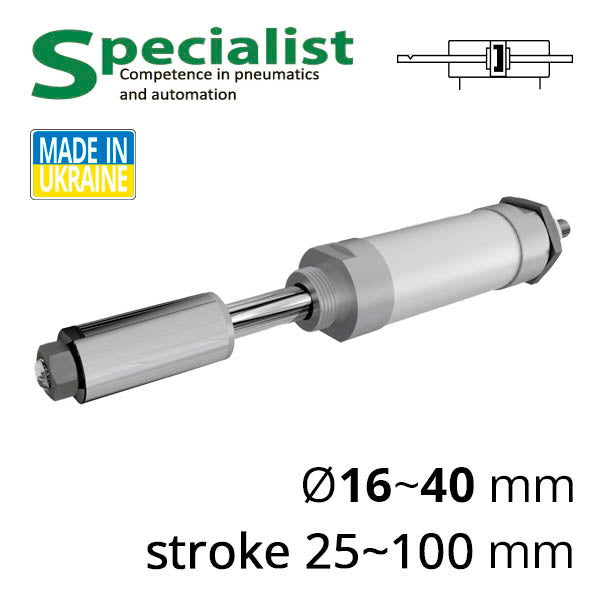

Detachable round double-acting pneumatic cylinders with adjustable stroke SC-MALJ series are manufactured with a piston diameter from 16 to 40 mm and a stroke length up to 100 mm. This type of pneumatic cylinders is often found in machines of Chinese manufacture. By default, SC-MALJ cylinders are supplied with a magnet.
| Diameter, mm | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Connection Thread | M5 | G1/8″ | G1/8″ | G1/8″ | G1/4″ |
| Maximum Stroke Length | 100 mm | ||||
| Action | Double-acting with stroke adjustment | ||||
| Working Medium | Air filtered to 40 µm | ||||
| Operating Pressure Range | 1~9 bar | ||||
| Max. Input Pressure | 12 bar | ||||
| Operating Temperature Range | -10 ~ 70 °C (dry air without moisture) | ||||
| Damping | Damping washer | ||||
| Magnetic Sensor Type | SC-CMS-G or SC-DMS-G | ||||
| Sensor Mounting Type | SC-MAL-B-S | ||||
The company "Specialist" is a manufacturer of pneumatic cylinders — we produce SC-MALJ within 1-3 working days. Custom designs based on this series are possible.
Please note that pneumatic cylinders are a returnable item only in case of malfunction.
