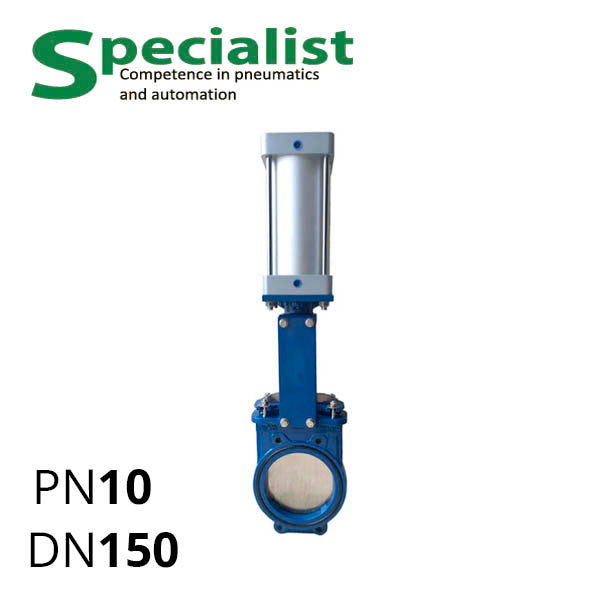

Knife gate valve DU 150 cast iron with pneumatic drive SCBF-PZ673X-10JC-150-P

The Model SCBF-PZ673X-10JC-150-P is a cast iron wedge valve, wafer type DN150 PN10 with pneumatic actuator of linear double-acting type. This bi-directional knife gate valve DN 150 from cast iron is designed to shut off working media under pressure or pressureless conditions at a pressure of 9.8 bar and temperature up to 80° C, including for gas, liquids, and bulk materials.

Features of the SCBF-PZ673X-10JC-150-P

• High sealing class and reliability due to NBR sealing around the entire perimeter of the soft seat, featuring a steel wire core that withstands loads better.
• WCB is often confused with cast iron, but it's cast carbon steel, which is stronger, capable of operating under pressure and high temperatures — making it more suitable for industrial knife gate valves DN-150.

Modification of design and materials on demand SCBF-PZ673X-10JC-150-P

We manufacture pneumatic actuators and custom valves, import high-quality shut-off valves directly from the factory, thus we offer the following modifications to knife gate valves (pricing upon request):

• Rubber coated wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife valve more wear-resistant and highly hermetic.
• Stainless steel disc for more aggressive media contact.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings and air tubing for connection, pneumatic distributor for control, air preparation and mounting hardware, available at Specialist online store — or contact sales manager for selection assistance.
