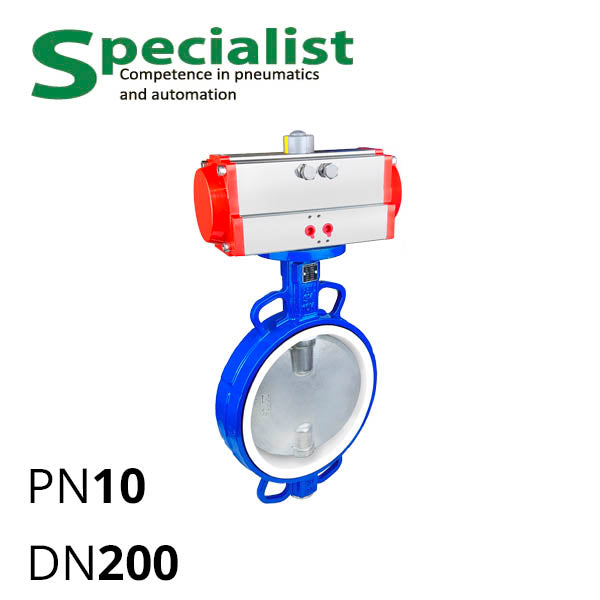

Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Name: Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-200-RAT092
Price: 14088.84 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 14 088,84 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-200-RAT092

Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-200-RAT092

14 088,84 UAH

In Stock

SCBF-D674-10XES-200-RAT092

Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-200-RAT092

15 277,92 UAH

In Stock

SCBF-D674-10XFS-200-RAT105

Disc rotary valve DU 200 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-200-RAT105

18 042,90 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 200

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

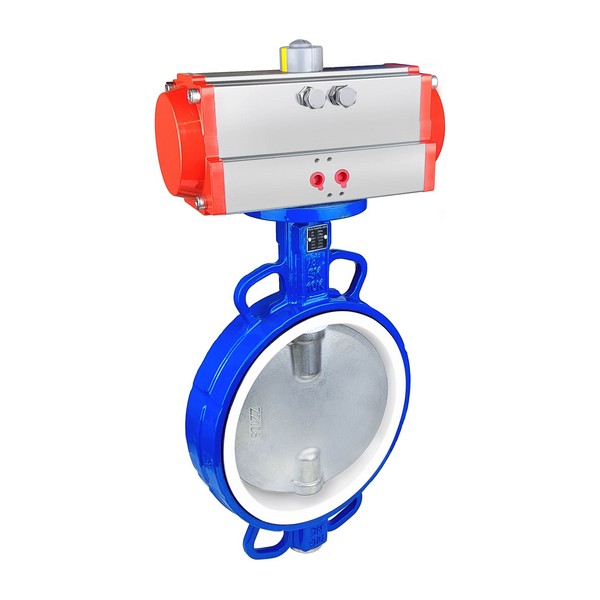

Wafer Disc Butterfly Valve with Pneumatic Control PN 10 DN 200 Series SCBF-D674-10XEC/10XES/10XFS-200-RAT092/RAT105 is a "butterfly" type valve with cast stainless disc CF8/CF8M (equivalent to AISI 304/316) for mounting between flanges on a pipe d 200 mm. The disc shutter is equipped with a double-acting pneumatic actuator SC-RAT092 or RAT105.

The pneumatic control disc valve SCBF-D674-10XEC/10XES/10XFS-200-RAT092/RAT105 is intended for water, liquid or gas whose chemical composition does not react with CF8/CF8M and the chosen seat material — EPDM or PTFE by compatibility table.

Table — Main Parameters of the Pneumatically Operated Stainless Disc Butterfly Valve SCBF-D674-10XEC/10XES/10XFS-200-RAT092/RAT105
Nominal Bore	DN200 (200 mm)
Nominal Pressure of the Working Medium	PN10 (1 MPa, 10 bar)
Body Material	WCB (carbon steel)
Disc Material	CF8/CF8M according to ASTM A351 (equivalent to SS304/SS316)
Seal Material	EPDM or PTFE
EPDM Temperature Range	from −30 to 95°C
PTFE Temperature Range	from −40 to 160°C
Installation Thickness	67 mm
Control Type	With pneumatic control
Pneumatic Actuator Model	SC-RAT092 or SC-RAT105
Pneumatic Actuator Mode	Double-acting
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
Torque RAT092 at 6 bar	136.4 Nm
Torque RAT105 at 6 bar	203.64 Nm

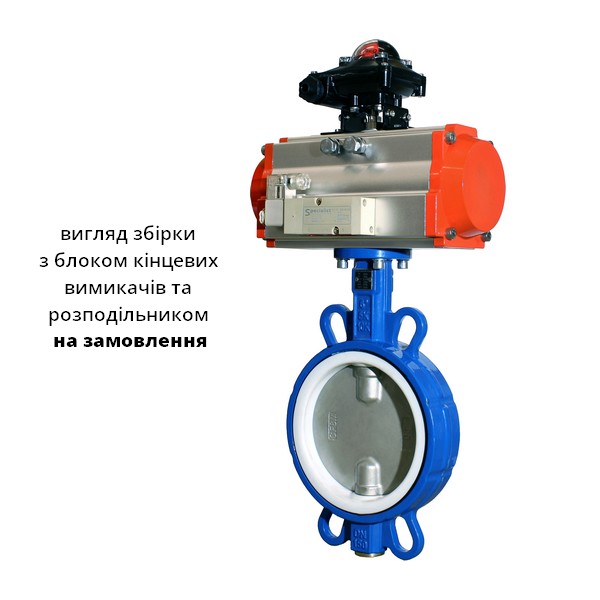

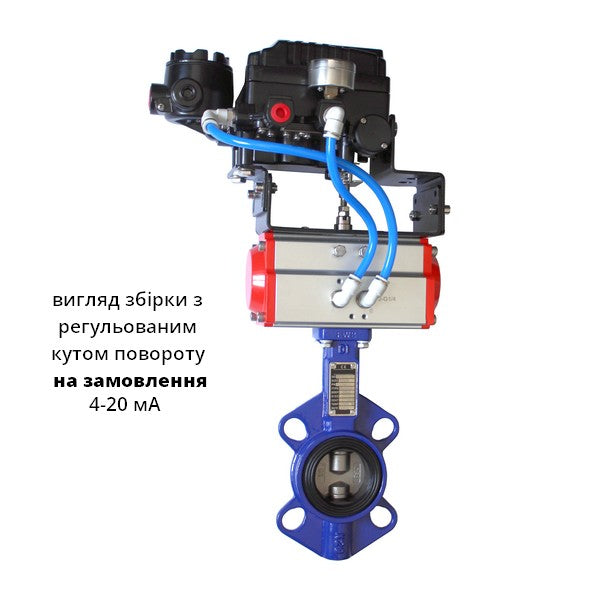

Also, our company Specialist offers standard Namur 5/2 distributors for pneumatic actuator control, silencers, fittings, limit switch boxes, positioners.

Installation of single-acting actuator SC-RST with springs on request — call us for a commercial offer with pricing.
