Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Name: Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-100-RAT075
Price: 6933.54 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 6 933,54 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-100-RAT075

Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-100-RAT075

6 933,54 UAH

In Stock

SCBF-D674-10XES-100-RAT075

Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-100-RAT075

7 192,02 UAH

In Stock

SCBF-D674-10XFS-100-RAT092

Disc rotary valve DU 100 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-100-RAT092

10 696,38 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

52 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 100

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

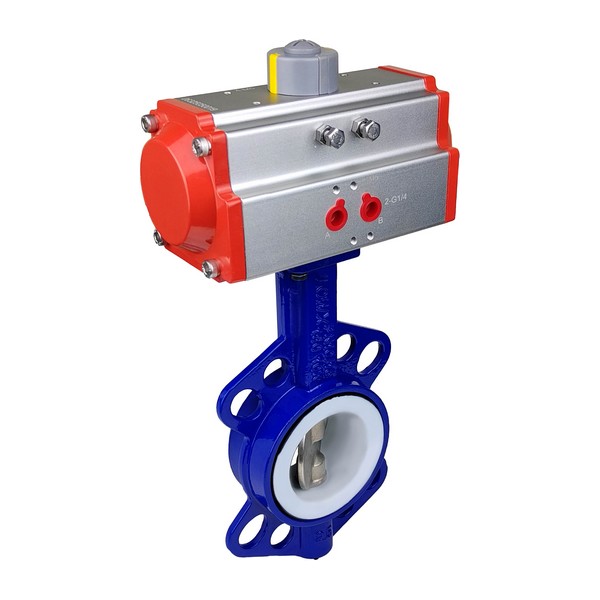

Wafer butterfly valve with pneumatic control PN10 DN 100 series SCBF-D674-10X__-100-RAT075/RAT092 is a butterfly valve with cast stainless disc CF8/CF8M (equivalent to AISI 304/316) for mounting between flanges on a pipe d 100mm. The butterfly valve is equipped with double-acting pneumatic actuator SC-RAT075/RAT092

The butterfly valve with pneumatic control SCBF-D674-10X__-100-RAT075/RAT092 is intended for gas and liquids whose chemical composition does not react with CF8/CF8M and the selected seat material — EPDM or PTFE. For example, as a valve for petroleum products, choose SS316+PTFE, as EPDM is not suitable for oil. Also, PTFE is more inert for acidic and alkaline environments.

Table — Main parameters of the pneumatic-controlled stainless steel butterfly valve SCBF-D674-10X__-100-RAT075/RAT092
Nominal diameter	DN100 (100 mm)
Nominal operating pressure	PN10 (1 MPa, 10 bar)
Body material	WCB (carbon steel)
Disc material	CF8/CF8M according to ASTM A351 (equivalent to SS304/SS316)
Seal material	EPDM or PTFE
EPDM withstand temperature	from −30 to 95° C
PTFE withstand temperature	from −40 to 160° C
Mounting thickness	52 mm
Type of control	With pneumatic control
Actuator model	SC-RAT75/RAT95
Actuator operation	Double-acting
Air connection	1/4″
Recommended control air pressure	from 6 to 8 bar
SC-RAT75 torque at 6 bar	70.5 Nm
SC-RAT95 torque at 6 bar	136.4 Nm
Shaft connection	Square-star adapter from 11 to 14 mm SCBF-ROD-14x11 (included)

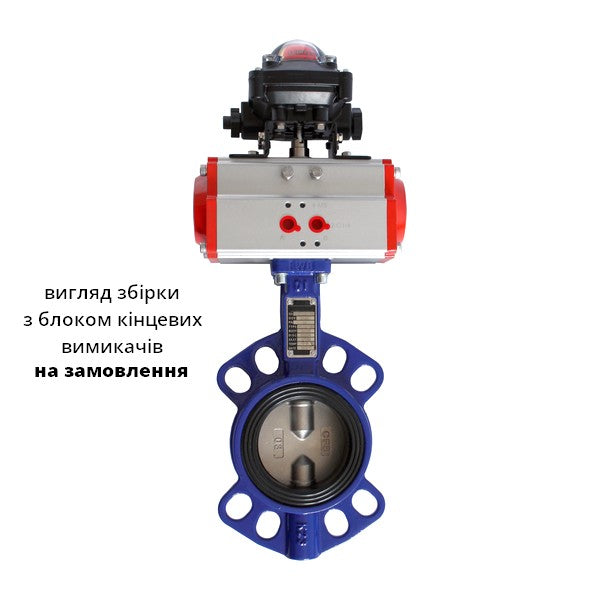

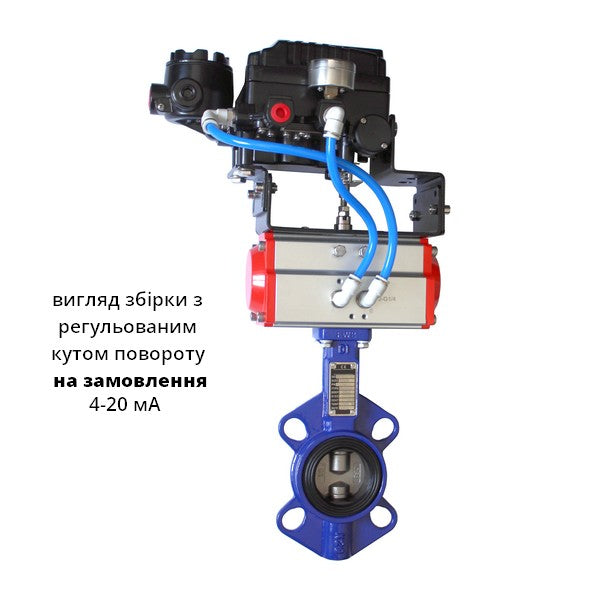

Also in our company Specialist, you can purchase Namur standard 5/2 distributors for pneumatic actuator control, mufflers, fittings, limit switch blocks, positioners.

Installation of single-acting drive SC-RST105 with springs upon request — call us for a commercial offer with a price.
