Disc rotary valve DU 300 stainless inter-flange collapsible with pneumatic drive SCBF-D674

Name: Disc rotary valve DU 300 stainless inter-flange collapsible with pneumatic drive SCBF-D674
Brand: Specialist
SKU: SCBF-D674-10XEC-300-RAT125
Price: 32585.58 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 32 585,58 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-300-RAT125

Disc rotary valve DU 300 stainless inter-flange collapsible with pneumatic drive SCBF-D674

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-300-RAT125

32 585,58 UAH

In Stock

SCBF-D674-10XES-300-RAT125

Disc rotary valve DU 300 stainless inter-flange collapsible with pneumatic drive SCBF-D674

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-300-RAT125

36 465,42 UAH

In Stock

SCBF-D674-10XFS-300-RAT140

Disc rotary valve DU 300 stainless inter-flange collapsible with pneumatic drive SCBF-D674

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-300-RAT140

43 660,14 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

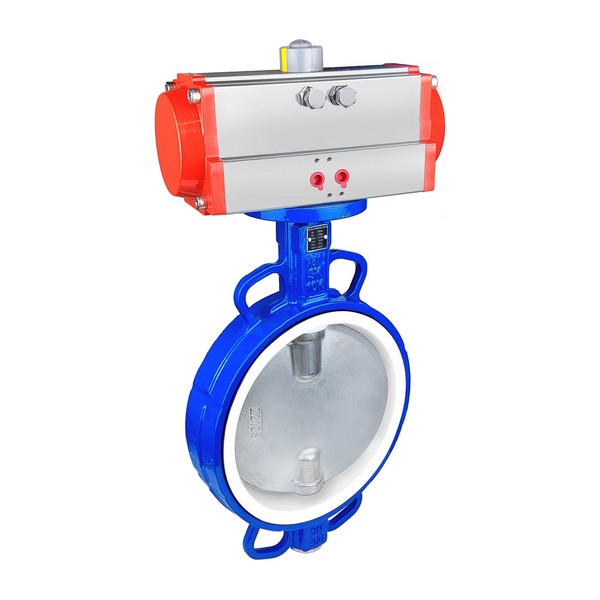

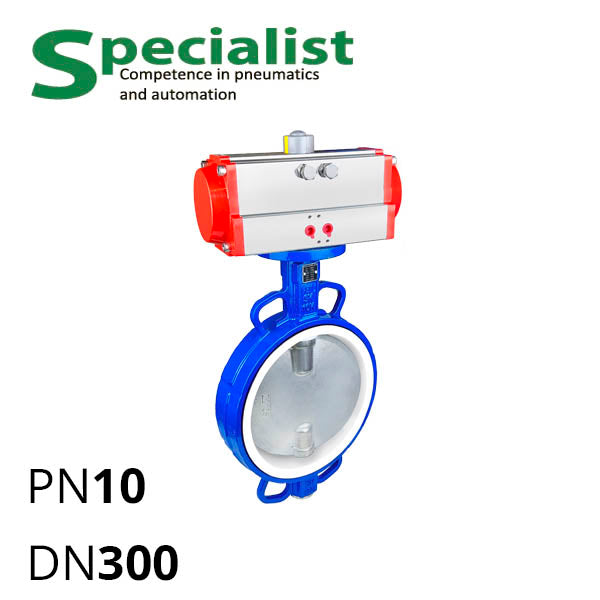

Wafer-type butterfly valve with pneumatic control PN10 DN300 series SCBF-D674-10XEC/10XES/10XFS-300-RAT125/RAT140 is a "butterfly" type valve with cast stainless disc CF8/CF8M (equivalent AISI 304/316) for mounting between pipe flanges d 300mm. The disc valve is equipped with a double-acting pneumatic actuator SC-RAT125 or RAT140.

The pneumatic control butterfly valve SCBF-D674-10XEC/10XES/10XFS-300-RAT125/RAT140 is intended for water, liquid, or gas whose chemical composition, according to the compatibility table, does not react with CF8/CF8M and the selected seat material — EPDM or PTFE.

Table — Main parameters of stainless pneumatic-controlled butterfly valve SCBF-D674-10XEC/10XES/10XFS-300-RAT125/RAT140
Nominal bore diameter	DN300 (300 mm)
Nominal pressure of working medium	PN10 (1 MPa, 10 bar)
Body material	WCB (carbon steel)
Disc material	CF8/CF8M per ASTM A351 (equivalent SS304/SS316)
Seal material	EPDM or PTFE
EPDM temperature range	from −30 to 95°C
PTFE temperature range	from −40 to 160°C
Mounting thickness	78 mm
Control type	With pneumatic control
Pneumatic actuator model	SC-RAT125 or SC-RAT140
Pneumatic actuator action type	Double-acting
Air connection	1/4″
Recommended control air pressure	from 6 to 8 bar
Torque RAT125 at 6 bar	349.8 Nm
Torque RAT140 at 6 bar	526.44 Nm

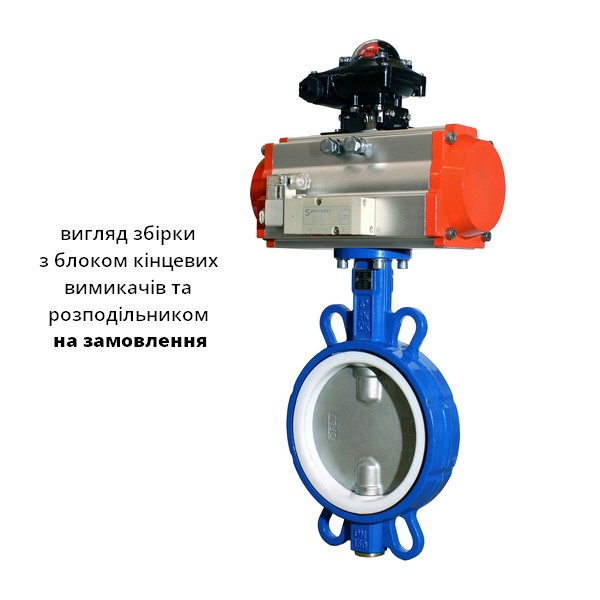

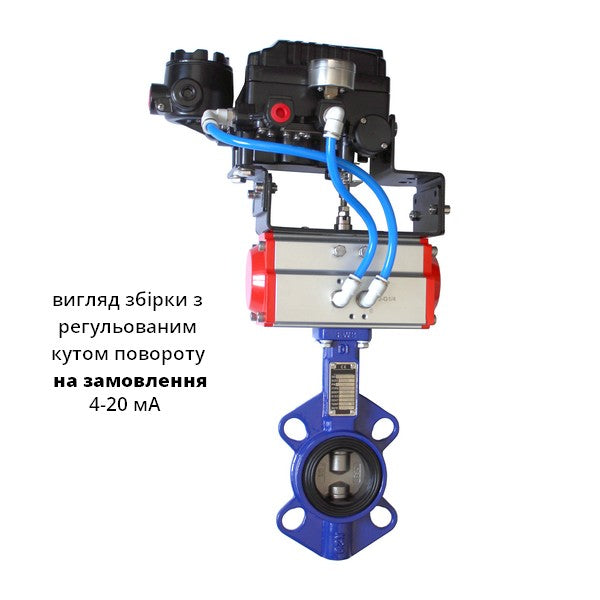

Also in our Specialist company, you can purchase Namur standard distributors 5/2 for pneumatic actuator control, silencers, fittings, limit switch boxes, positioners.

Installation of single-acting actuator SC-RST with springs on request — call us for a commercial offer with price.
