Knife gate valve DU 250 cast iron with pneumatic drive SCBF-PZ673X-10JC-250-P

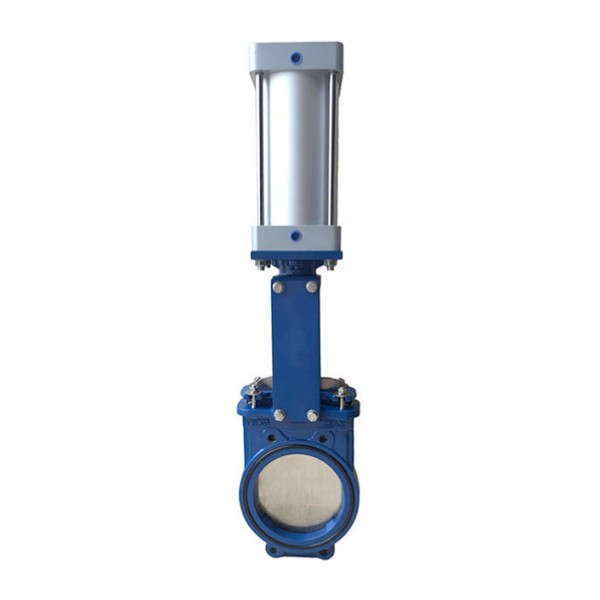

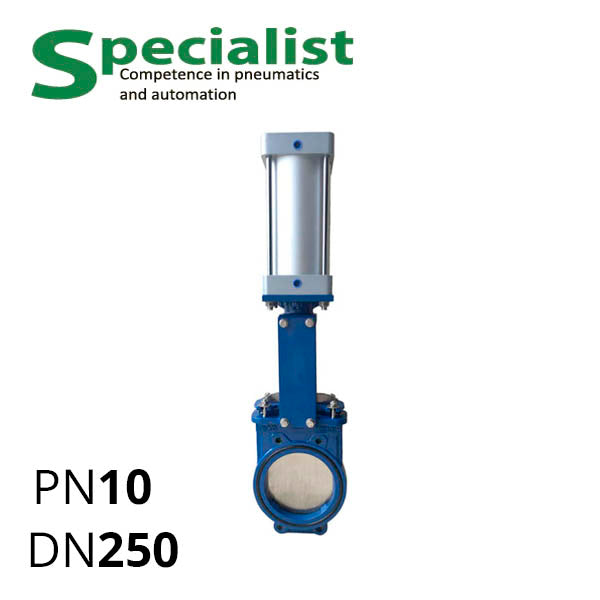

The SCBF-PZ673X-10JC-250-P model is a flange wedge cast iron gate valve DN250 PN10 with a pneumatic actuator for linear two-way operation. This bidirectional knife gate valve DN 250 made of cast iron is designed to block working media without pressure or with pressure 9.8 bar and temperature up to 80° C, including gas, liquids and bulk materials.

Features of the SCBF-PZ673X-10JC-250-P

• It has a high class of tightness and reliability due to the NBR seal around the entire perimeter of the soft seat, which has a steel wire core and better withstands loads.
• WCB is confused with cast iron, but it is cast carbon steel, which is stronger, can operate under pressure and high temperatures — making it more suitable for industrial knife gate valves DN-250.

Custom Design and Material Changes SCBF-PZ673X-10JC-250-P

We are manufacturers of pneumatic actuators and non-standard valves, importing quality serial production shut-off devices directly from the factory, so we can offer the following modifications of the knife gate valve (price provided upon request):

• EPDM, FKM (Viton), NBR rubberised wedge. Coating and vulcanisation make the knife gate valve more wear-resistant and maximally tight.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thicker walls for even higher pressure.
• Pneumatic actuator control kit — non-standard pneumatic cylinder with adjustable stroke, fittings and air tube for connection, pneumatic distributor for control, air preparation and mounting fasteners, available at Specialist online store — or request selection from a sales manager.
