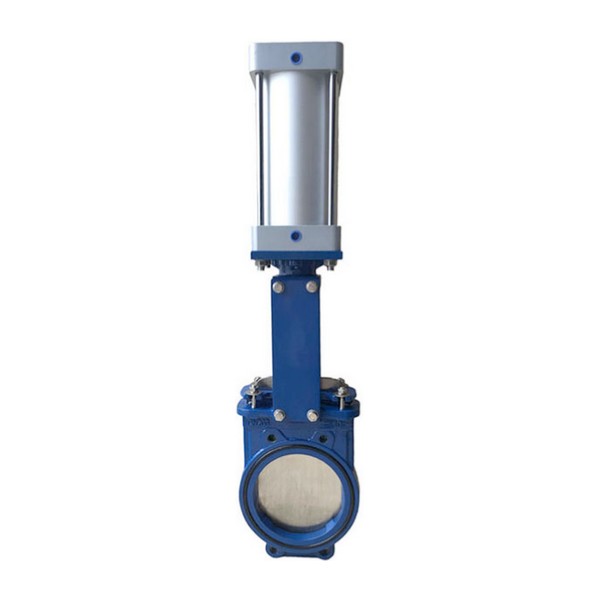

Knife gate valve DU 100 cast iron with pneumatic drive SCBF-PZ673X-10JC-100-P

Model SCBF-PZ673X-10JC-100-P is a cast iron wafer wedge valve DN100 PN10 with a pneumatic actuator of linear double-acting type. This bidirectional knife gate valve DN 100 made from cast iron is intended for blocking working media without pressure or under pressure 9.8 bar and temperatures up to 80° C, including for gases, liquids, and bulk materials.

Features of the construction SCBF-PZ673X-10JC-100-P

• It has a high class of sealing and reliability owing to NBR sealing across the entire perimeter of the soft seat, which has a steel wire core and better withstands loads.
• WCB is often mistaken for cast iron, but it is a cast carbon steel that is stronger, can work under pressure and high temperatures — making it more suitable for industrial knife gate valves DN-100.

Modification of design and materials on request SCBF-PZ673X-10JC-100-P

We are manufacturers of pneumatic actuators and non-standard valves, directly importing quality serial production shut-off equipment from the factory, so we can offer the following modifications of the knife gate valve (price available on request):

• Rubberised wedge with EPDM, FKM (Viton), NBR. Coating and vulcanisation make the knife gate valve more wear-resistant and maximally tight.
• Stainless steel disc for contact with more aggressive media.
• PN16 with thickened walls for even higher pressure.
• Pneumatic actuator control kit — a non-standard pneumatic cylinder with adjustable stroke, fittings, and air hose for connection, pneumatic valve for control, air preparation, and mounting connections found in the Specialist online store — or order them through a sales manager.
