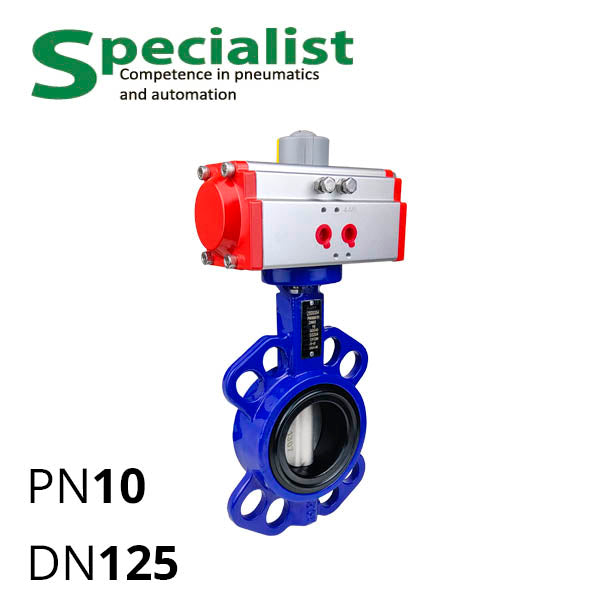

Disc rotary valve DU 125 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 125 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary valve DU 125 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-125-RAT075
Price: 6697.20 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 6 697,20 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-125-RAT075

Disc rotary valve DU 125 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-125-RAT075

6 697,20 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

56 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 125

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

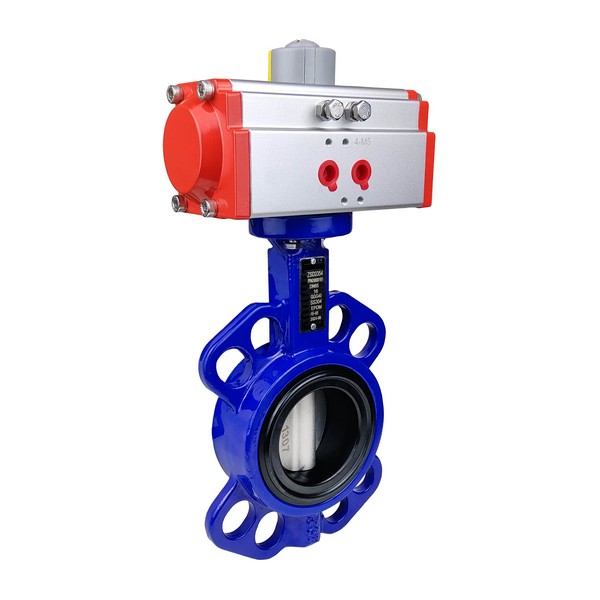

Cast iron butterfly valve SCBF-D673-10XEX-125-RAT075 is an industrial rotary disc valve PN 10 DN 125 with pneumatic actuator for multi-position water regulation, other non-aggressive gaseous and liquid substances under pressure, compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials to ensure compatibility with your working environment; rubber lined disc; PN16 on order.

Table — Specifications of the air-operated cast iron rotary valve SCBF-D673-10XEX-125-RAT075
DN	125 mm
Nominal pressure	PN 10 (PN 16 on order)
Body material	WCB (carbon steel)
Disc material	WCB
Seal material	EPDM
EPDM temperature range	from −30 to 95° C
Installation thickness	56 mm
Pneumatic actuator model	SC-RAT075
Operation method of SC-RAT075	Double acting
Air connection	1/4″
Recommended control air pressure	from 6 to 8 bar
Torque of SC-RAT075 at 6 bar	70.5 Nm

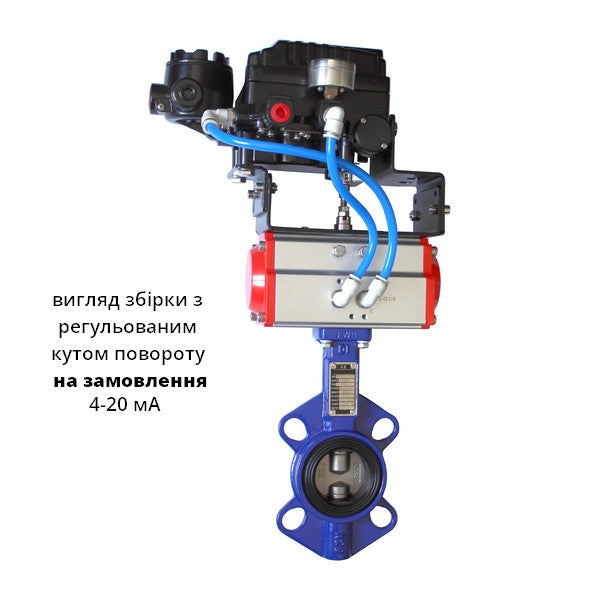

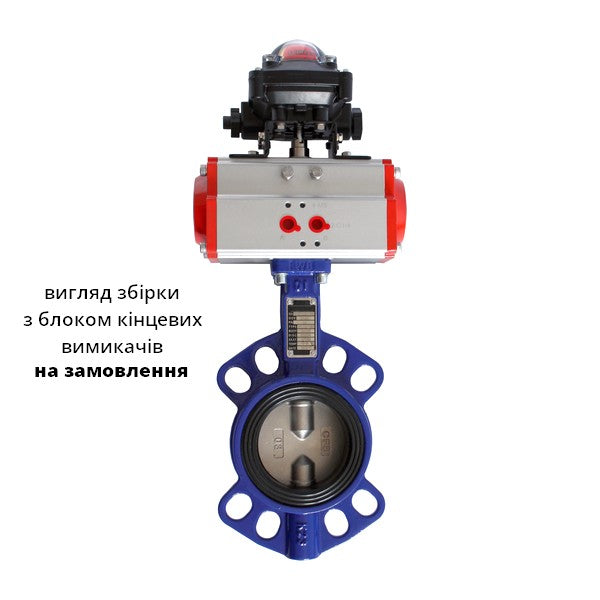

Besides the water/gas rotary valve from Specialist, you can purchase pneumatic distributors of Namur standard 5/2 for pneumatic actuator control, silencers, fittings, limit switch boxes, positioners.
