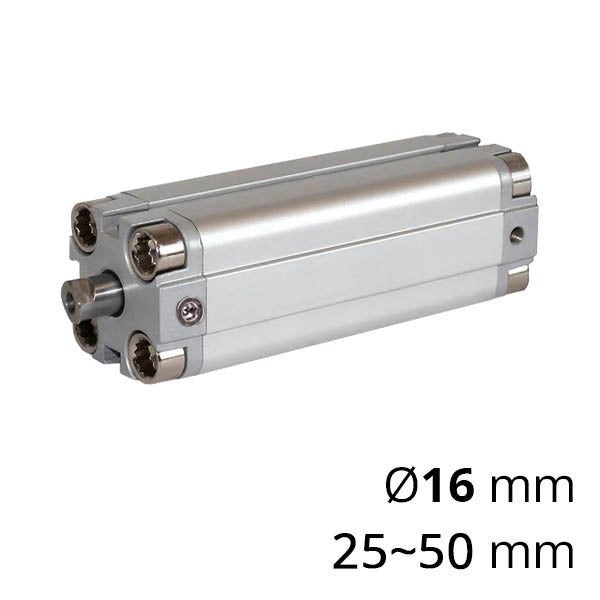

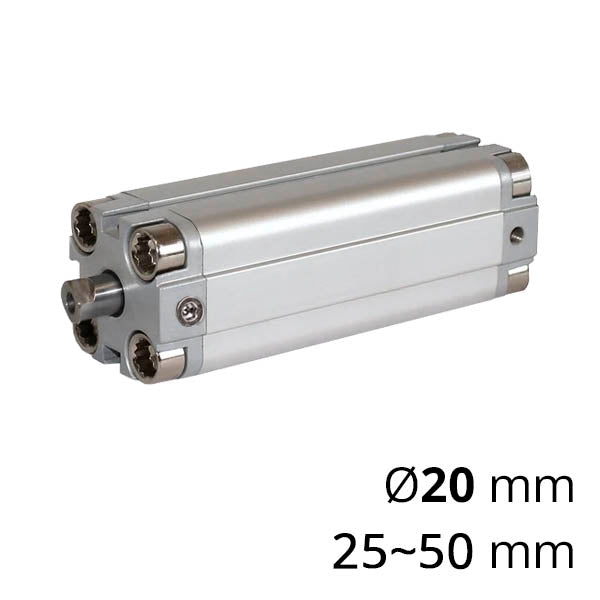

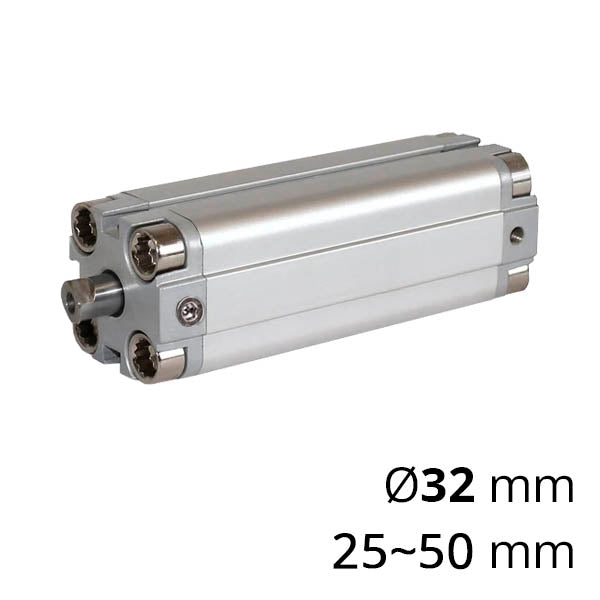

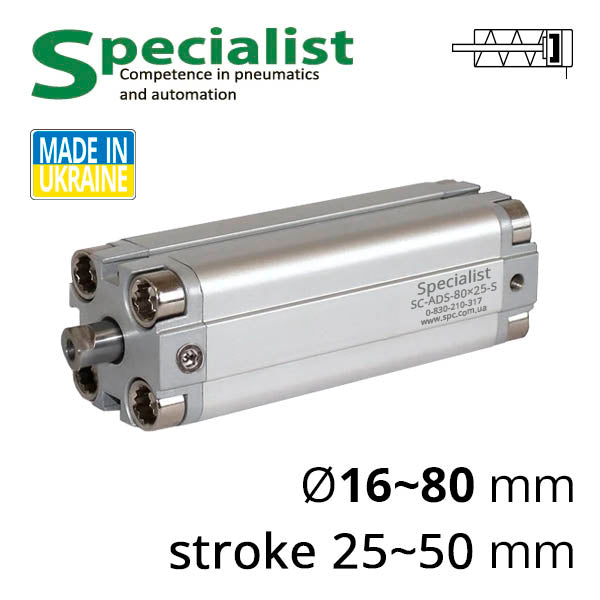

Compact short-stroke linear pneumatic single-acting cylinder with a return spring in the rod cavity and single-sided rod exit of the series SC-ADS is designed to work at low speed and frequency of operation (up to 100 mm/s), can exert a pushing force and momentarily clamp loads with a force up to ~3'000 N (at Ø80 mm and 7 bar). This type of pneumatic cylinder is often used in Chinese-made machines. Stroke length — up to 50 mm.
We, 'Specialist', manufacture single-acting ADS air cylinders in Ukraine, using aluminium body sleeves with T-slots, which can accommodate magnetic sensors. The cylinder rod is made of chromium-plated steel for strength. Seals are made from NBR. At the customer's request, we can make any technically feasible changes in design — use different materials, create non-standard sizes, mounts, etc.
| Piston Diameter, mm | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 |
|---|---|---|---|---|---|---|---|---|---|
| Thread to Pneumatic Line | M5×0.8 | G1/8" | |||||||
| Operating Mode | Single-Acting with return spring in rod cavity | ||||||||
| Magnet on Piston | With magnet on piston (default), without magnet (on request) | ||||||||
| Rod | Rod with single-side exit and internal mounting thread at the rod tip (default) | ||||||||
| Operating Medium | Compressed air (after 40 µm filter) | ||||||||
| Pressure Range | 0.1...10 bar | ||||||||
| Maximum Input Pressure | 12 bar | ||||||||
| Temperature Range | from −10 to 60°C | ||||||||
| End Stroke Damping | Rubber Washer | ||||||||
| Sensor Type (for SC-ADV cylinder with piston magnet) | SC-CMS-E/SC-DMS-E | ||||||||
