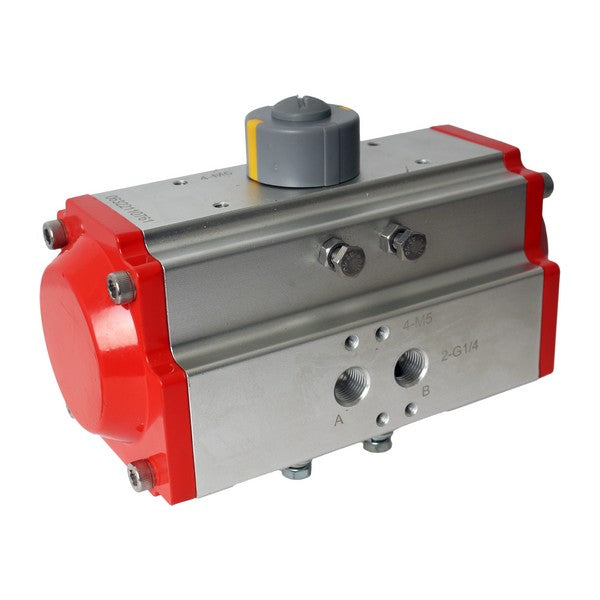

Rotary pneumatic actuator for shut-off fittings SC-RAT/RST63-DA

Do you have any questions about the product?
We will be happy to answer them in messengers

Rotary pneumatic actuator for shut-off fittings SC-RAT/RST63-DA

Name: Rotary pneumatic actuator for shut-off fittings SC-RAT/RST63-DA
Brand: Specialist
SKU: SC-RAT063-DA
Price: 3743.22 UAH
Availability: InStock

In Stock

Спосіб дії

Двосторонній З пружинним поверненням

Size

Model

Manufacturer

Specialist

from 3 743,22 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SC-RAT063-DA

Rotary pneumatic actuator for shut-off fittings SC-RAT/RST63-DA

Спосіб дії=Двосторонній Size=63

SC-RAT063-DA

3 743,22 UAH

In Stock

SC-RST063-DA

Rotary pneumatic actuator for shut-off fittings SC-RAT/RST63-DA

Спосіб дії=З пружинним поверненням Size=63

SC-RST063-DA

4 214,52 UAH

In Stock

Technical specifications

Розмір

Спосіб дії

Двосторонній, З пружинним поверненням

Description

Pneumatic rotary actuator for shut-off valves SC-RAT/RST63-DA of 63rd size has a rotation of 90 or 180° and a torque of up to 58.56 Nm (at a pressure of 8 bar). This is a reliable pneumatic actuator designed for installation on small ball valves ¾~2½″ and butterfly valves DN 30~80, featuring a standard actuator mounting plate F05/F07 according to ISO 5211/DIN3337. When ordering, you should consider the Nm value and choose the method of operation:

SC-RAT63-DA — double-acting pneumatic actuator. It should be equipped with a Namur standard distributor 5/2 with a thread size of 1/4″ at the pneumatic distributor outlet, force up to 58.56 Nm;
SC-RST63-DA — single-acting pneumatic actuator with forced spring return to closed/open position in case of air pressure drop. The rotational force depends on the number of springs (from 5 to 12). The force is halved — up to 25 Nm. For control, distributors 3/2 or 5/2 can be used. We recommend supplying air to both outlets using a 5/2 construction.

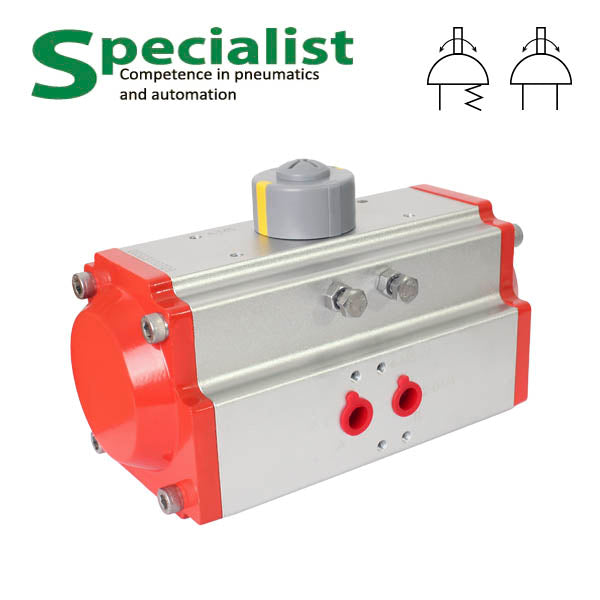

Horizontal pneumatic actuator 63 SC-RAT/RST63-DA

The Specialist pneumatic actuator housings are made from extruded aluminium with deep anodization of the internal and external surfaces.

Structurally, it is a rack and pinion rotary pneumatic cylinder for a quarter turn 90±4° for ball valve or 180±4°. It can be equipped with NAMUR standard pneumatic distributors, positioners, and limit switch boxes.

Torque of Double-Acting Actuator 63 SC-RAT63-DA

Torque of Double-Acting Actuator SC-RAT63-DA depending on input pressure
Pressure, bar
2	3	4	5	6	7	8
14.64	21.96	29.28	36.6	43.92	51.24	58.56

Torque of Single-Acting Actuator 63 SC-RST63-DA

Graph of pneumatic actuators Specialist force dependence

Return Spring Torque of SC-RST63-DA Actuator
Pressure, bar	3		4		5		6		7		Spring Torque
Number of Springs	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°
5	15	11.2	22.3	18.5	29.6	25.8	-	-	-	-	7	10.8
6	13.5	9	20.8	16.3	28.1	23.7	-	-	-	-	8.5	12.95
7	12	6.9	19.4	14.2	26.7	21.5	-	-	-	-	9.9	15.1
8	-	-	18	12	25.3	19.3	32.6	26.6	-	-	11.3	17.3
9	-	-	16.5	9.9	23.9	17.2	31.2	24.52	-	-	12.7	19.4
10	-	-	15.3	7.7	22.6	15	29.9	22.3	37.2	29.6	14	21.6
11	-	-	13.8	5.6	21.1	12.9	28.4	20.2	35.7	27.5	15.5	23.7
12	-	-	-	-	19.7	10.7	27	18	34.3	25.3	16.9	25.9
