Disc rotary valve DU 300 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 300 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary valve DU 300 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-300-RAT125
Price: 25310.70 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 25 310,70 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-300-RAT125

Disc rotary valve DU 300 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-300-RAT125

25 310,70 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

78 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 300

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

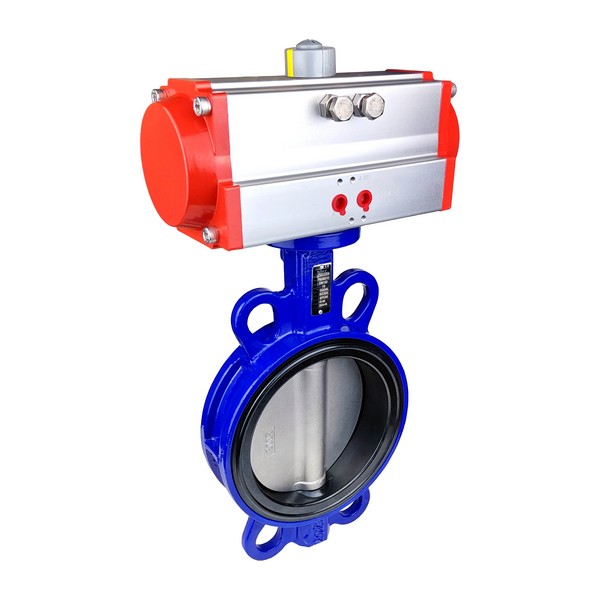

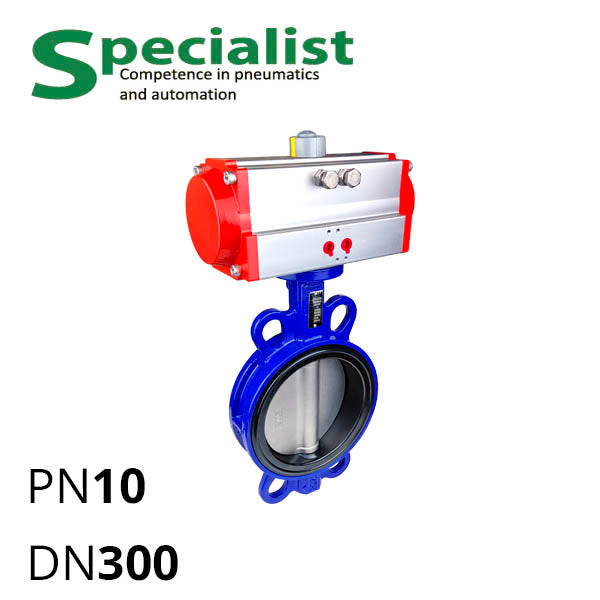

Cast iron valve butterfly SCBF-D673-10XEX-300-RAT125 this is an industrial wafer butterfly valve PN 10 DN 300 with pneumatic actuator for multi-position regulation of water, other non-aggressive gases and liquids under pressure that are compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials to ensure the butterfly valve is compatible with your working environment; rubberized disc; PN16 on request.

Table — Specifications of the pneumatic operated cast iron butterfly valve SCBF-D673-10XEX-300-RAT125
DN	300 mm
Nominal Pressure	PN 10 (PN 16 on request)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Range	from −30 to 95° C
Installation Thickness	78 mm
Actuator Model actuator	SC-RAT125
Operation Mode SC-RAT125	Double acting pneumatic actuator
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
Torque SC-RAT125 at 6 bar	349.8 N⋅m

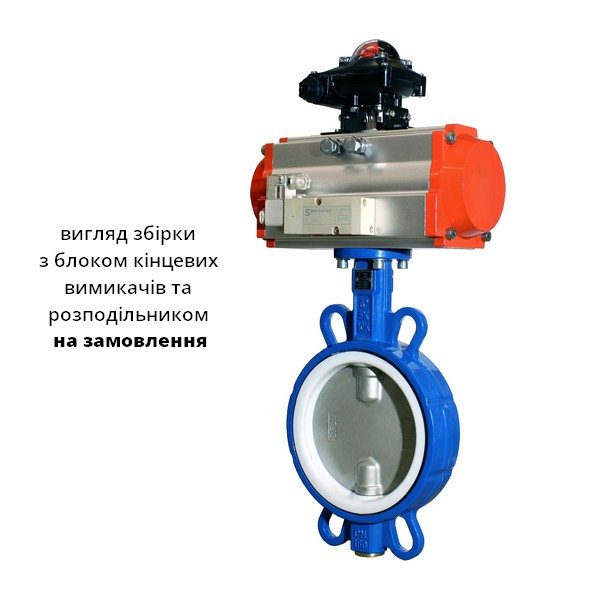

In addition to the company's Specialist water/gas butterfly valve, you can purchase pneumatic distributors standard Namur 5/2 for pneumatic actuator control, silencers, fittings, limit switch blocks, positioners.
