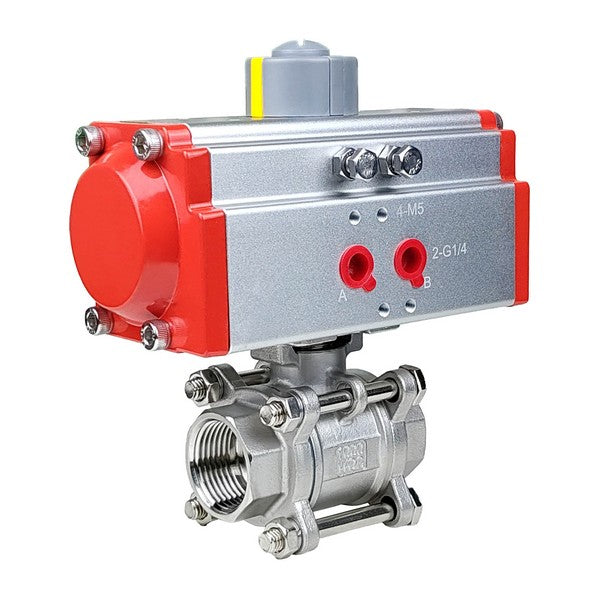

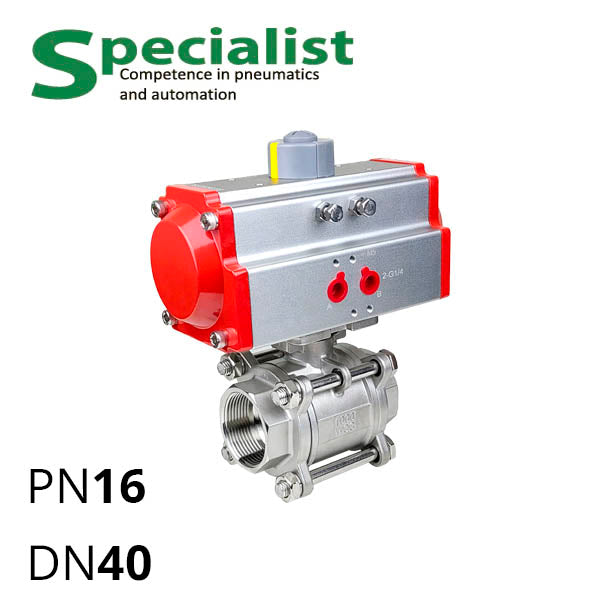

Ball valve 1 ½″ stainless PN16 DN40 with pneumatic drive SCBV-Q611

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Ball valve 1 ½″ stainless PN16 DN40 with pneumatic drive SCBV-Q611

Name: Ball valve 1 ½″ stainless PN16 DN40 with pneumatic drive SCBV-Q611
Brand: Specialist
SKU: SCBV-Q611F-16FC-40-RAT075
Price: 7310.28 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1½

Model

Manufacturer

Specialist

from 7 310,28 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q611F-16FC-40-RAT075

Ball valve 1 ½″ stainless PN16 DN40 with pneumatic drive SCBV-Q611

Diameter of conditional passage=40 Thread size=G 1½

SCBV-Q611F-16FC-40-RAT075

7 310,28 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1½"

Матеріал диску

SS304 stainless steel

Матеріал ущільнення

PTFE

Body material

SS304 stainless steel

Nominal diameter

TWO 40

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

With pneumatic drive

Description

Featuring a pneumatic actuator, the three-piece ball valve DN 40 with thread 1½″SCBV-Q611F-16FC-40-RAT075 provides perfect sealing under high pressure compared to butterfly valves, and the pneumatic actuator is more durable than an electric drive and safer, with faster speed.

Stainless steel ball valves operated by pneumatics are well-suited for dosing and dispensing lines of beverages and viscous food mixtures, oils, certain technical oils, petroleum products, and chemicals. Check the compatibility of the fluid or gas composition with the valve materials: PTFE and AISI 304. If necessary, call and order a valve from Specialist made from materials resistant to your environment.

Ball Valve with Pneumatic Actuator DN40
Valve Model	SCBV-Q611F-16FC-40
Type	Two-way ball valve, three-way available upon request
Connection	Thread G 1½″, flanged ball valve available upon request, for welding, clamp
Nominal Diameter	DN 40
Bore Diameter	Full bore
Leakage Class	A
Nominal Pressure	PN16 (16 bar, 1.6 MPa); PN40, PN64 available upon request
Working Temperature	-40 to 180°C (without fluid freezing)
Pneumatic Actuator Model	SC-RAT075
Actuator Type	Double-acting (single-acting upon request)
Body and Ball Material	Stainless steel grade 304 (cast iron, steel 316 available upon request)
Seat Seal Material	PTFE (EPDM available upon request)
Working Media	Water, oil, gas

Base Assembly of Valves with Pneumatic Actuators DN40 and Additional Components

The base assembly of the ball valve with pneumatic actuator for DN40 achieves open-close operation, and with an additional pneumatic positioner allows flow regulation.
Spring return can be added to the pneumatic actuator for automatic opening or closing of the valve in case of power failure and pressure drop.
To control the pneumatic actuator via electrical signals from a controller, a solenoid valve with silencers can be mounted on the actuator body.

You can call and order a ball valve with a pneumatic actuator with additional actuator accessories from Specialist.
