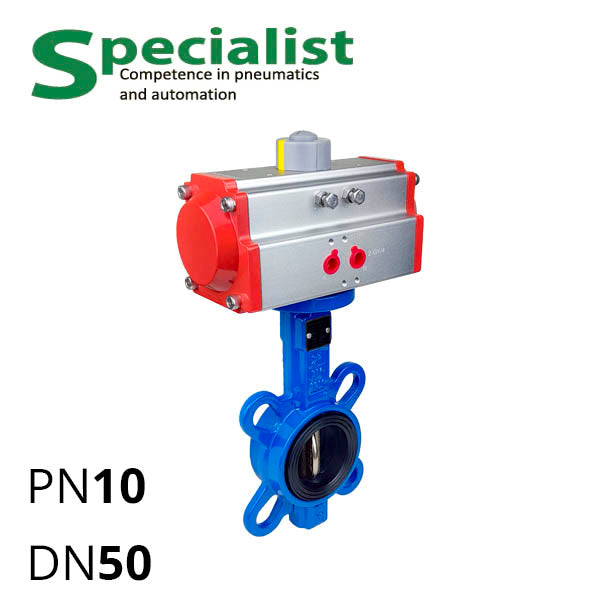

Disc rotary valve DU 50 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 50 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary valve DU 50 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-50-RAT052
Price: 3889.92 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 3 889,92 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-50-RAT052

Disc rotary valve DU 50 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-50-RAT052

3 889,92 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

41 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 50

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

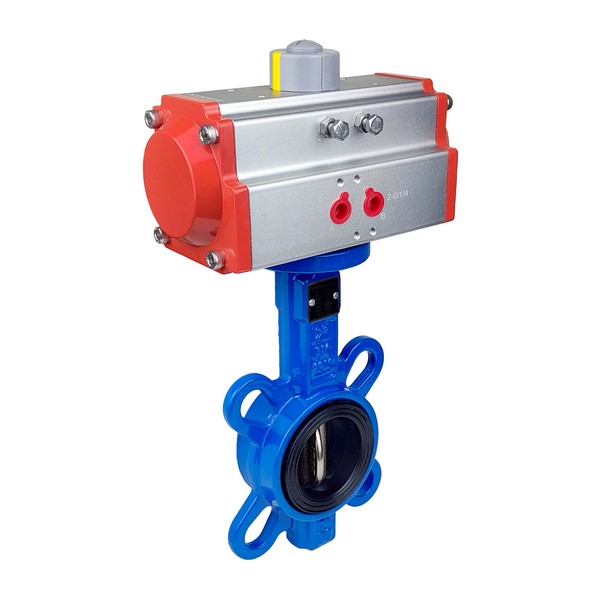

The SCBF-D673-10XEX-50-RAT052 cast iron butterfly valve is an industrial wafer butterfly valve PN10 DN50 with pneumatic actuator for multi-position regulation of water, and other non-aggressive gases and liquids under pressure, compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials to ensure the butterfly valve is compatible with your working environment; PN16 on request.

Table — Specifications of Pneumatically Operated Cast Iron Butterfly Valve SCBF-D673-10XEX-50-RAT052
DN	50 mm
Nominal Pressure	PN10 (PN16 on request)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Range	from -30 to 95°C
Installation Thickness	41 mm
Pneumatic Actuator Model	SC-RAT052
SC-RAT052 Type	Double Acting
Air Connection	1/4″
Recommended Control Air Pressure	6 to 8 bar
SC-RAT052 Torque at 6 bar	24.96 Nm

In addition to the Specialist’s water/gas butterfly valve, you can purchase Namur Standard distributors 5/2 for actuator control, silencers, fittings, limit switch boxes, positioners.
