Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Name: Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series
Brand: Specialist
SKU: SCBF-D674-10XEC-250-RAT105
Price: 21887.10 UAH
Availability: InStock

In Stock

Диск

SS304 SS316

Ущільнення

EPDM PTFE

Model

Manufacturer

Specialist

from 21 887,10 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 3 variants


Name

Model Price Availability Qty

Action

SCBF-D674-10XEC-250-RAT105

Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS304 Ущільнення=EPDM

SCBF-D674-10XEC-250-RAT105

21 887,10 UAH

In Stock

SCBF-D674-10XES-250-RAT105

Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=EPDM

SCBF-D674-10XES-250-RAT105

24 059,76 UAH

In Stock

SCBF-D674-10XFS-250-RAT125

Disc rotary valve DU 250 stainless inter-flange collapsible with a pneumatic drive of the SCBF-D674 series

Диск=SS316 Ущільнення=PTFE

SCBF-D674-10XFS-250-RAT125

29 729,82 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

67 mm

Диск

SS304, SS316

Матеріал диску

Stainless steel AISI 304 SS, Stainless steel AISI 316 SS

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM, PTFE

Body material

Cast iron WCB

Nominal diameter

TWO 250

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

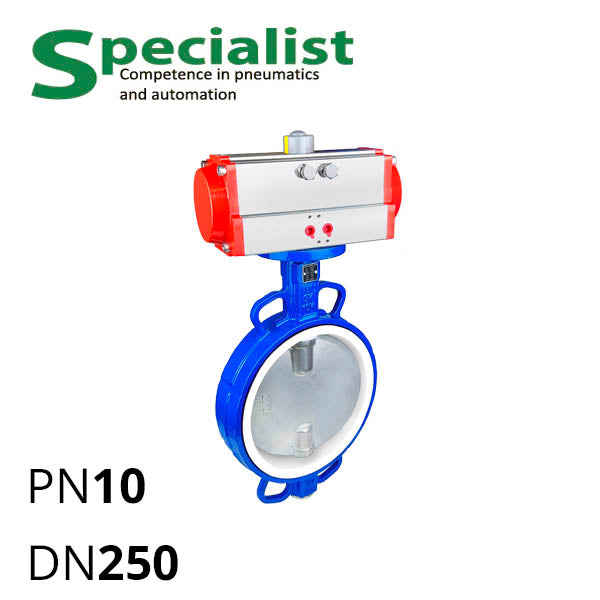

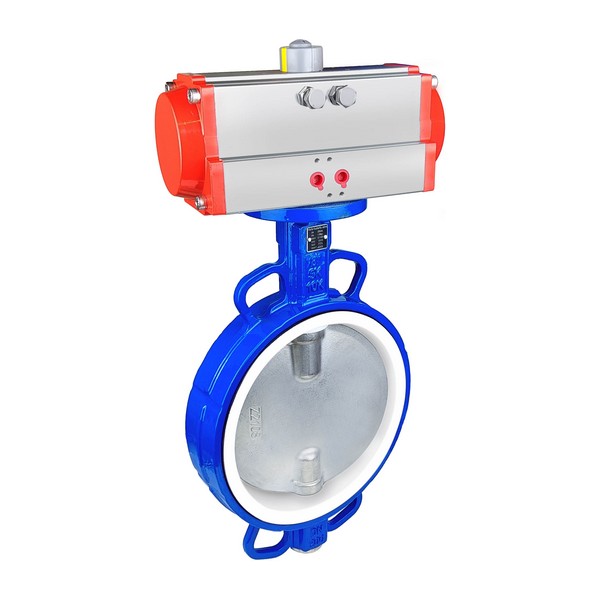

Wafer Type Rotary Disc Valve with Pneumatic Control Ru 10 DU 250 series SCBF-D674 is a type "butterfly" valve with cast stainless disc CF8/CF8M (equivalent to AISI 304/316) for mounting between flanges on a pipe d 250mm. The disc valve is equipped with a double-acting pneumatic actuator SC-RAT105 or RAT125.

The rotary valve with pneumatic control SCBF-D674 is intended for water, liquid, or gas whose chemical composition according to the compatibility table does not react with CF8/CF8M and the selected seat material — EPDM or PTFE.

Table — Main Parameters of Pneumatically Controlled Stainless Rotary Valve SCBF-D674-10XEC/10XES/10XFS-250-RAT105/125
Nominal Diameter	DN250 (250 mm)
Nominal Working Pressure	PN10 (1 MPa, 10 bar)
Body Material	WCB (Carbon Steel)
Disc Material	CF8/CF8M to ASTM A351 (equivalent to SS304/SS316)
Sealing Material	EPDM or PTFE
EPDM Temperature Resilience	from −30 to 95°C
PTFE Temperature Resilience	from −40 to 160°C
Installation Thickness	67 mm
Control Type	With Pneumatic Control
Actuator Model	SC-RAT105/125
Actuator Action	Double-acting
Air Connection	1/4″
Recommended Air Control Pressure	from 6 to 8 bar
RAT105 Force at 6 bar	203.64 N⋅m
RAT125 Force at 6 bar	349.8 N⋅m

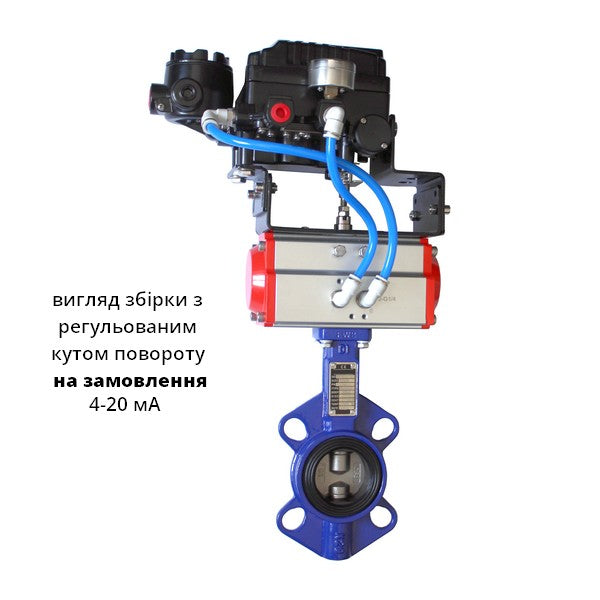

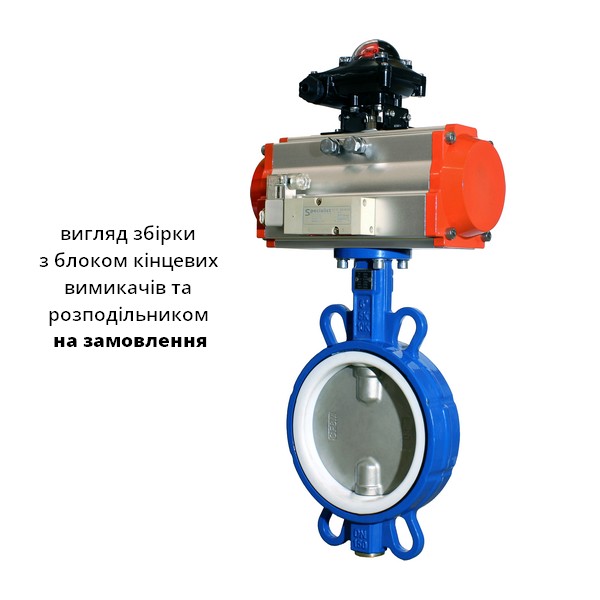

Also at our company Specialist, you can purchase Namur standard 5/2 distributors for controlling the pneumatic actuator, silencers, fittings, limit switch blocks, and positioners.

The installation of a single-acting drive SC-RST with springs is available to order — call us for a commercial offer with a price.
