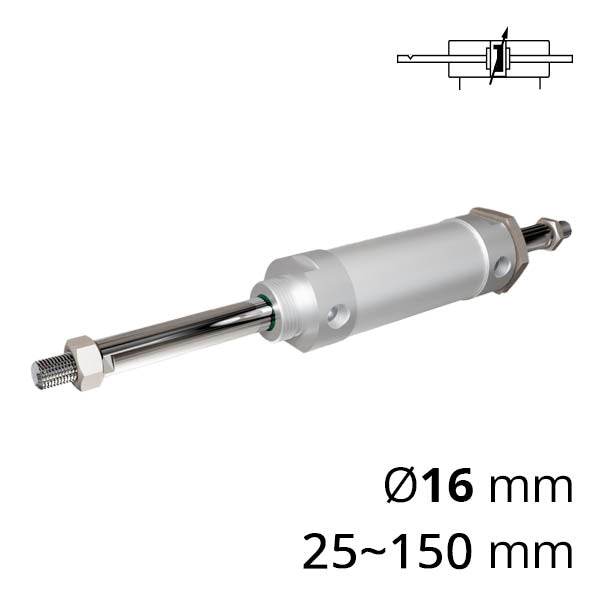

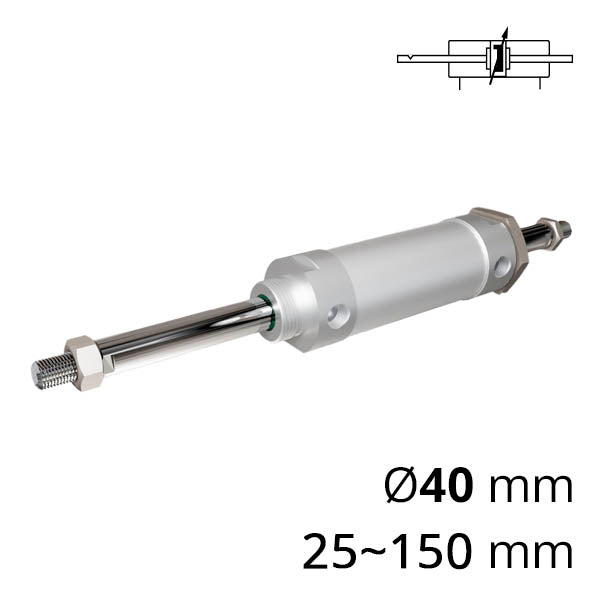

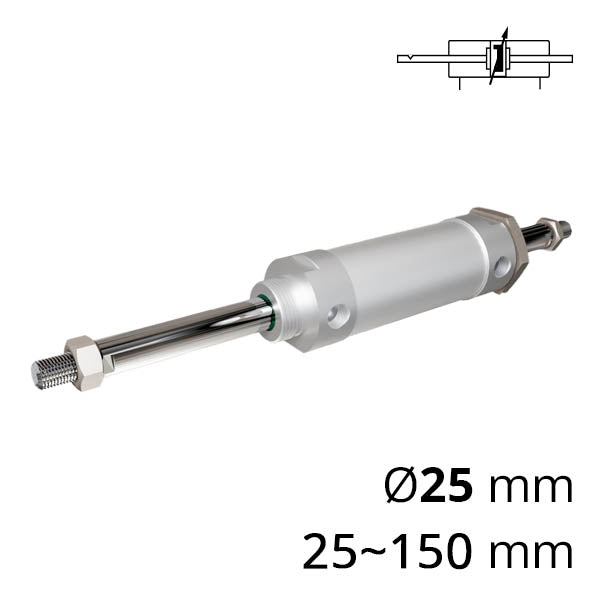

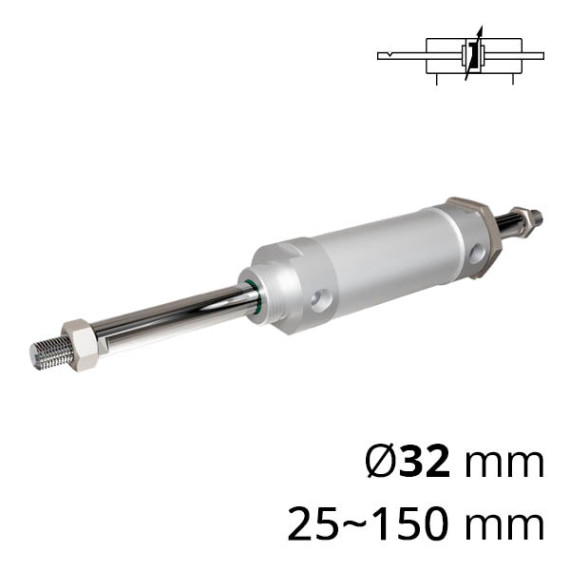

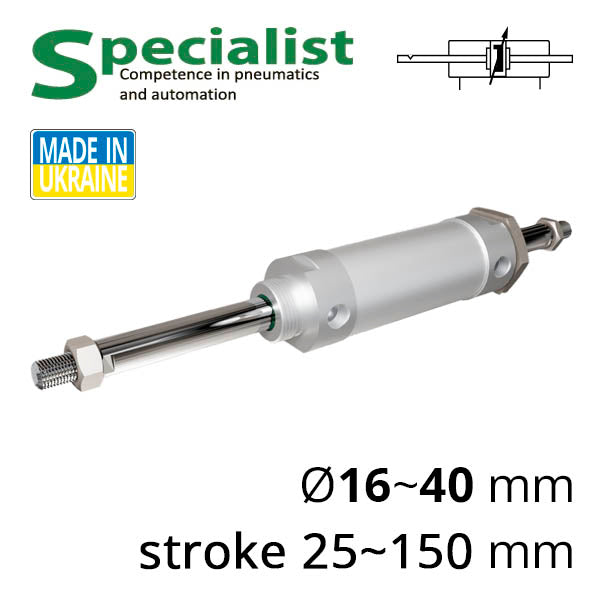

The SC-MALD series pneumatic cylinder is a dismantlable double-acting pneumatic cylinder with a piston diameter from 16 to 40 mm without damping, with a double through rod. Such cylinders are often found on machines of Chinese production.
By default, we manufacture SC-MALD cylinders with a magnet on the piston, on request — without.
| Diameter, mm | 16 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| Connecting Thread | M5 | G1/8″ | G1/8″ | G1/8″ | G1/4″ |
| Maximum Stroke Length | 500 mm | 800 mm | 1200 mm | ||
| Action | Double-acting with through hollow rod | ||||
| Operating Medium | Air after 40 µm filter | ||||
| Operating Pressure Range | 1~9 bar | ||||
| Max. Input Pressure | 12 bar | ||||
| Operating Temperature Range | -10 ~ 70 °C (dry air without moisture) | ||||
| Damping | Damping washer | ||||
| Type of Magnetic Sensor | SC-CMS-G or SC-DMS-G | ||||
| Type of Sensor Mount | SC-MAL-B-S | ||||
The "Specialist" company is a manufacturer of pneumatic cylinders — SC-MALD are manufactured within 1-3 working days. It is possible to design other non-standard products based on the series — with specific fittings, sizes, and materials at the buyer's request.
Please note that pneumatic cylinders are returnable only in the case of defects.
