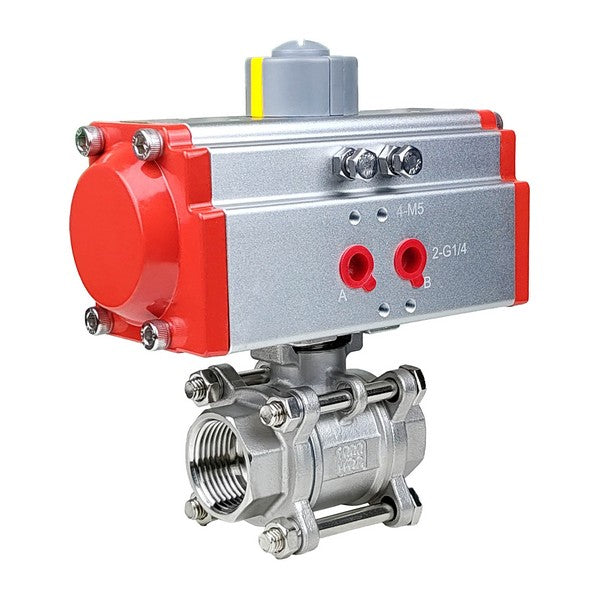

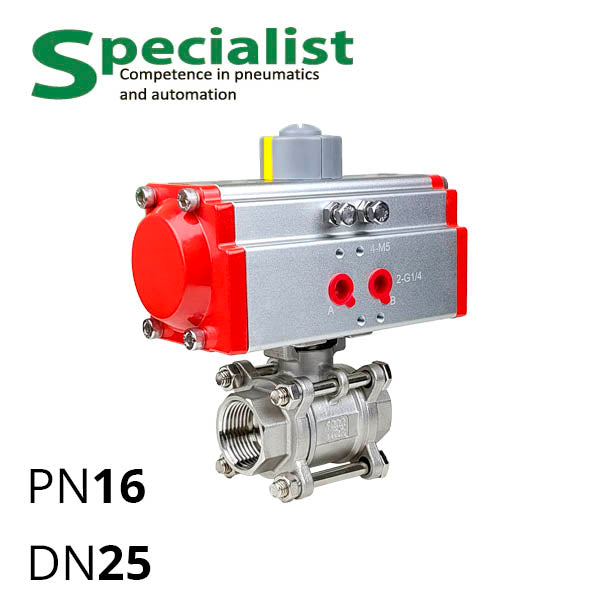

Ball valve 1″ stainless PN16 DN25 with pneumatic drive SCBV-Q611

Equipped with a pneumatic actuator, the three-piece ball valve DN 25 with threaded connection 1″ NPTSCBV-Q611F-16FC-25-RAT052 provides perfect sealing under high pressure compared to butterfly valves, with the pneumatic actuator being more stable and safer, with higher speed than an electric drive.

Pneumatically actuated stainless steel ball valves are suitable for dosing lines and dispensing of beverages and viscous food mixtures, oils, a range of technical lubricants, petrochemical products, and chemicals. Check the compatibility of the fluid or gas composition with valve materials: PTFE and AISI 304. If necessary, call and order from Specialist a valve made of materials resistant to your environment.

Basic Assembly of Pneumatic Actuated Valves DN25 and Additional Options

• The basic assembly of the DN25 pneumatic actuated ball valve operates in open-close mode, and with an additional pneumatic positioner, it allows flow regulation.
• The pneumatic actuator can be equipped with a spring return for automatic opening or closing of the valve in the event of a power failure and pressure drop.
• For controlling the pneumatic actuator via electric signals from a controller, a pneumatic distributor with installed mufflers can be mounted on the body.

You can call and order a ball valve with a pneumatic actuator with additional accessories from Specialist.
