Rotary pneumatic actuator for shut-off valves SC-RAT/RST105-DA

Do you have any questions about the product?
We will be happy to answer them in messengers

Rotary pneumatic actuator for shut-off valves SC-RAT/RST105-DA

Name: Rotary pneumatic actuator for shut-off valves SC-RAT/RST105-DA
Brand: Specialist
SKU: SC-RAT105-DA
Price: 8175.66 UAH
Availability: InStock

In Stock

Спосіб дії

Двосторонній З пружинним поверненням

Size

105

Model

Manufacturer

Specialist

from 8 175,66 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 2 variants


Name

Model Price Availability Qty

Action

SC-RAT105-DA

Rotary pneumatic actuator for shut-off valves SC-RAT/RST105-DA

Спосіб дії=Двосторонній Size=105

SC-RAT105-DA

8 175,66 UAH

In Stock

SC-RST105-DA

Rotary pneumatic actuator for shut-off valves SC-RAT/RST105-DA

Спосіб дії=З пружинним поверненням Size=105

SC-RST105-DA

8 942,58 UAH

In Stock

Technical specifications

Розмір

105

Спосіб дії

Двосторонній, З пружинним поверненням

Description

Pneumatic rotary actuator for shut-off valves SC-RAT/RST105-DA type 105 has a rotation 90 or 180° and torque up to 271.52 Nm (at pressure 8 bar). This is a reliable pneumatic actuator designed for installation on large ball valves and butterfly valves, with a standard mounting platform F07/F10 according to standard ISO 5211/DIN3337. When ordering, you must choose the mode of action:

SC-RAT105-DA — double-acting pneumatic actuator. It should be equipped with a Namur standard distributor 5/2 with a thread size of 1/4″ at the pneumo distributor output;
SC-RST105-DA — single-acting pneumatic actuator with forced spring return to the closed/open position in case of air pressure drop. The turning force depends on the number of springs (from 5 to 12). Both 3/2 and 5/2 distributors can be used for control. We recommend supplying air to both outputs using the 5/2 design.

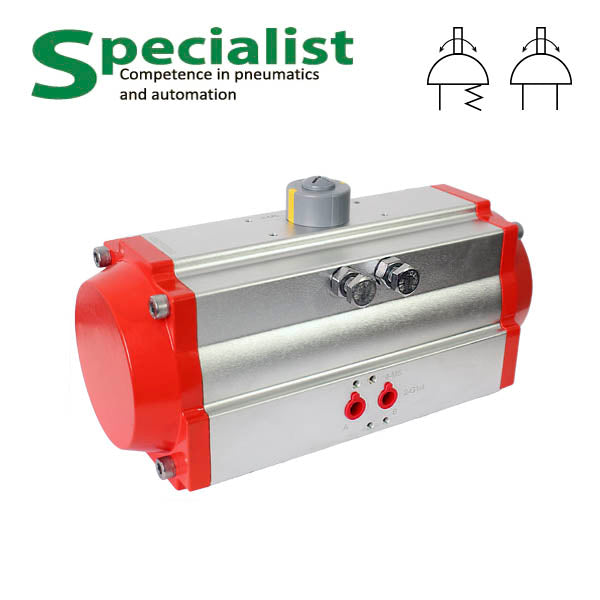

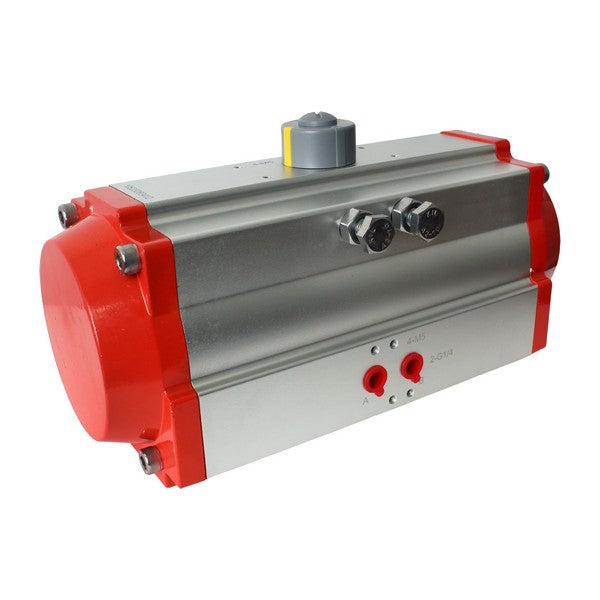

Horizontal pneumatic actuator 105 SC-RAT/RST105-DA

The body of air actuators Specialist is made of extruded aluminium with deep anodising of the inner and outer surface.

Structurally, it is a rack and pinion pneumatic cylinder with a quarter turn 90±4° for ball valves or 180±4°. It can be equipped with NAMUR standard pneumatic distributors, positioners, limit switch blocks.

Torque of double-acting pneumatic actuator 105 SC-RAT105-DA

Torque of double-acting pneumatic actuator SC-RAT105-DA depending on inlet pressure
Pressure, Bar
2	3	4	5	6	7	8
67.88	101.82	136.76	169.7	203.64	237.58	271.52

Torque of single-acting pneumatic actuator 105 SC-RST105-DA

Graph of force dependence of Specialist pneumatic actuators

Spring return torque of pneumatic actuator SC-RST105-DA
Pressure, Bar	3		4		5		6		7		Spring torque
Number of springs	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°
5	68.6	52	103.6	87	-	-	-	-	-	-	33.2	49.8
6	61.9	42	96.9	77	-	-	-	-	-	-	39.9	59.8
7	55.3	32.1	90.3	67.1	-	-	-	-	-	-	46.5	69.7
8	-	-	83.7	57.1	116.6	90	-	-	-	-	53.1	79.7
9	-	-	77	47.4	109.9	80.3	-	-	-	-	59.8	89.4
10	-	-	70.4	37.2	103.3	70.1	137.3	104	171.2	136	66.4	99.6
11	-	-	-	-	96.7	60.1	130.6	94	164.6	128	73	109.6
12	-	-	-	-	90	50.2	123.9	64.1	157.9	118.1	79.7	119.5
