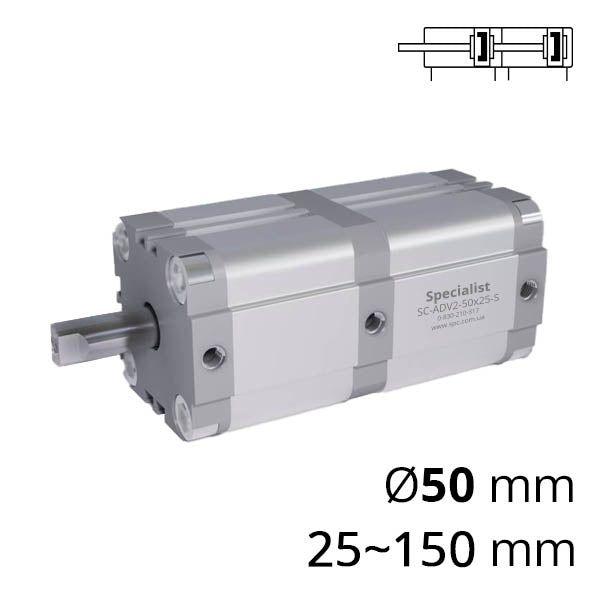

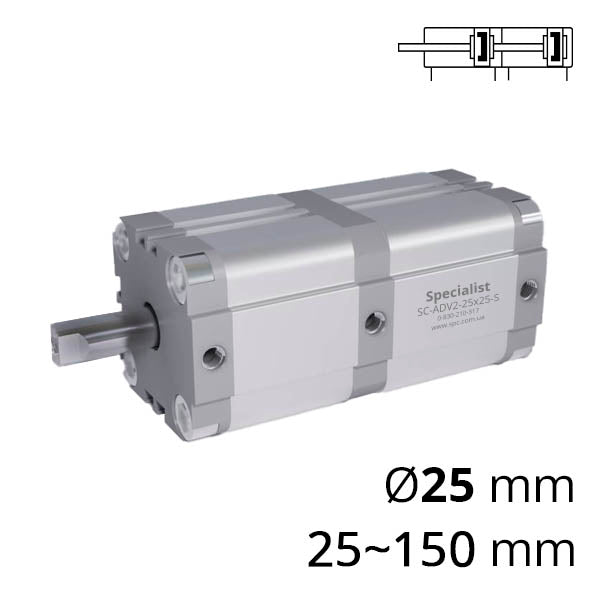

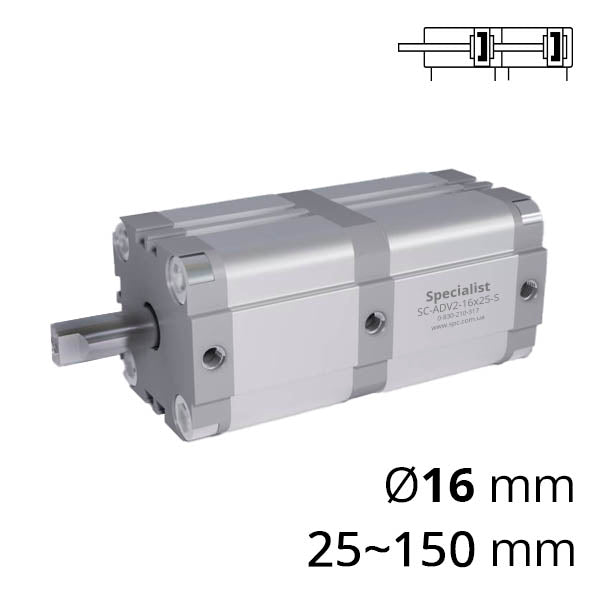

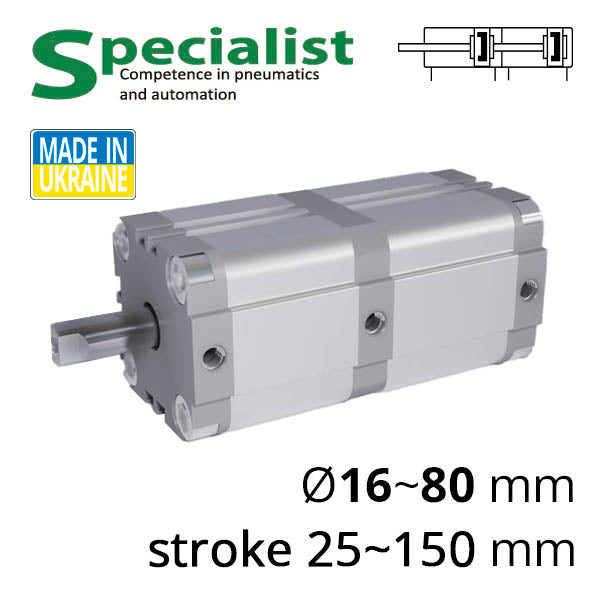

Compact double pneumatic cylinders (tandems) of the SC-ADVT series feature two pistons of the same diameter combined in one housing to double the force of the pneumatic cylinder — rod extension force up to 6300 Newtons (for Ø80 mm, 7 bar) with relatively small actuator dimensions. The compact tandem SC-ADVT is also due to the use of rubber pads for cushioning at the end of the stroke (without pneumatic damper). Thus, this double pneumatic cylinder can be used at a low frequency and rod extension/retraction speed up to 50 mm/s.
| Piston Diameter, mm | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 |
|---|---|---|---|---|---|---|---|---|---|
| Connection Thread for Pneumatic Line | M5×0.8 | G1/8" | |||||||
| Type of Pneumatic Cylinder | Tandem of Two Double-Acting Pneumatic Cylinders | ||||||||
| Magnet on Piston | With Magnet on Piston (default), without Magnet (on request) | ||||||||
| Rod | Single-Sided Rod Output | ||||||||
| Operating Medium | Compressed Air (after 40 μm filter) | ||||||||
| Operating Pressure Range | 0.1...10 bar | ||||||||
| Maximum Input Pressure | 12 bar | ||||||||
| Operating Temperature Range | from −10 to 60° C | ||||||||
| Damping | Rubber Pad | ||||||||
| Sensor Type (for SC-ADV2 Cylinder with Magnet on Piston) | SC-CMS-E/SC-DMS-E | ||||||||
ADVT piston tandems have an aluminium sleeve with T-shaped grooves on the body, allowing for convenient installation of position sensors (each piston has a magnet). Structurally, SC-ADVT can be seen as 2 serially installed double-acting linear pneumatic cylinders in one housing with a combined rod extending from one side (the opposite side — blind cover). On the covers, there are four holes for air supply: Two of them are needed for applying pressure to extend the rod, and two more — for retraction. The rod is usually threaded:
