Valves for Semi-Automatic Welding

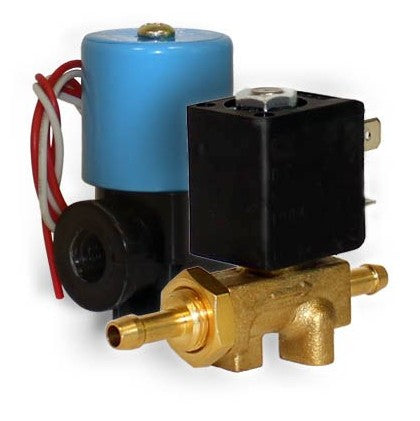

Carbon Dioxide Valves for Semi-Automatic Welders

The electromagnetic cut-off valve for carbon dioxide CO₂ for Specialist semi-automatic welders in serial production is specialised — the WZ series consists of bronze electrovalves with DN from 1.5 to 2.2 mm, ensuring optimal carbon dioxide delivery to the seam during MIG/MAG welding in an active gas environment. This cut-off CO₂ valve for semi-automatic machines is supplied with electrical coils in both DC 12V or 24V and AC — 220V. It connects to the welding hose using couplings for 6-8 mm tubing. They are often ordered for use with Energy, Edon, and Iskra gas welding equipment.

Gas Supply Valve for Semi-Automatic Welding (Argon and Blends)

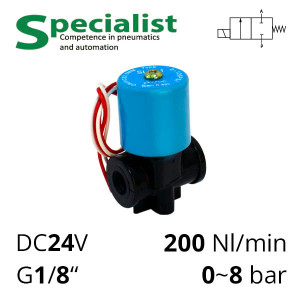

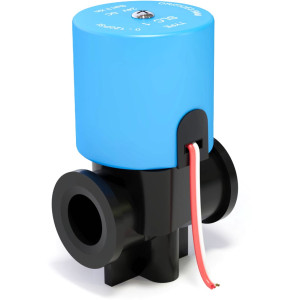

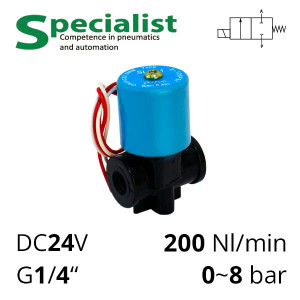

If you are using argon or inert gas mixtures, it is worth buying an FP series gas valve for the semi-automatic machine, as it has several advantages:

• The FP series semi-automatic electromagnetic valve is made from polypropylene, which does not react chemically with welding gases. The industrial plastic is quite durable and impact-resistant, so the body is difficult to damage;
• EDPM material for FP valve seals is more resistant to argon and other protective gas mixtures, compared to NBR which is used in WZ valves;
• The threaded connection is very reliable for high-pressure work.

Apart from gas welding equipment, they are also used for water, beverages, etc.

Check Valve for Gas Welding

The mechanical check valve has a spring mechanism that prevents backflow when the pressure of the supplied gas decreases. In our catalogue, you can find aluminium check valves for the SO-ASC pneumatic series, but they are not specialised for welding!

"Flame arrestor" welding valves work similarly to regular check valves but differ by having additional built-in metallceramic inserts that extinguish the flame and protect from hose, regulator, and cylinder burnout.

Frequently Asked Questions about Semi-Automatic Valves

Which is the best electromagnetic valve for a semi-automatic machine?

For MIG/MAG welding machines, normally closed cut-off electromagnetic valves 2/2 are used. For argon welding, preference should be given to chemically resistant valves with a polymer body and EDPM or KFM seals — for example, SF-FP valves. For carbon dioxide, there are specialised SF-WZ valves for the welding hose.

What to do if the CO₂ valve is hissing?

A hissing sound indicates a leak — the most likely cause is worn valve seals, but it can also be a torn tube, stuck solenoid, or more serious damage. If you hear hissing, stop work immediately and turn off the CO₂ gas supply to prevent poisoning. Check the elements for leaks by supplying air.
