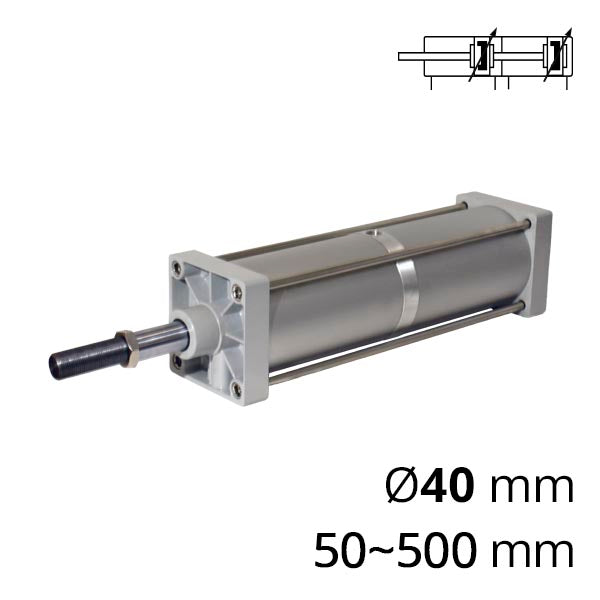

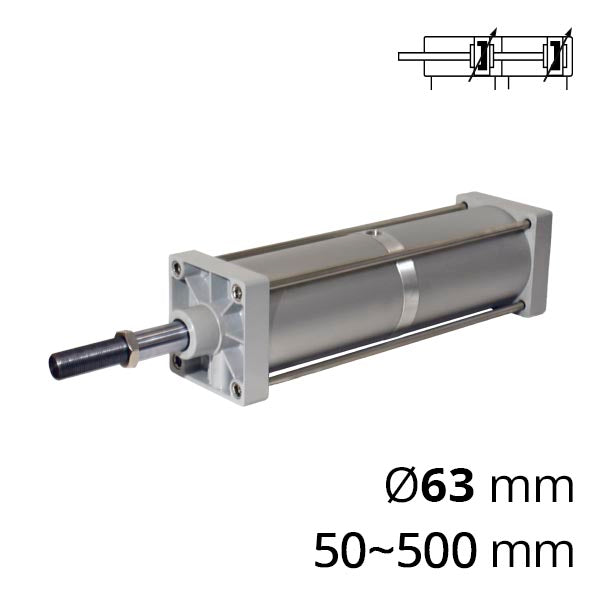

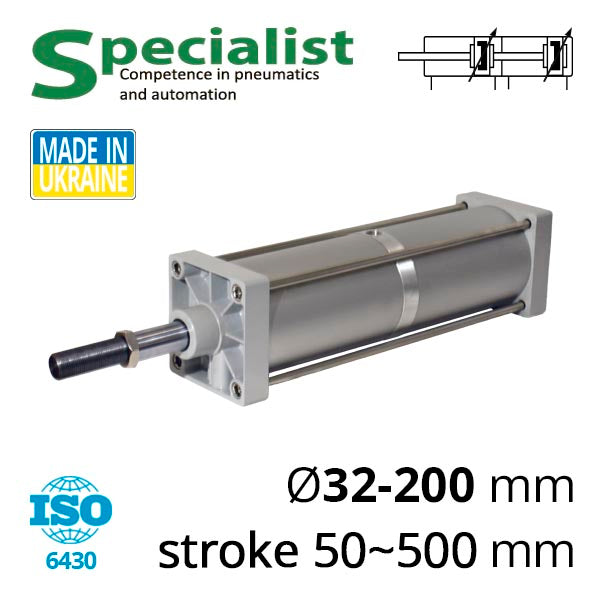

Double-acting power tandem pneumatic cylinder with single-ended piston rod of the SC-SCT series can perform tasks of moving loads or pressing with very high force — up to 43'972 Newtons (Ø200 mm, 9 bar). The force of these cylinders is 1.8 times greater than ordinary ones due to the combined action of two pneumatic pistons. We manufacture air cylinder tandems based on ISO 6430, so they can replace standardized double pneumatic cylinders from other manufacturers.
You can order tandem pneumatic cylinders SC-SCT with a piston diameter of 32 to 320 mm and a piston rod stroke length of 5 to 500 mm. Other sizes are available on request.
The built-in adjustable damper in the cylinder ensures a smooth stop of the piston at the end of the stroke, to absorb the impact force on the front or rear cover. The damping can be adjusted with a special screw to achieve a higher or lower degree of piston braking.
For operation, air must be supplied and released simultaneously to two sections of the pneumatic cylinder: 2 inlets for rod extension, 2 inlets for retraction. A total of 4 ports with identical threads—from G1/8 to 1/2″ (depending on diameter). Permissible compressed air pressure—no more than 12 bar.
| Diameter, mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Action | Double-acting | |||||||||||
| Type | Tandem pneumatic cylinder (double piston) | |||||||||||
| Operating medium | Air (after 40 μm filter) | |||||||||||
| Operating pressure range | 1~9 Bar | |||||||||||
| Max. input pressure | 12 Bar | |||||||||||
| Connection thread | G1/8″ | G1/4″ | G3/8″ | G1/2″ | G3/4″ | |||||||
| Operating temperature range | -10 ~ 70 °C (dry air without moisture) | |||||||||||
| Damping, mm | 20 | 26 | 45 | |||||||||
| Maximum stroke length, mm | 1000 | 1200 | 1500 | |||||||||
| Magnetic sensor type | CS1-F, CS1-U | |||||||||||
| Sensor mount type | SH-32 | SH-40 | SH-50 | SH-63 | SH-80 | SH-10 | SH-125 | SH-160 | SH-200 | |||
