Disc rotary valve DU 200 cast iron intermediate flange with pneumatic drive SCBF-D673

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 200 cast iron intermediate flange with pneumatic drive SCBF-D673

Name: Disc rotary valve DU 200 cast iron intermediate flange with pneumatic drive SCBF-D673
Brand: Specialist
SKU: SCBF-D673-10XEX-200-RAT092
Price: 10949.94 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 10 949,94 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-200-RAT092

Disc rotary valve DU 200 cast iron intermediate flange with pneumatic drive SCBF-D673

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-200-RAT092

10 949,94 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

60 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM, PTFE

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 200

Тип засувки

Disc rotary shutter

Inlet pressure

Ru10 (10 bars)

Тип контролю

With pneumatic drive

Description

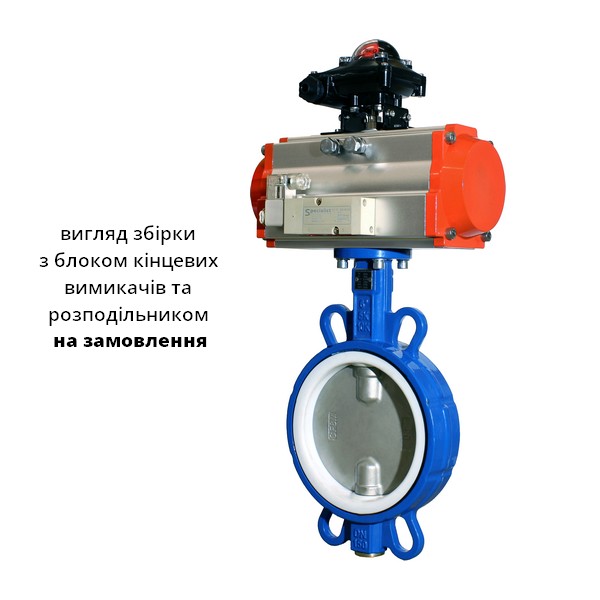

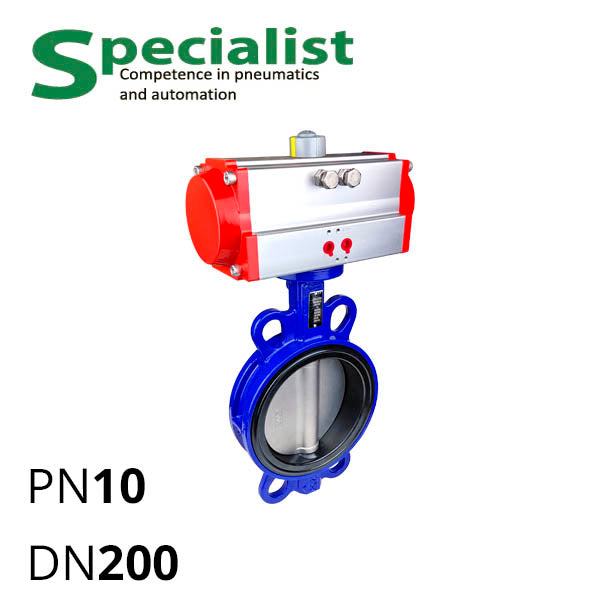

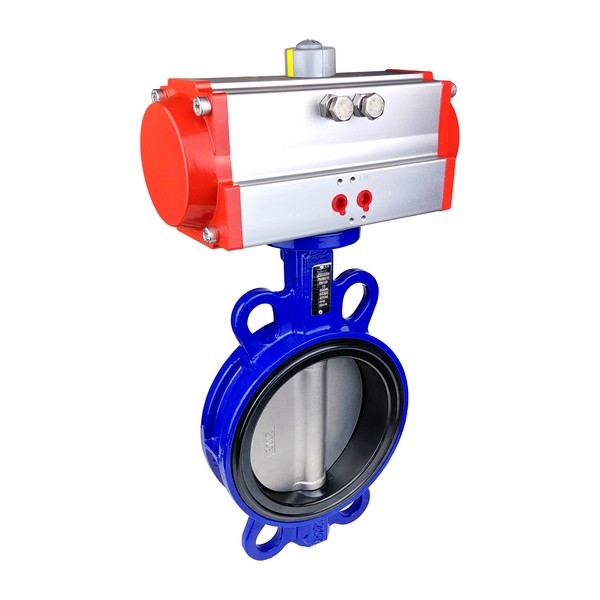

Cast Iron Butterfly Valve SCBF-D673-10XEX-200-RAT092 is an industrial disc butterfly valve PN10 DN 200 with pneumatic actuator for multi-position control of water, other non-aggressive gaseous and liquid substances under pressure, compatible with WCB and EPDM. Our company “Specialist” can manufacture the disc and seat from other materials to ensure the disc valve is compatible with your working environment; rubber coated disc; PN16 made to order.

Table — Specifications of Pneumatically Operated Cast Iron Butterfly Valve SCBF-D673-10XEX-200-RAT092
DN	200 mm
Nominal Pressure	PN10 (PN16 on request)
Body Material	WCB (carbon steel)
Disc Material	WCB
Seal Material	EPDM
EPDM Temperature Resistance	from −30 to 95° C
Mounting Thickness	56 mm
Actuator Model	SC-RAT092
Operation Method SC-RAT092	Double-acting pneumatic actuator
Air Connection	1/4″
Recommended Control Air Pressure	from 6 to 8 bar
Torque SC-RAT092 at 6 bar	136.4 Nm

Besides the Specialist's rotary water/gas valve, you can purchase Namur standard pneumatic distributors 5/2 for pneumatic actuator control, mufflers, fittings, limit switch boxes, positioners.
