Disc rotary valve DU 65 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-65

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 65 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-65

Name: Disc rotary valve DU 65 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-65
Brand: Specialist
SKU: SCBF-D673-10XEX-65
Price: 1051.20 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Диск

WCB

Ущільнення

EDPM

Model

Manufacturer

Specialist

from 1 051,20 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-65

Disc rotary valve DU 65 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-65

Diameter of conditional passage=65 Диск=WCB Ущільнення=EDPM

SCBF-D673-10XEX-65

1 051,20 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

45 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EDPM

Body material

Cast iron WCB

Nominal diameter

TWO 65

Тип засувки

disc rotary shutter

Nominal diameter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

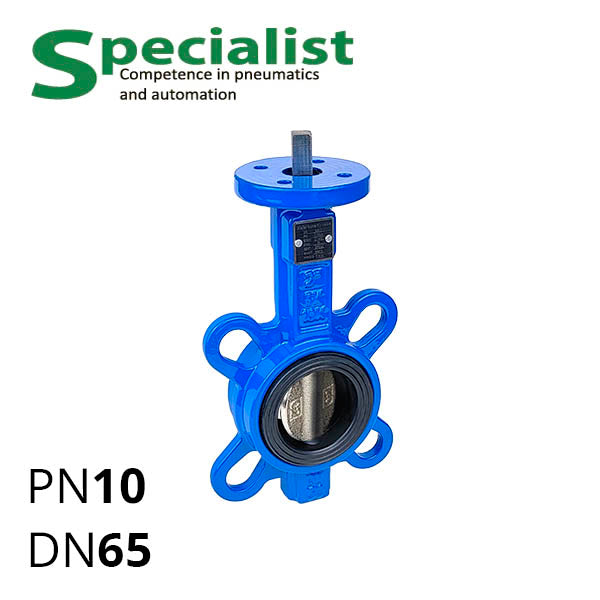

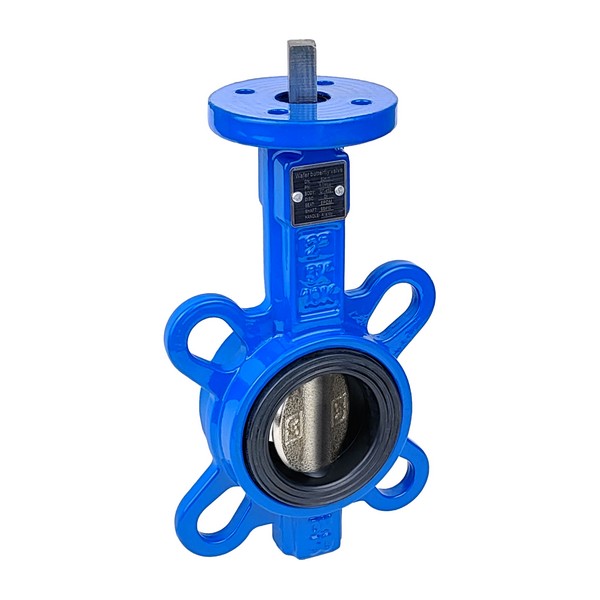

Industrial Wafer Butterfly Valve Cast Iron Series SCBF-D673-10XEX-65 is a non-dismantling butterfly valve "butterfly" with a body and disc made of cast carbon steel WCB, which, unlike grey and ductile iron, can operate under high pressure and has better thermal resistance. Nominal pipe size DN 65 mm. Supplied with standardised platform for pneumatic, electric actuator or handle size F05.

These cast iron wafer butterfly valves DN 65 are shut-off and control pipeline fittings — they can be used both in open/close mode and intermediate positions to regulate volume of non-aggressive gases, air, water, liquids with low alkali concentration and limited small amount of acids. The working medium should be checked for compatibility with WCB and EPDM. Permissible working pressure (by default) — PN up to 10 bar.

Table — Main Parameters of Wafer Butterfly Valve SCBF-D673-10XEX-65
DN	65 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB according to ASTM A216
Disc Material	WCB according to ASTM A216
Seal Material	EPDM
Working Temperature	from −30 to 95° C
Drive Platform ISO 5211	F05
Shaft Output	square 9 mm
Recommended Actuator Torque	not less than 29 N⋅m
Installation Thickness	45 mm

Our company Specialist (Ukraine) also supplies DN65 valves with customer-ordered materials and installed actuators (handles, pneumatic and electric drives with position control.
