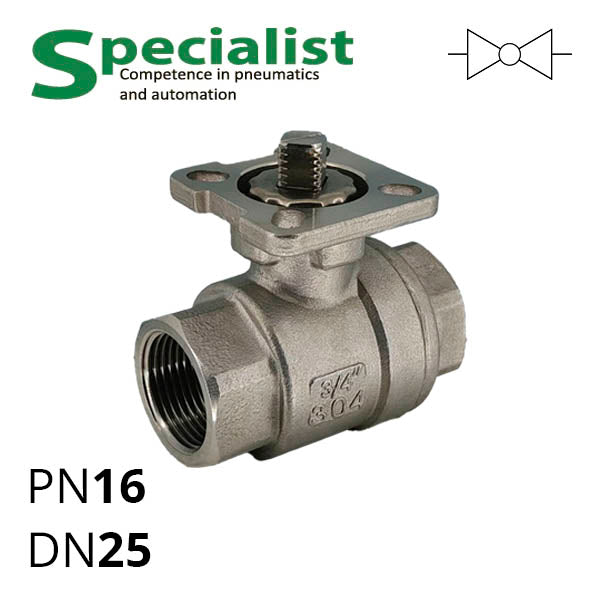

Ball valve 1″ stainless DN25 PN16 two-way two-fold SCBV-Q610F-16FC-25

Name: Ball valve 1″ stainless DN25 PN16 two-way two-fold SCBV-Q610F-16FC-25
Brand: Specialist
SKU: SCBV-Q610F-16FC-25
Price: 1718.10 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Thread size

G 1

Model

SCBV-Q610F-16FC-25

Manufacturer

Specialist

from 1 718,10 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Download PDF catalog

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBV-Q610F-16FC-32

Ball valve 1″ stainless DN25 PN16 two-way two-fold SCBV-Q610F-16FC-25

Diameter of conditional passage=25 Thread size=G 1

SCBV-Q610F-16FC-32

1 718,10 UAH

In Stock

Technical specifications

Connection type

With internal thread

Thread

G 1"

Матеріал диску

SS304 stainless steel, SS316 stainless steel

Матеріал ущільнення

PTFE

Body material

Steel WCB

Nominal diameter

TWO 25

Тип засувки

ball valve

Nominal diameter

Inlet pressure

Ru16 (16 bars)

Тип контролю

drive platform

Description

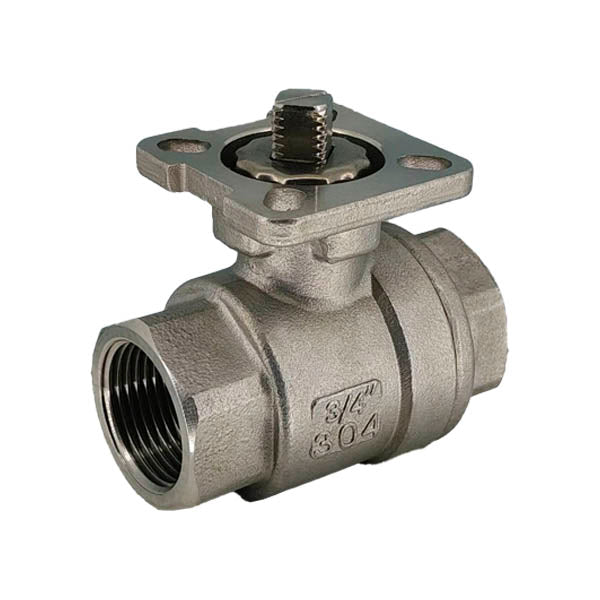

Two-piece two-way ball valves with threaded 1″ from the series SCBV-Q610F-16FC-25 stainless steel with PTFE seals are used for pipes DN 25 mm. Designed for controlling and shutting off the working medium — air, water, gas, oil, chemical and food products, and other substances compatible with the valve's materials. The two-piece ball valve DN25 has internal threaded connections 1 inch on both sides, as well as a built-in universal platform for a handle, electric, or pneumatic actuator.

Table — Main Characteristics of Threaded Stainless Steel Ball Valves SCBV-Q610F-16FC-25
Nominal Diameter	DN 25
Thread	1 inch
Seals and Operating Temperatures	PTFE -40…180 °C
Max. Operating Pressure	16 bar (or on order 25, 40 or 64 bar)
Working Medium	Air, water, gas, oil, chemical products, and other materials compatible with the valve's materials

Main Components of the Ball Valve SCBV-Q610F-16FC-25

List of components of the ball valve SCBV-Q610F-16FC-25 provided as an example of similar 3-piece ball valves from the Q611 series (illustration below). For 2-piece ball valves SCBV-Q610F-16FC-25 the same materials are used for the components.

Components of Ball Valve with Pneumatic Actuator

Table — Material of Components for 2-Piece 2-Way Ball Valve
No.	Name	Material
No.	Name	C (default)	P (on order)
1	Bolt	Stainless Steel 304	Stainless Steel 304
2	Flange*	Common Cast Steel WCB	Stainless Steel CF8, CF6M
3	Seal	PTFE	PTFE
4	Ball	Stainless Steel 304	Stainless Steel 316
5	Body	Common Cast Steel WCB	Stainless Steel CF8, CF6M
6	Nut	Stainless Steel 304	Stainless Steel 304
7	Shaft	Stainless Steel 304	Stainless Steel 316
8	Gasket	PTFE	PTFE
9	Seal	PTFE	PTFE
10	Nut	Stainless Steel 304	Stainless Steel 316
11	Bracket	Stainless Steel CF8	Stainless Steel CF8
12	Adapter	Stainless Steel 304	Stainless Steel 304
13	Bolt	Stainless Steel 304	Stainless Steel 304
14	Pneumatic or Electric Actuator (ordered separately)
15	Angle Rotation Indicator
