Disc rotary valve DU 80 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-80

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary valve DU 80 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-80

Name: Disc rotary valve DU 80 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-80
Brand: Specialist
SKU: SCBF-D673-10XEX-80
Price: 1207.56 UAH
Availability: InStock

In Stock

Diameter of conditional passage

Диск

WCB

Ущільнення

EDPM

Model

Manufacturer

Specialist

from 1 207,56 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-80

Disc rotary valve DU 80 cast iron inter-flange non-dismountable series SCBF-D673-10XEX-80

Diameter of conditional passage=80 Диск=WCB Ущільнення=EDPM

SCBF-D673-10XEX-80

1 207,56 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

46 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EDPM

Body material

Cast iron WCB

Nominal diameter

TWO 80

Тип засувки

disc rotary shutter

Nominal diameter

Inlet pressure

Ru10 (10 bars)

Тип контролю

Drive-in site

Description

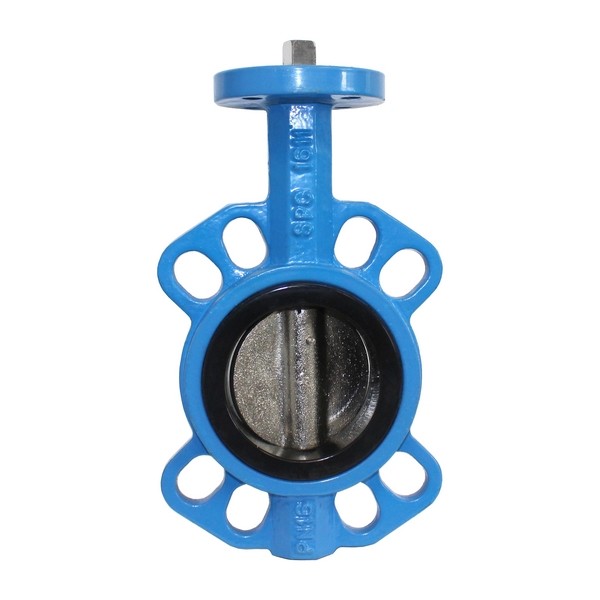

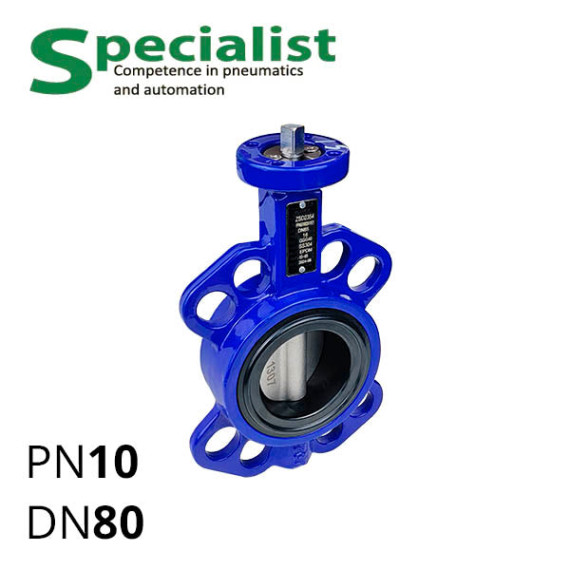

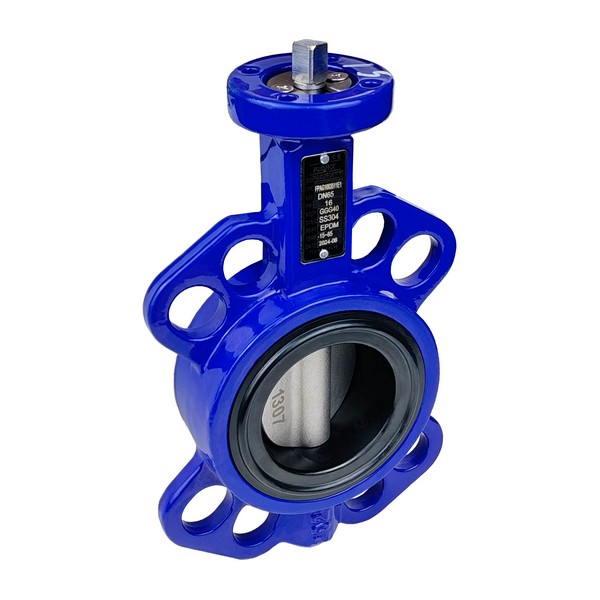

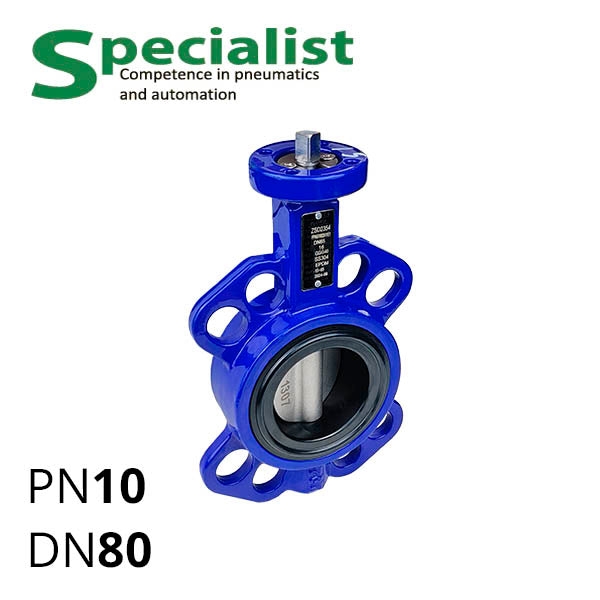

The SCBF-D673-10XEX-80 cast iron wafer butterfly valve is a non-dismantlable 'butterfly', with body and disc made from cast carbon steel WCB, unlike grey and ductile iron, can withstand high pressure and provides better heat resistance. Nominal pipe size DN 80 mm. Supplied with a standardised platform for mounting pneumatic, electrical drives, or handles in size F05.

These DN 80 cast-iron wafer butterfly valves are both shut-off and regulating pipeline fittings — suitable for 'open/close' operations as well as intermediate positioning to regulate the volume of non-aggressive gases, air, water, low concentration alkaline liquids and limited amounts of acids. Check compatibility of the working medium with WCB and EPDM. Allowable working pressure (default) - PN up to 10 bar.

Table — Main Parameters of the Wafer Butterfly Valve SCBF-D673-10XEX-80
DN	80 mm
Nominal Pressure	PN 10 bar (1 MPa)
Body Material	WCB to ASTM A216
Disc Material	WCB to ASTM A216
Seal Material	EPDM
Working Temperature	from −30 to 95° C
Drive Platform ISO 5211	F05
Shaft Output	Square 9 mm
Recommended Drive Torque	not less than 42 N⋅m
Mounting Thickness	46 mm

Our company Specialist (Ukraine) also supplies DN80 valves with materials as per customer's request and installed drives (handles, pneumatic and electric position-controlled drives).
