Disc rotary latch DU 100 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Do you have any questions about the product?
We will be happy to answer them in messengers

Disc rotary latch DU 100 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Name: Disc rotary latch DU 100 cast iron inter-flange non-dismountable with handle SCBF-D673 series
Brand: Specialist
SKU: SCBF-D673-10XEX-100-H
Price: 2138.16 UAH
Availability: InStock

In Stock

Диск

WCB

Ущільнення

EPDM

Model

Manufacturer

Specialist

from 2 138,16 UAH

Qty:

Do you have any questions about the product?
We will be happy to answer them in messengers

Delivery of goods

More details

New Post Office and address

≈ 250 UAH / Free for orders over 5,000 UAH

2-4 days

By courier in Ukraine

≈ 350 UAH / Free for orders over 5,000 UAH

1-2 days

Pickup from our warehouse

Free

Today, after 2:00 PM

Payment

More details

Models

Found 1 variants


Name

Model Price Availability Qty

Action

SCBF-D673-10XEX-100-H

Disc rotary latch DU 100 cast iron inter-flange non-dismountable with handle SCBF-D673 series

Диск=WCB Ущільнення=EPDM

SCBF-D673-10XEX-100-H

2 138,16 UAH

In Stock

Technical specifications

Connection type

Inter-flange

Installation length

52 mm

Диск

WCB

Матеріал диску

Cast iron WCB

Матеріал ущільнення

EPDM

Ущільнення

EPDM

Body material

Cast iron WCB

Nominal diameter

TWO 100

Тип засувки

disc rotary shutter

Inlet pressure

Rooster (10 bars)

Тип контролю

Handled

Description

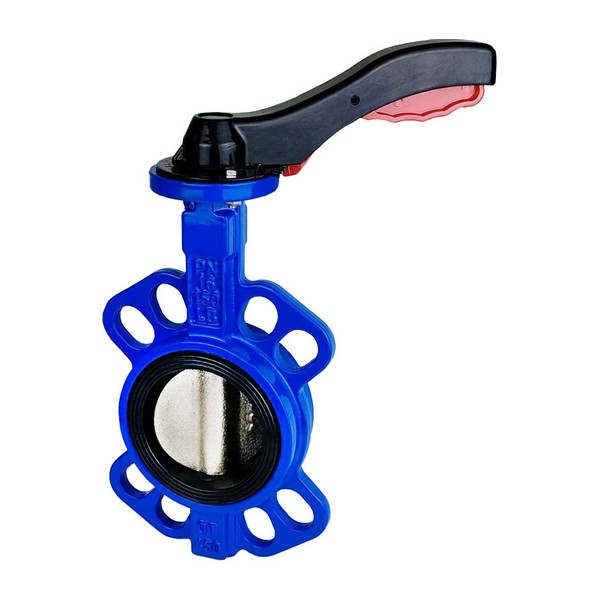

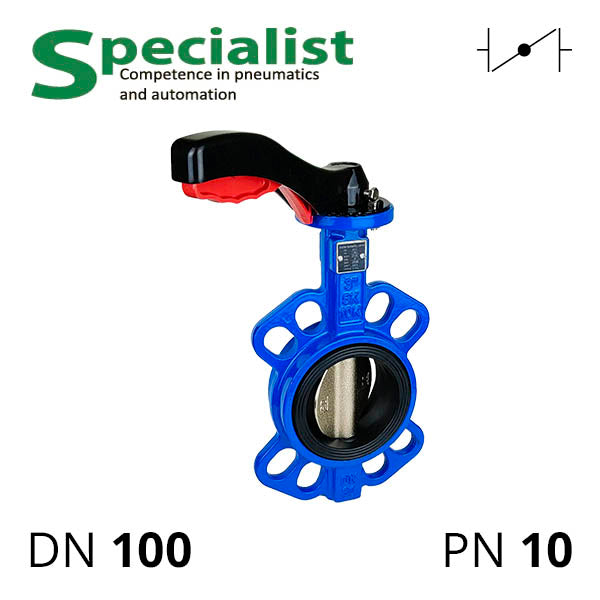

The cast iron manual valve model SCBF-D673-10XEX-100-H is a regulated butterfly type rotary disc valve PN 10 DN100 with a cast steel body and WCB disc, EPDM sealing. Unlike grey and ductile iron, butterfly valves with WCB can operate under pressure and with hot water, non-aggressive gases and liquids, weak alkalis, and most organic acids. The working environment is checked for compatibility with WCB and EPDM.

The included handle features an anti-rotation mechanism and a stop in 10 intermediate positions of the valve DN100 SCBF-D673-10XEX-100-H for throttling and regulating flow through the pipeline.

Table — Key Specifications of Cast Iron Rotary Disc Valve SCBF-D673-10XEX-100-H
Nominal Diameter	DN100 (100 mm)
Nominal Pressure	PN10 (1 MPa, 10 bar)
Body Material	Cast Iron WCB (cast carbon steel)
Disc Material	Cast Iron WCB
Sealing Material	EPDM
Supported Temperature	from −30 to 95° C
Control Type	Manual Control
Installation Thickness	52 mm

This manual cast iron disc valve is installed on a pipe with a nominal diameter of 100 millimetres between pre-welded collar flanges ISO 7005-1 (EN 1092-2). The body features lugs with holes ("ears") for centring the rotary valve between the flanges.

The manual drive can be replaced with a pneumatic or electric one. On request, we supply this type of damper with PN16.
